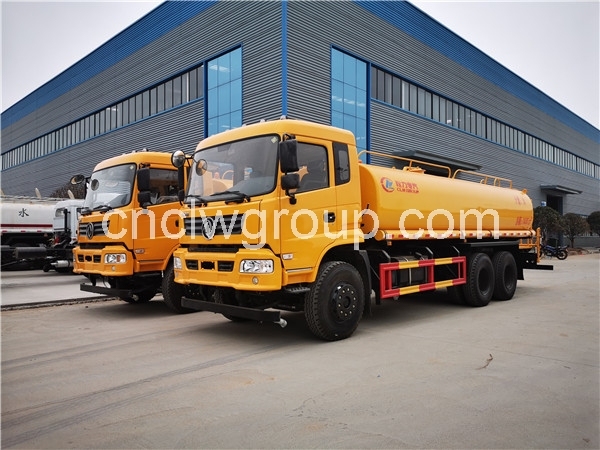

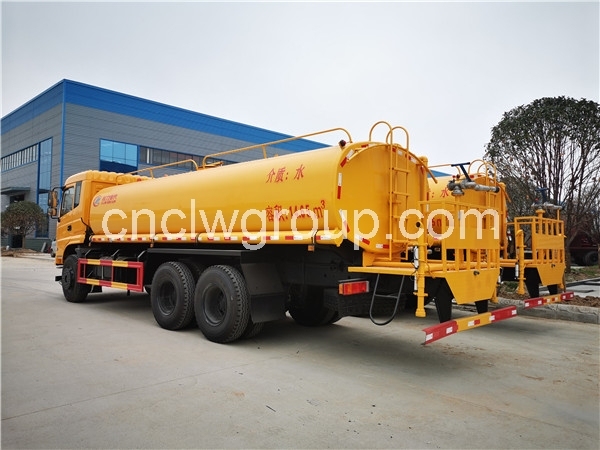

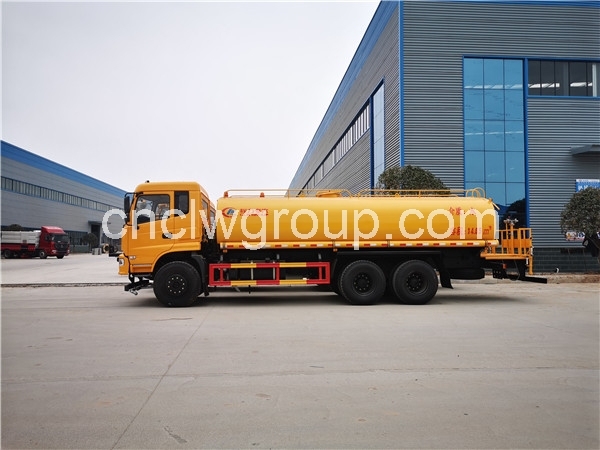

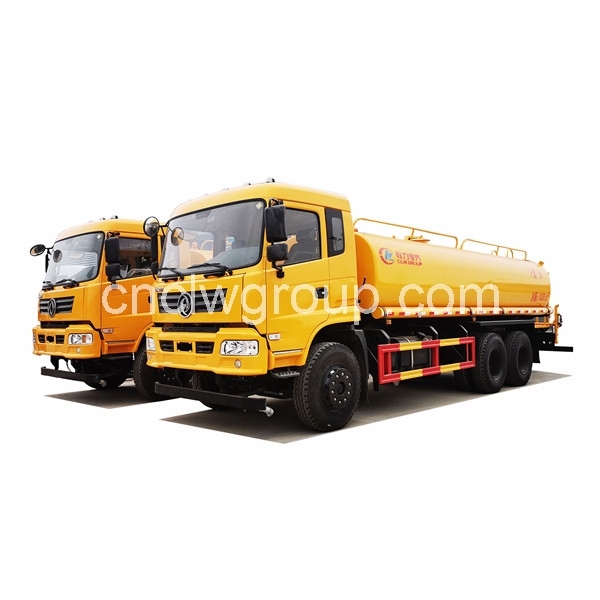

Dongfeng 6x4 20,000 liter Water Truck

- Dongefeng 6x4 20,000 liter water truck
- YUCHAI 240HP Euro 3 engine
- 10.00-20 radial tires
- 20,000 liter carbon steel tank body
- With water pump,front/rear sprayer nozzles/with discharge valves

【Chassis Parameters】

Dongfeng 153 cab  chassis, 6x4, condition new, single cab, 3 seats with a sleeper, 4350+1350mm wheelbase, Yuchai 240HP Euro 3 dieseI engine, manual 9-speed transmission with transfer case, 10.00-20 radial tires, with one spare tire, 5 ton front axle, 2x10 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 20,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 60m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;


Model CLW5250GSSD3
Chassis brand Dongfeng
Wheeldrive 6x4, LHD
New or Used New
Overall dimension 9980x2500x3250mm
Gross weight 25000kg
Curb weight 9800kg
Load 20 tons
Wheelbase 4350+1350mm
Engine power Yuchai 240HP Euro3
Fuel type DieseI

Manual, 9-speed gearbox

Brake air brake
Axle load 5/2x 10 Tons
Tire 10+1 pcs, 10.00-20 radial tires
Max speed 90km/h


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
