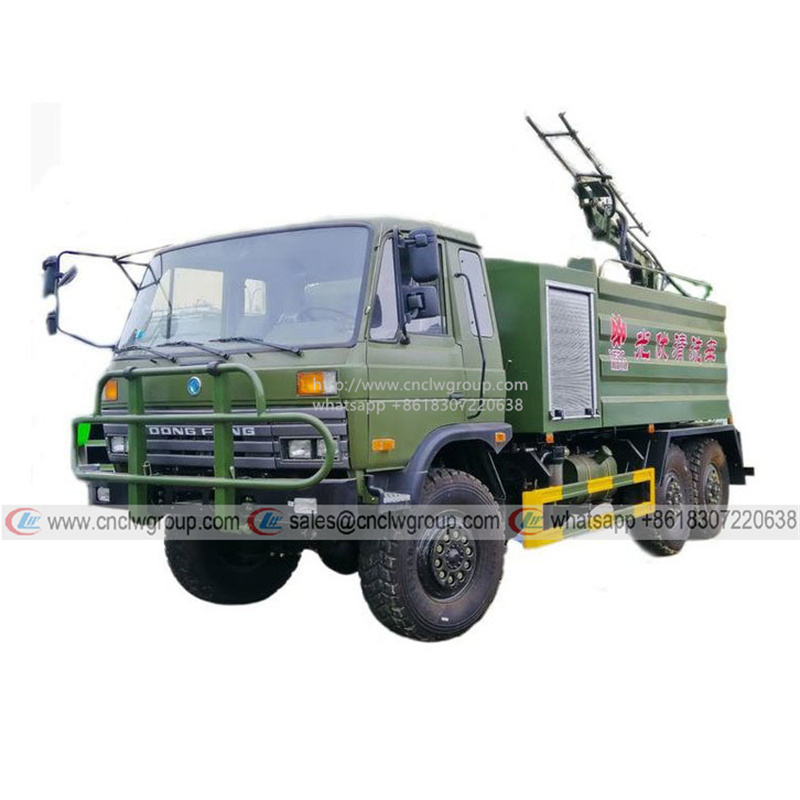

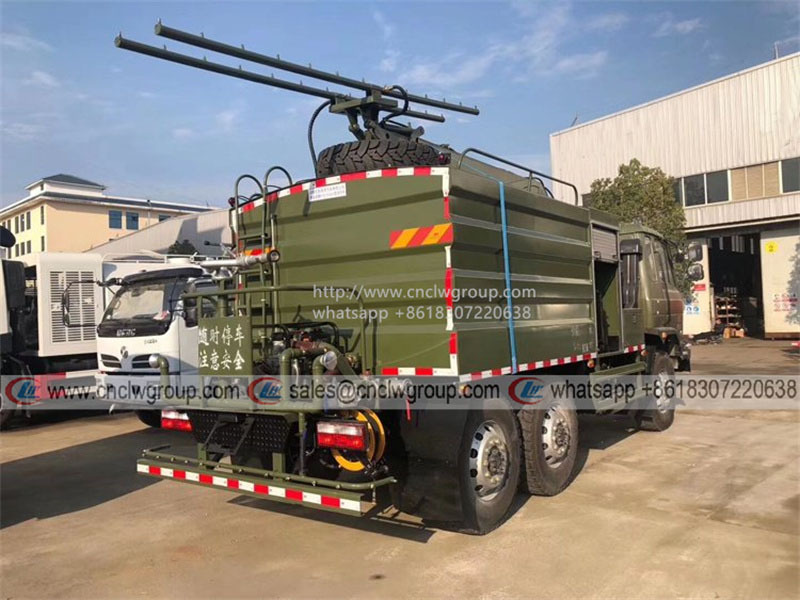

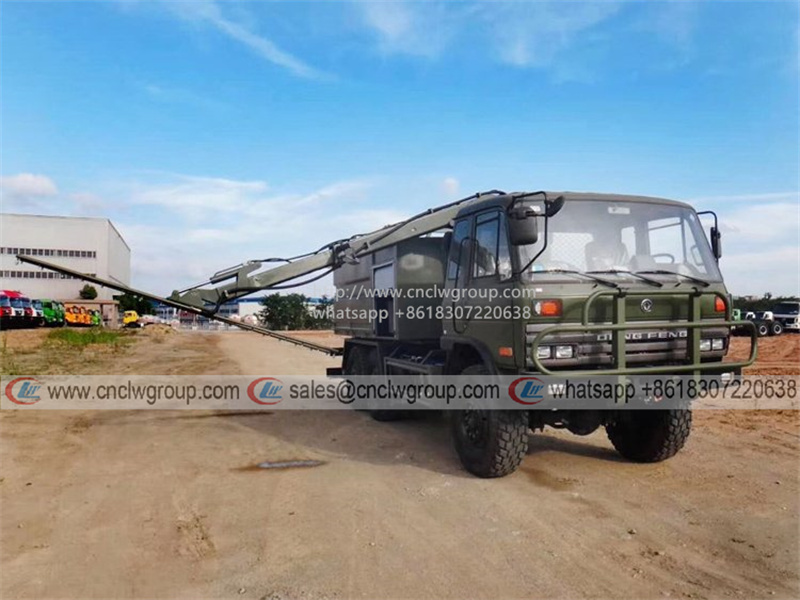

Dongfeng 6x6 AWD solar panel washing Photovoltaic panel cleaner truck

- Chassis brand:Dongfeng 6x6
- Purpose:clean solar Photovoltaic panel
- Cleaning capacity:25000m2/h
- Sprayer Clean width:5-9m
- Engine:Cummins 210HP
- Whatsapp/wechat:+8618307220638
- Email:[email protected]
- Http://www.cnclwgroup.com
Description
Description

6x6 (Six-wheel drive) off-road solar photovoltaic panel cleaning truck is a professional cleaning equipment designed, developed and manufactured by our company according to the special environment of country's desert photovoltaic power plants. The main equipment is composed of six systems: chassis walking system, power system, hydraulic system, remote control system, cleaning arm system, and cleaning spray system. The cleaning function of the solar panel can be completed at one time, saving a lot of labor and water, saving time and effort. All functions of this car are completed in the cab and on the washing arm. It only needs two people, one to drive, and one to operate in the co-pilot position or on the washing arm to complete all functions. There is a high-definition large-screen image in front of the operator. , the operation is simple and convenient.

【Chassis Parameters】

Dongfeng 6x6 AWD solar panel washing Photovoltaic panel cleaner truck adapts Dongfeng EQ153 6x6 off road cab chassis, flat roof cabin, condition new, 3 seats with a sleeper, 3500+1250mm wheelbase, Cummins 210HP Euro3 or Euro6 dieseI engine, manual 6-speed transmission, 6+1 pcs 12R22.5 radial tires, with one spare tire, 2.5 ton front axle, 2 x 5 ton rear axle, air brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】

Superstructure of Dongfeng 6x6 AWD solar panel washing Photovoltaic panel cleaner truck

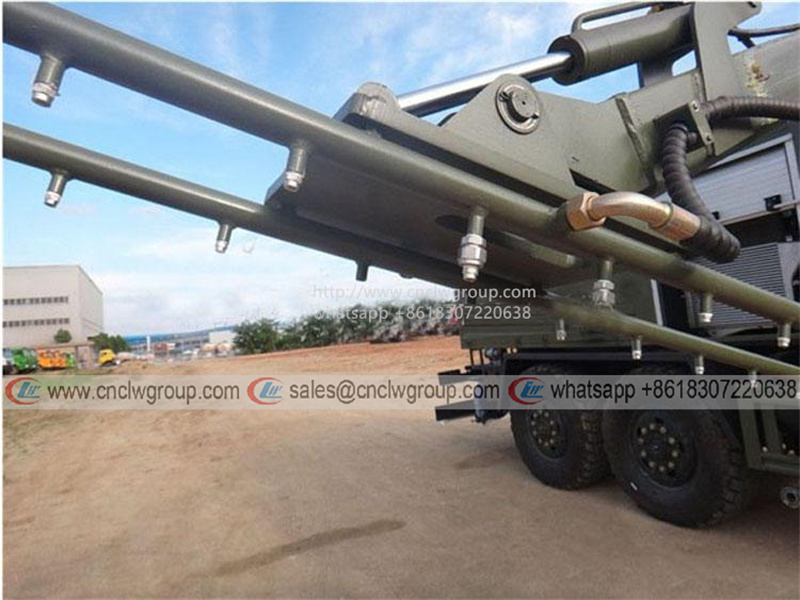

- Cleaning boom and sprinkler rack, cleaning width 5-9 meter, boom lifting range 0-7 meter, slewing angle 360°.

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

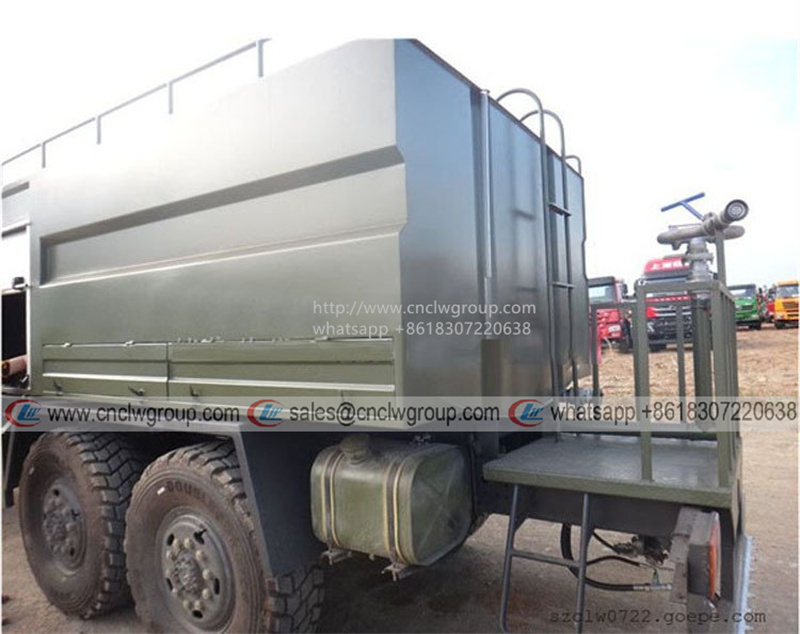

- 8,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 60m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;
Specifications oDongfeng 6x6 AWD solar panel washing Photovoltaic panel cleaner truck:

Vehicle Parameters Model CLW5160GSSD5
New or Used New
Overall dimension 8250x2500x3750mm
Gross weight 16000 kg
Curb weight 8500 kg
Chassis Parameters Chassis brand Dongfeng
Wheelbase 3500+1250 mm
Engine power Cummins 210HP
Cab 153 cabin, 3 seats wiht a sleeper, with A/C
Transmission Manual, 6-speed forward and 1 reversing
Front Axle 2.5 Ton
Rear Axle 5 ton / 5 ton
Brake  Air brake
Tire 6+1 pcs, 12R22.5
Max speed 90km/h
Engine Brand

Cummins

Power 155kW/210HP
Displacement 5.9 L
Emission standard Euro5
Superstructure Tank volume 8,000 liter
Tank material Carbon steel with anti-corrosion treatment
Front spraying 2 pcs nozzles, manual or auto controlled
Rear spraying 2 pcs nozzles, manual or auto controlled
Side spraying 2 pcs nozzles, manual or auto controlled
Water cannon 1 pcs, 360° slewing, shot 28-35 meters
Shot of spraying nozzle 12 - 16 meters
Valve 2 pcs, discharge valve + fire hydrant joint
Power System Auxiliary diesel engine to drive hydraulic pump and high pressure water pump
Hydraulic System Rated pressure:4-12MPa
Flow: 40L/min
Cleaning Speed 3-20km/h
Cleaning Boom System
Cleaning Boom Slewing 360 degree
Boom Lifting Range 0 - 7 meter
Boom Max. Folding Range 120 degree
Cleaning Wash Up Down Angle 180 degree
Cleaning Width 5-9 meter


What is Solar Photovoltaic Panel Cleaning Truck and What is the classification?
Solar photovoltaic panel cleaning trucks are mainly used for solar panel cleaning and maintenance in solar power plants. The products include: tractor photovoltaic panel cleaning vehicles, four-wheel drive photovoltaic panel cleaning vehicles, six-wheel drive photovoltaic panel cleaning vehicles, crawler photovoltaic panel cleaning vehicles, Dongfeng photovoltaic panel cleaning vehicles Cleaning vehicle, Isuzu photovoltaic panel cleaning vehicle, front photovoltaic panel cleaning vehicle, solar power photovoltaic panel cleaning vehicle, Foton photovoltaic panel cleaning vehicle, photovoltaic panel cleaning special vehicle, photovoltaic panel cleaning sprinkler, Sinotruk Howo photovoltaic panel cleaning vehicle, Photovoltaic modules, photovoltaic panels, cleaning vehicles, etc. It is mainly composed of tank body, boom, auxiliary engine, water pump, nozzle, water tank, and roller brush. The boom can be rotated, retracted and folded 180 degrees, and all operations are completed in the cab.

Traditional Manual Cleaning Method of Solar Panel Photovoltaic panels:
1. Low efficiency, low cost;
2. labor-intensive and unsafe;
3. Poor cleaning effect, difficult maintenance;

Solar Photovoltaic Panel Cleaning Truck Cleaning Method of Solar Panel Photovoltaic panels:
1. High efficiency, low cost;
2. Manpower saving, easy maintenance, Not affected by weather
3. High pressure cleaning, much cleaner than manpower.
4. Water saving.
