Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tanker truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc. Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.
【Chassis Parameters】
Cab chassis of Dongfeng 6x6 water tanker sprinkler truck, condition new, 3 seats with a sleeper, 3500+1250mm wheelbase, 190HP Euro 3 dieseI engine, manual 6-speed transmission, with Pneumatic Mechanical Transfer Case, 6+1 pcs 12R22.5 offroad tires, with one spare tire, hydraulic spare tire rack, 4.1 ton front axle, 2x 5 ton rear axle, military chassis ladder beam, 350L fuel tank, rear beam with towing trailer devices, air brake, air conditioning, power assist steering, etc.
【Upper Structure Parameters】
Superstructure of Dongfeng 6x6 water tanker sprinkler truck:
- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;
- 12000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;
- with 60m3/h flow water pump;
- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;
Specifications of Dongfeng 9450 liter water sprinkler truck tank lorry:
Product Model | CLW5140GSSD3 6x6 water sprinkler truck |
New or Used | 6x6 offroad, New |
Overall dimension | 7850x2500x3100mm |
Gross weight | 14000kg |
Curb weight | 7800kg |
Chassis brand | Dongfeng 6x6 offroad |
Wheelbase | 3500+1250mm |
Cab | Flat roof, 3 seats with a sleeper, air conditioning(optional) |
Transmission | Manual, 6-speed forward and 1 reversing |
Transfer case | Pneumatic mechanical transfer case |
Front Axle | 4.1 ton |
Rear Axle | 2x 5 ton |
Brake | Air brake, exhaust brake, wheel compression brake |
Tire | 6+1 pcs, 12R22.5 radial tire |
Max speed | 90km/h |
Engine | Cummins |
Power | 190HP |
Displacement | 5900cc |
Emission standard | Euro 3 |
Tank volume | 9450 liter |
Tank material | Carbon steel with anti-corrosion treatment |
Front spraying | 2 pcs nozzles, manual or auto controlled |
Rear spraying | 2 pcs nozzles, manual or auto controlled |
Side spraying | 2 pcs nozzles, manual or auto controlled |
Water cannon | 1 pcs, 360° slewing, shot 28-35 meters |
Shot of spraying nozzle | 12 - 16 meters |
Valve | 2 pcs, discharge valve + fire hydrant joint |

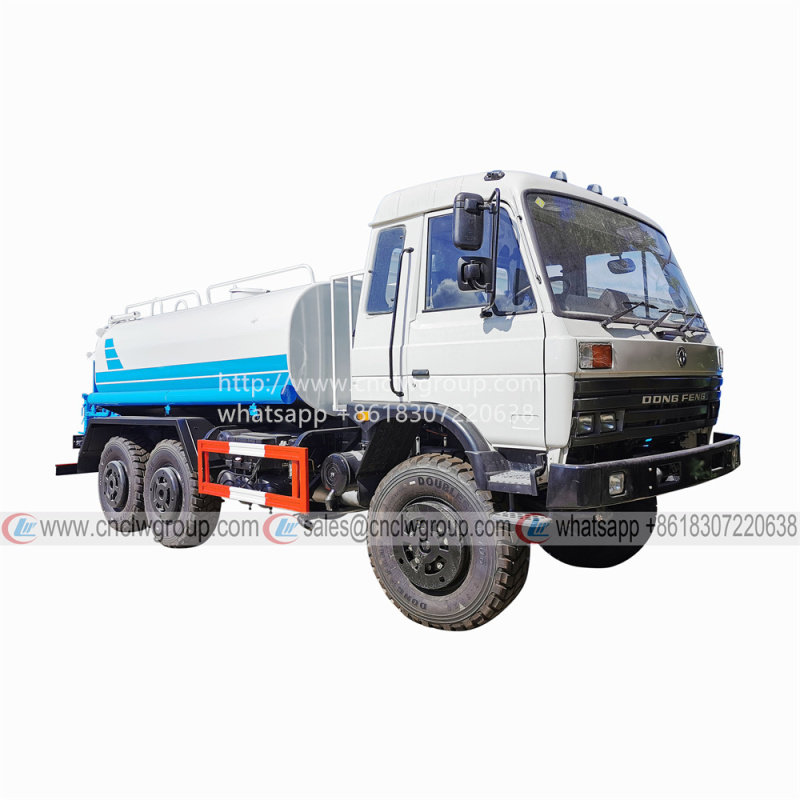

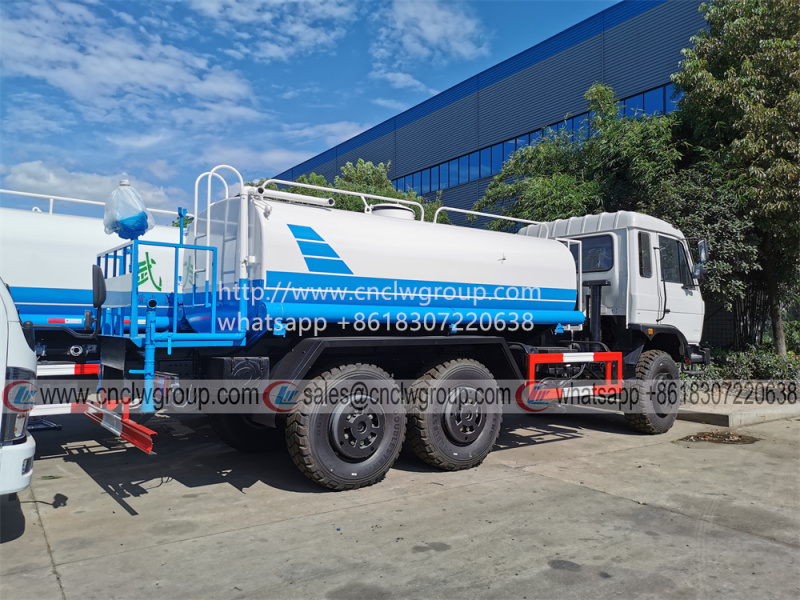

[Multi-directional Images of Dongfeng 6x6 Water Sprinkler Truck]
Dongfeng 6x6 water tanker sprinkler truck
Dongfeng 6x6 water tanker sprinkler truck
Dongfeng 6x6 water tanker sprinkler truck
Description of Dongfeng 6x6 water tanker sprinkler truck
Structures of Dongfeng 6x6 water tanker sprinkler truck:
Manufacture progress of Dongfeng 6x6 water tanker sprinkler truck:
Packing and shipping method of Dongfeng 6x6 water tanker sprinkler truck:
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
