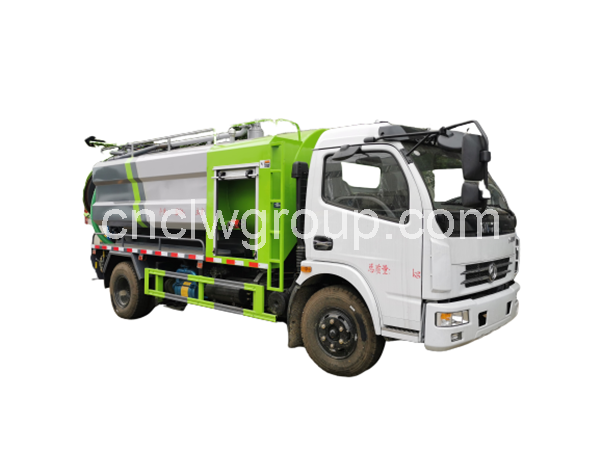

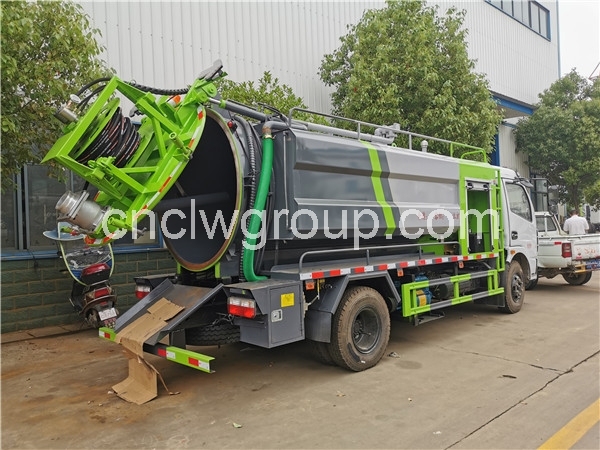

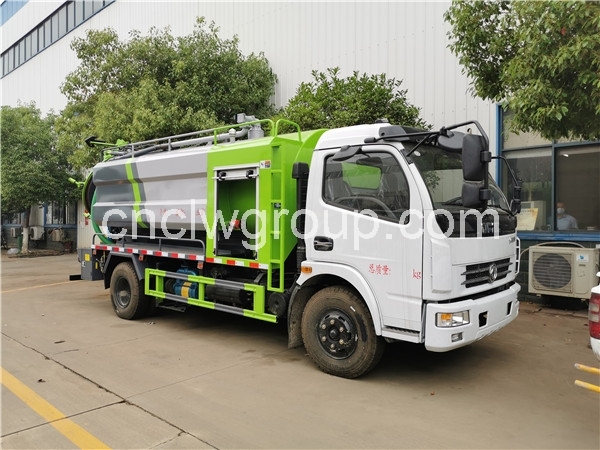

Dongfeng 7.5cbm Sewer Jetter Vacuum Septic Truck

- Dongfeng Dolicar sewage suction truck
- Yudong 129HP engine
- 5-speed transmission
- 8.25-16 nylon tire
- Sewage tank: 5000 liters,  Clean Water tank: 2500 liters
- Sewage pump: 6m3/h vacuum sewage pump
- Water pump: 22MPa high pressure pump
Description
Description

【Chassis Parameters】

Dongfeng Dolicar chassis, condition new, 3800mm wheelbase, Yudong 129HP Euro3 dieseI engine, 5-speed transmission, 8.25-16 nylon tires, with one spare tire, 2.5 ton front axle, 5.5 ton rear axle, air brake, power assist steering, etc.

- Dongfeng Dolicar sewage suction truck

- Yudong 129HP engine

- 5-speed transmission

- 8.25-16 nylon tire

- Sewage tank: 5000 liters,  Clean Water tank: 2500 liters

- Sewage pump: 6m3/h vacuum sewage pump

- Water pump: 22MPa high pressure pump



【Upper Structure Parameters】

- Sewage tank volume: 5000 liter, box body is made of carbon steel, 5mm tank body, 6mm sea head

- Water tank volume: 2500 liter, carbon steel, 4mm tank body.

- Sewage pump: SK-6 vacuum pump

- Water pump: German jointed venture PINFL 22MPa high pressure pump

- High pressure hose reel: 60m hose reel with high pressure cleaning nozzle

- Others: tank hydraulic lifting rear dump, with a DN150mm discharge valve at rear, hydraulic open tailgate, with a 8m suction hose, with tank level view-window, etc



Model CLW5090GQWD3
Chassis brand Dongfeng
New or Used New
Overall dimension 6995x2350x2890mm
Gross weight 9850kg
Curb weight 5580kg
Load 8 tons
Wheelbase 3800mm
Engine power Yudong 129HP Euro3
Fuel type DieseI
Transmission Manual, 5-speed
Brake air brake
Axle load 2.5 tons / 5.5 tons
Tire 6+1 pcs, 8.25-16 nylon tires
Max speed 90km/h
Sewage Tank Tank Volume 5000 liter
Material 5mm carbon steel tank body, 6mm seal head
Tailgate Hydraulic opening
Sewage Suction System
Sewage pump

Yifeng SK-6 vacuum pump

6m3/h, 1000rpm rotary, 95% vacuum

Suction Hose 1 pcs suction hose, 7 meters long
Suction depth ≤ 7 meters
Clean Water Tank
Volume 2500 liters
Material Carbon steel tank with anti-corrosion treatment
Inlet with 1 pcs fire hydrant joints
Drain outlet 1 pcs

Pipe Dredge & Cleaning System

Cleaning Pump German PINFL 24MPa high pressure
Hoser reel 60m high pressure hose reel
Cleaning nozzle with 10 pcs high pressure cleaning nozzles
Cleaning pipe diameter pipe or sewer DN100 ~ DN1000



Main Components


Tank unloading Hydraulic rear dumping
Discharge valve 1 pcs DN150mm aluminum alloy outlet
Level view-window 1 pcs
Oil & water separator Included
Anti-overflow valve Included
Wash hand tank 1 pcs
Performance
Max suction depth 7 meters
Suction full-tank time ≤ 10 minutes
Positive pressure pump water time ≤ 5 minutes
Pipe dredge & cleaning diameter DN100 ~ DN1000



【Job Scenes of Vacuum Sewage Truck】



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
