【Chassis Parameters】

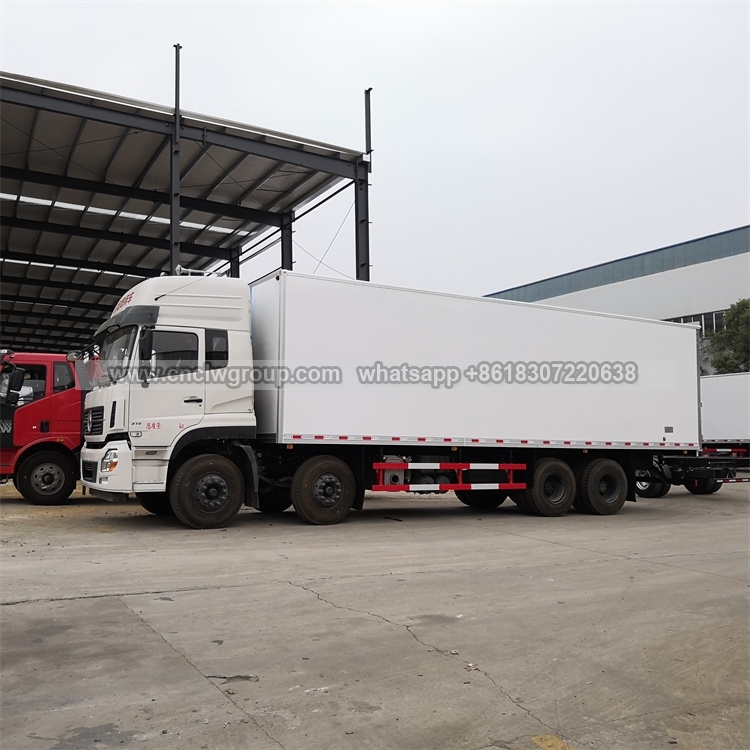

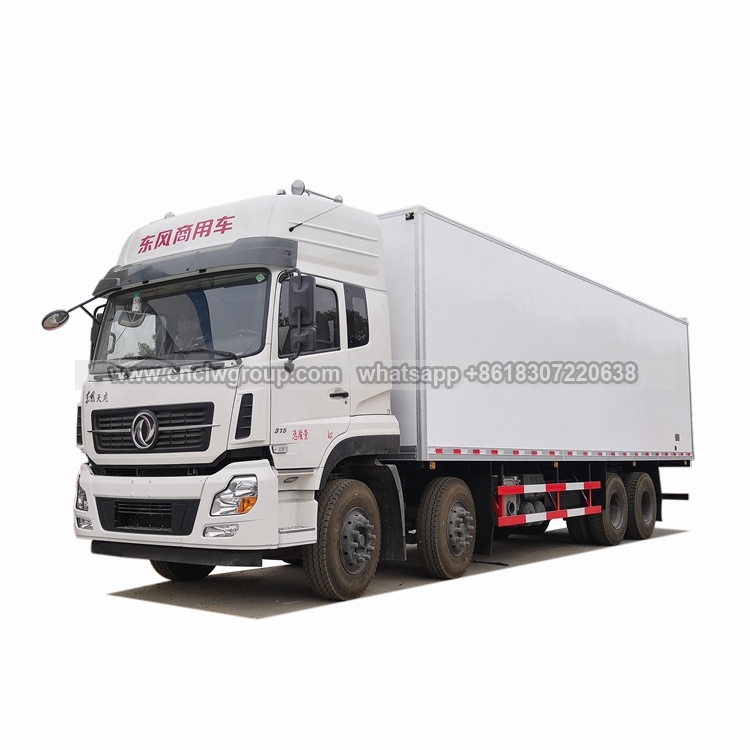

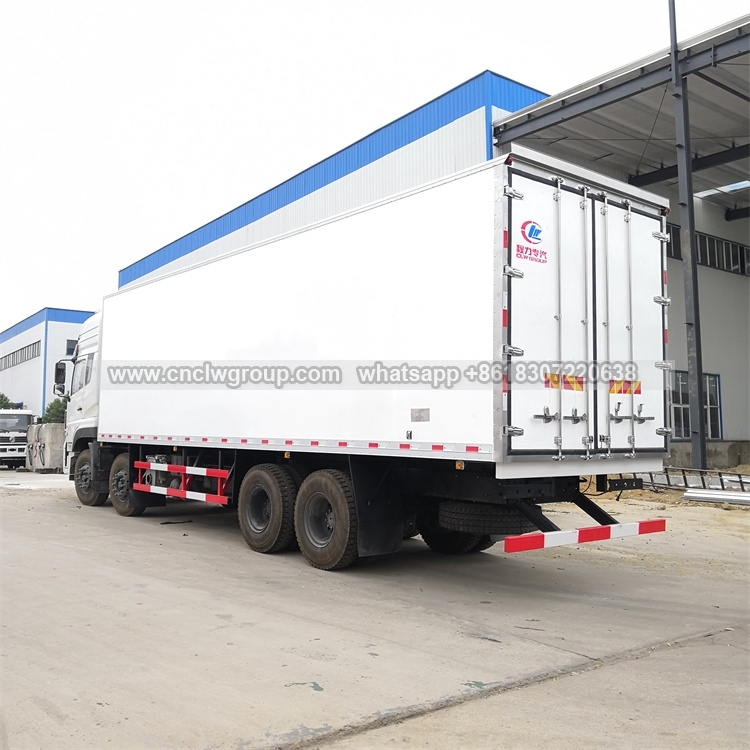

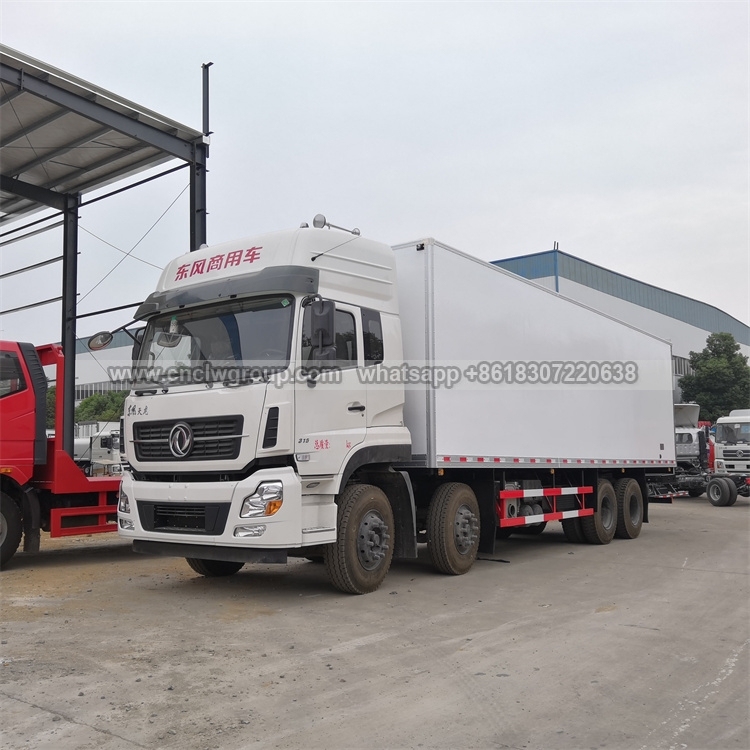

Dongfeng 8x4 Kinglan new cab chassis, condition new, 3 seats with a sleeper, 1800+4350+1350mm wheelbase, Cummins 315HP Euro 3 dieseI engine, Manual FAST 12-speed transmission, 11.00R20 radial tires, with one spare tire, 6.5 Ton front axle, 2x 11.5 Ton rear axle, air brake, exhaust brake, power assist steering, etc.
Chassis brand options: Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.
【Upper Structure Parameters】
Insulation box size 9500x2440x2400mm, total 55.6 cbm box volume; insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit is China brand -16℃ capacity.
Refrigeration unit brand options: American import brand Thermo King, Carrier brand; China brand Hanxue, Kauxue, Huatai, Bingli, etc.
Model | CLW5311XLCD3 |
Chassis brand | DongFeng |
Wheeldrive | 8x4 |
New or Used | New |
Overall dimension(mm) | 12000x2600x3995 |
Insulation box dimension(mm) | 9500x2440x2400 |
Material of Insulation box | Sanwitch structure: FRP panel + 80mm insulation + FRP panel |
Refrigeration unit |
China famous brand -16℃~ 0 ℃ |
Gross weight(kg) | 31000 |
Curb weight(kg) | 14500 |
Load Weight(kg) | 25-30 tons |
Wheelbase(mm) | 1800+4350+1350 |
Engine power | Cummins 315HP Euro3 |
Fuel type | DieseI |
Transmission | Shaanxi Fast Manual 12- speed |
Brake | Air brake |
Axle load(front/rear) | 6.5/6.5/11.5/11/5 |
Tire | 12+1 pcs, 11.00R20 radial tires |
Max speed | 90km/h |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
