Dongfeng 8x4 30~40 Tons Concave Beam Low Bed Truck

- Dongfeng 8x4 30-40 Tons Concave Beam Low Bed Truck
- Yuchai 350HP Euro6 engine
- 12+1 pcs 11.00R20 radial tires
- Flat bed dimension: 9000x2500,3000(mm)
- Concave Low Bed Height: ≤ 900 mm
- Spring ladder: Mechanical or Hydraulic
Description
Description

【Chassis Parameters】

Dongfeng 8x4 heavy duty dedicated chassis, CONCAVE chassis beam, condition new, 3 seats with a sleeper, 1850+5800+1350mm wheelbase, Yuchai 350HP Euro 6 dieseI engine, Fast 12-speed transmission, 11.00R20 radial tires, with one spare tire, 5.5 ton front axle, 13 ton rear axle, air brake, power assist steering, New sedan-level luxury interior workbench, 10-inch large multi-function screen (reversing image), original air conditioner, remote lock multi-lock in one (support one-key window lift), multi-function steering wheel, airbag seat, LED daytime driving.

【Upper Structure Parameters】

Dongfeng 8x4 30-40 tons heavy duty Concave Beam Low Bed Truck, with Concave Beam, "Low Loading Height, Low Center of Gravity", loading height ≤ 900mm, is mainly used for carrying excavator, bulldozer, loaders, road rollers, large agricultural machinery, etc. Traditional flatbed truck with two pcs ladders for climbing up, but is very dangerous and for some crawler-type or large machinery is prone to rollover due to the corners of the platform and ladder when getting on the vehicle. Chengli CLW produced self loading flatbed truck, installed a heavy lifting front outrigger at front of flatbed, behind cabin,  it can lifting the truck to give the flat deck plate a tilt angle, so that any truck or machinery can easily climb onto the flat bed.



Model CLW5310TPBD5
Chassis brand Dongfeng
New or Used New
Overall dimension(mm) 12000x2550x3200
Flatbed dimension(mm) 9000x2500, 3000
Concave Bed dimension(mm) 4700x2550mm, for loading base or pedestal of excavator
Gross weight 31000kg
Curb weight 12500kg
Load 30-40 tons
Wheelbase(mm) 1850+5800+1350
Engine power Yuchai 350HP Euro6 diesel
Fuel type DieseI
Transmission FAST 12 - speed
Brake Full air brake, ABS
Axle load 5500/5500/20000(kg)
Tire 12+1 pcs, 11.00R20 radial tires
Max speed 90km/h
Superstructure

- Type: Concave beam low bed

- Flat bed length: 9000mm

- Concave low bed dimension: 4700mm

- Flatbed width: 2500mm (can choose to do 3000mm)

- Bed loading height: ≤ 900mm

- Material: 6mm deck plate, under supported with 120x120mm square tube made frame

- Rear ladder: 2 pcs mechanical spring ladders(can choose hydraulic ladders)

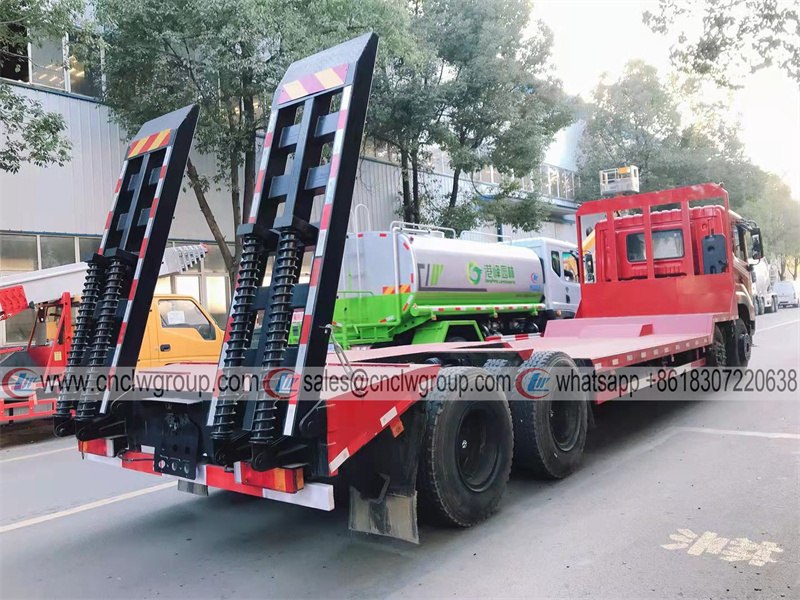

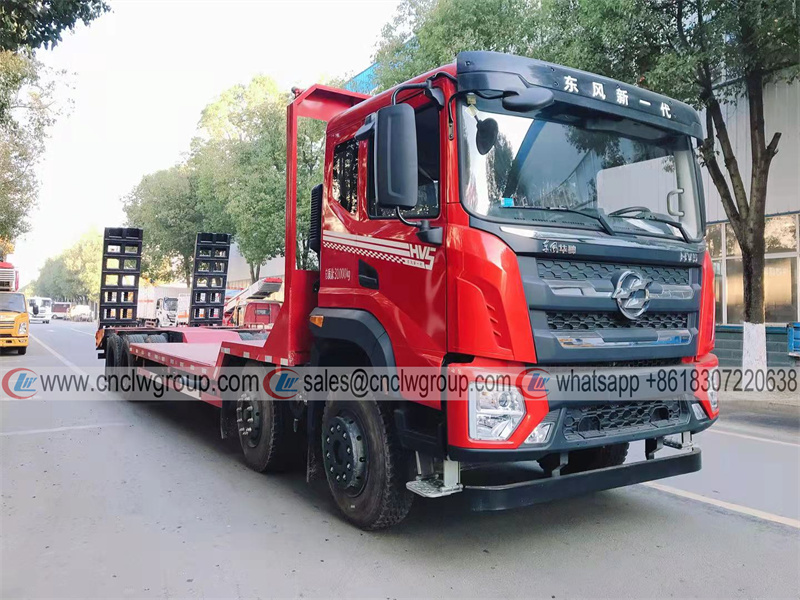

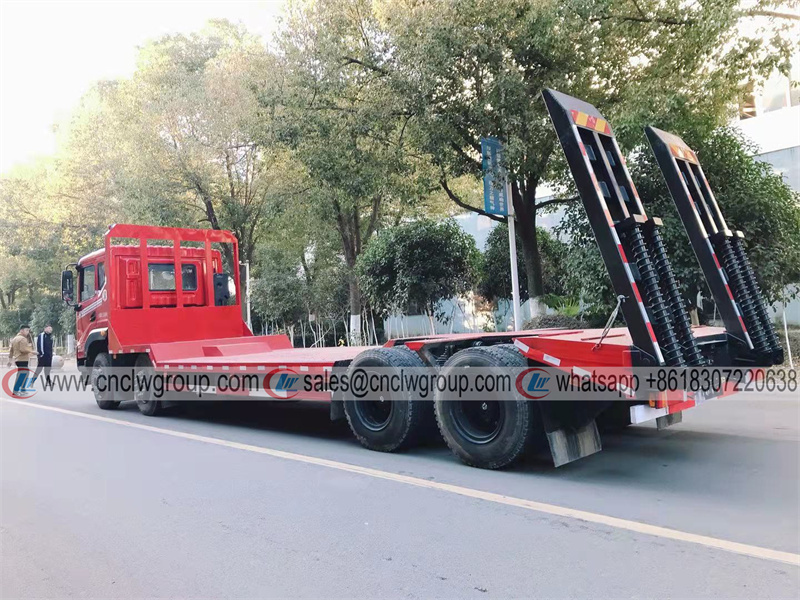

[Multi-directional Images]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
