Dongfeng 9.45m3 Water Sprinkler Tank Spraying Truck Cummins engine Water Lorry

- Dongfeng 4x2 9450 liter water sprinkler truck
- Cummins 190HP or 210HP Euro 3 engine
- 6+1 pcs 9.00R20 radial tire
- 9450 liter carbon steel tank body
- With water pump,front/rear sprinkler nozzles
- Spray range: 12~16 meters
Description
Description

Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tank truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc.  Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.



【Chassis Parameters】

Cab chassis of Dongfeng 9450 liter water sprinkler truck tank lorry, condition new, 3 seats with a sleeper, 3950mm wheelbase, 190HP Euro 3 dieseI engine, manual 8-speed transmission, 6+1 pcs 9.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

Superstructure of Dongfeng 9450 liter water sprinkler truck tank lorry

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 9450 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 60m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;

Specifications of Dongfeng 9450 liter water sprinkler truck tank lorry:

Product Model CLW5160GSSD3 water sprinkler truck
New or Used New
Overall dimension 7350x2500x2950mm
Gross weight 16000kg
Curb weight 6850kg
Chassis brand Dongfeng
Wheelbase 3950mm
Cab Flat roof, 3 seats with a sleeper, air conditioning(optional)
Transmission Manual, 8-speed forward and 1 reversinf
Front Axle 5 ton
Rear Axle 10 ton
Brake  Air brake,
Tire 6+1 pcs, 9.00R20 16LT radial tire
Max speed 90km/h
Engine  Cummins
Power 190HP
Displacement 5900cc
Emission standard Euro 3
Tank volume 9450 liter
Tank material Carbon steel with anti-corrosion treatment
Front spraying 2 pcs nozzles, manual or auto controlled
Rear spraying 2 pcs nozzles, manual or auto controlled
Side spraying 2 pcs nozzles, manual or auto controlled
Water cannon 1 pcs, 360° slewing, shot 28-35 meters
Shot of spraying nozzle 12 - 16 meters
Valve 2 pcs, discharge valve + fire hydrant joint

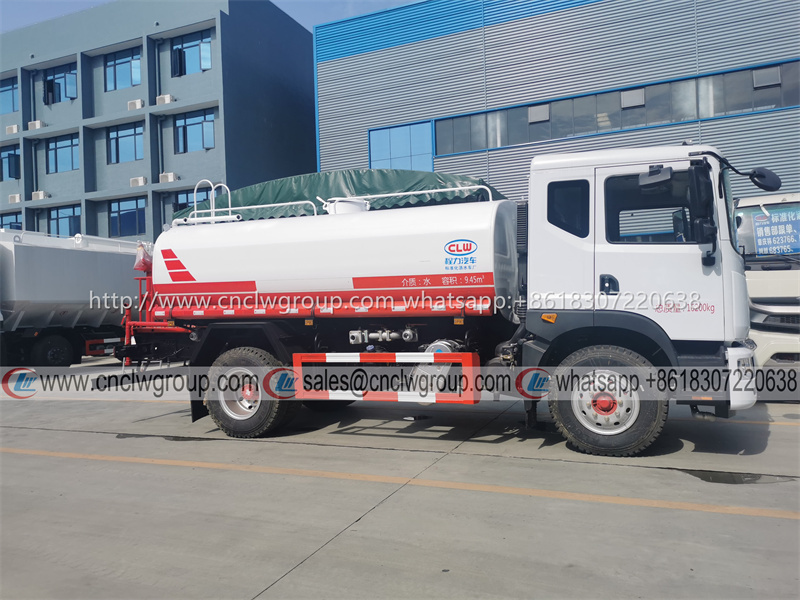

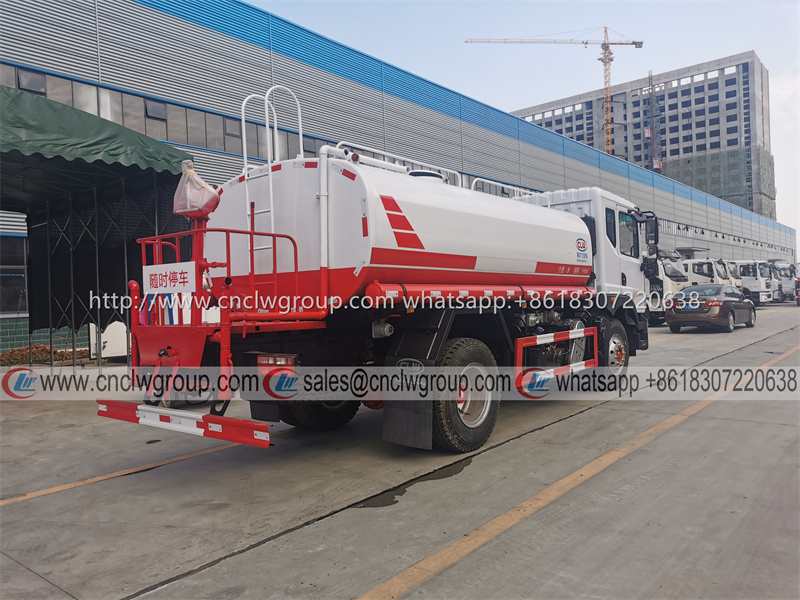

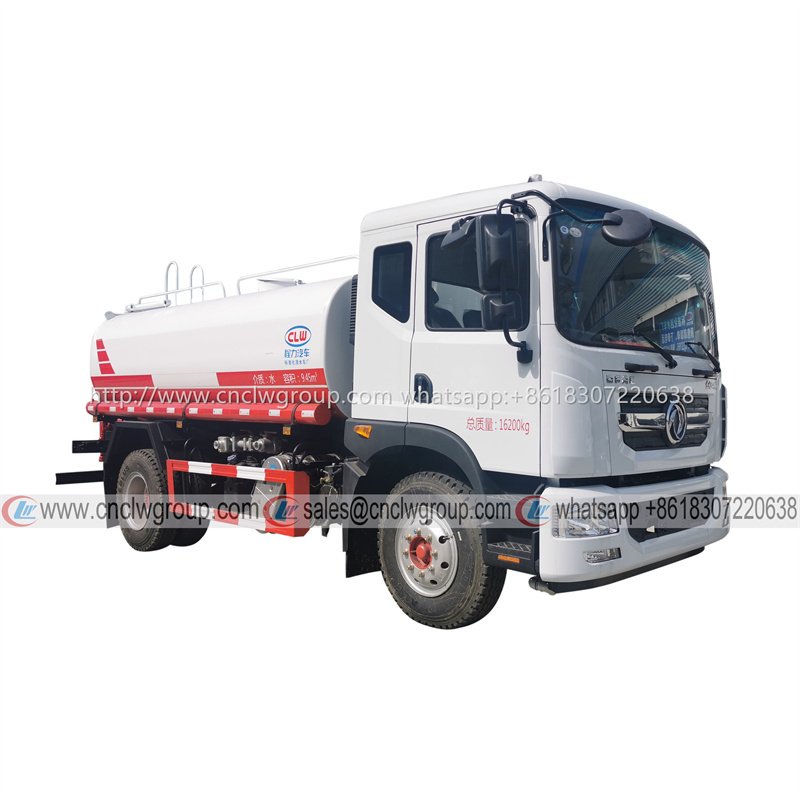

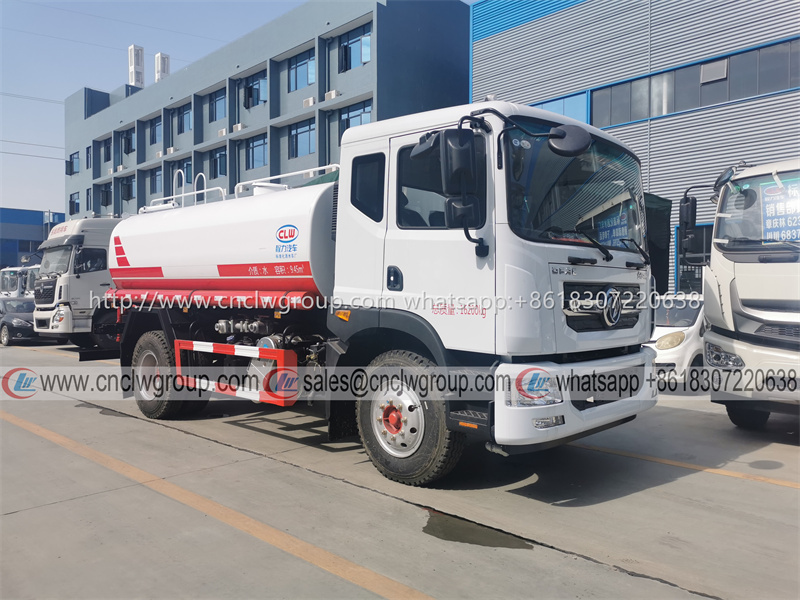

[Multi-directional Images of Dongfeng 9450 liter Water Sprinkler Truck]

Dongfeng 9450 liter water sprinkler truck tank lorry

Dongfeng 9450 liter water sprinkler truck tank lorry

Dongfeng 9450 liter water sprinkler truck tank lorry

Description of Dongfeng 9450 liter water sprinkler truck tank lorry

Structures of Dongfeng 9450 liter water sprinkler truck tank lorry:

Manufacture progress of Dongfeng 9450 liter water sprinkler truck tank lorry:

Packing and shipping method of Dongfeng 9450 liter water sprinkler truck tank lorry:

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
