Dongfeng Boom Truck with XCMG 5 ton Crane

Dongfeng 4x2 190HP Euro3 truck
Gross weight: 18000kg
Load: 10-15 tons
Transmission: 8-speed manual gearbox
Tir: 10+1 pcs 10.00-20 nylon tire
Crane brand: XCMG 5 tons crane
Crane type: articulated arm or knuckle arm
Max lifting height: 11m
Description
Description

【Chassis Parameters】

Dongfeng KingRun chassis, condition new, 5000mm wheelbase, Cummins 190HP Euro3 dieseI engine, 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

  • Cargo box: 5600x2300x500mm
  • Crane brand: XCMG SQZ105 5 tons crane
  • Crane type: articulated arm or knuckle arm, 3-section extension boom
  • Max lifting height: 11m
  • Max working radiu: 8.5m



【Vehicle Basic Parameters】

Model CLW5180JSQD31
Chassis brand Dongfeng
New or Used New
Overall dimension 9000x2500x3650mm
Cargo box 5600x2300x500mm
Gross weight 18000kg
Curb weight 8800kg
Load 10-15 tons
Wheelbase 5000mm
Engine power Cummins 190HP, 210HP options
Fuel type DieseI
Transmission 8-speed
Brake air brake
Axle load 5/10 tons
Tire 10+1 pcs, 10.00-20
Max speed 90km/h

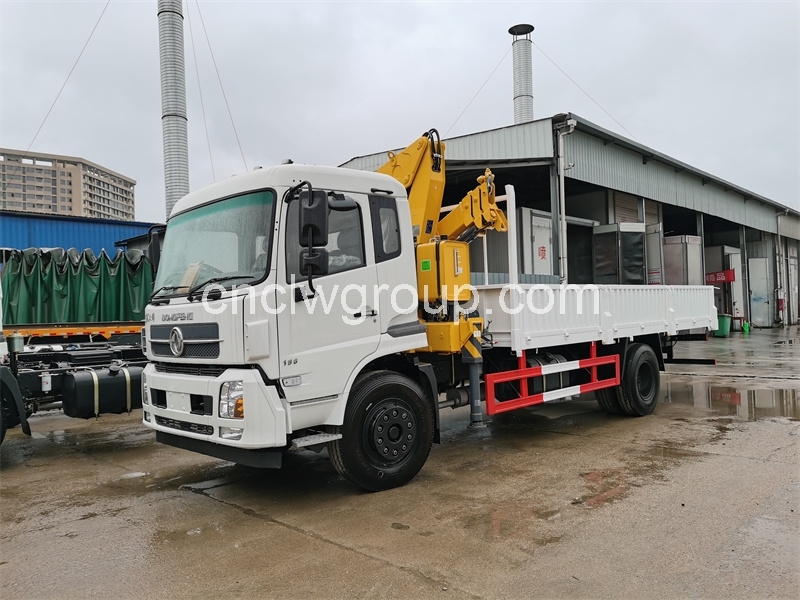

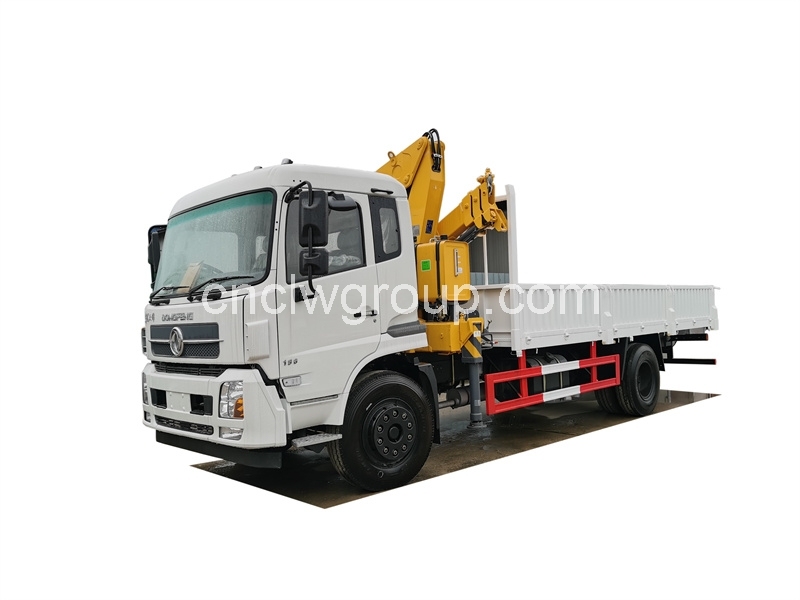

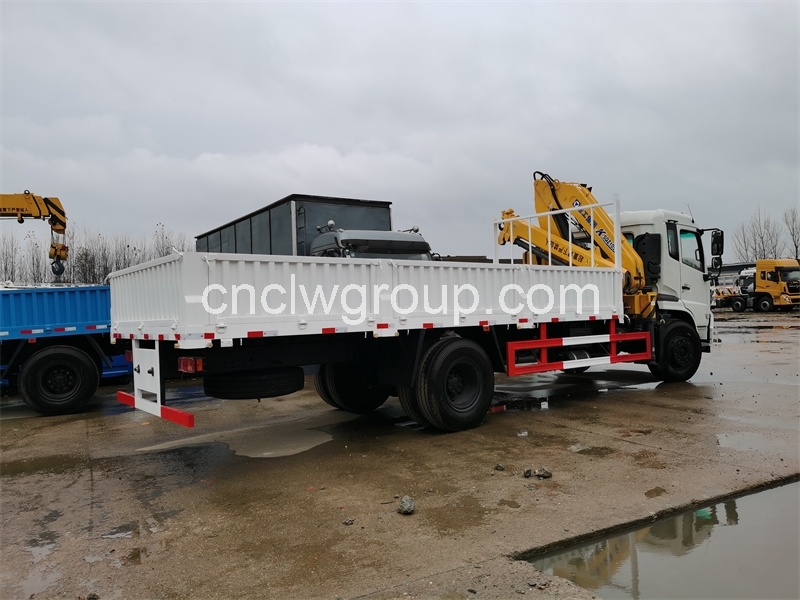

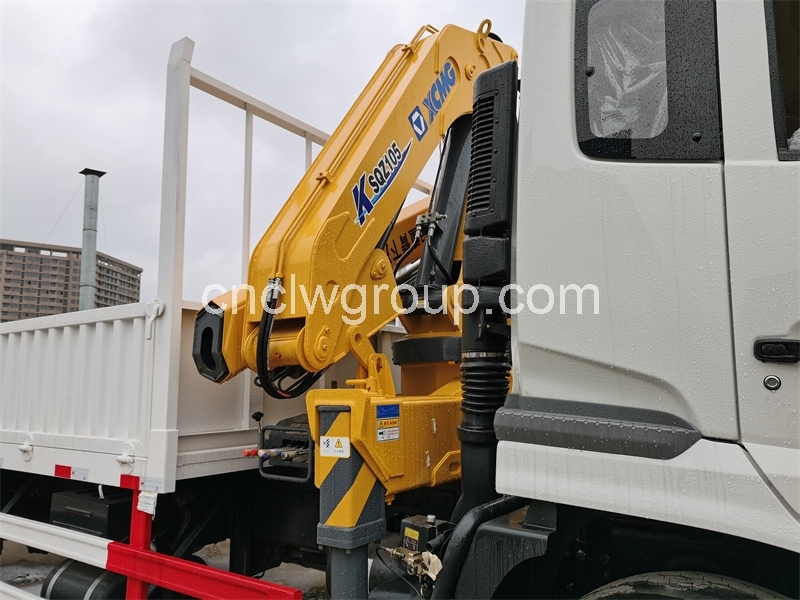

【Multi-directional Pictures】

【Crane Parameters】

Model SQZ105
Brand XCMG
New or Used New
Max lifting weight 5 tons
Max torque 105 kN.m
Max lifting height 11m
Max working radius 8.5
Recommand oil pressure 28MPa
Oil flow 25L/min
Slewing angle 360 degree
Outrigger span 2280mm ~ 5210mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc



【XCMG SQZ105 Crane Lifting Capacity Graph】





As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
