Dongfeng D9 10000 liter Water Sprayer Truck Road Water Sprinkler Tank Lorry

- Dongefeng 4x2 10,000 liter water sprinkler truck
- Cummins 190HP Euro 3 engine
- 10+1 pcs 10.00R20 radial tire
- 10,000 liter carbon steel tank body
- With water pump,front/rear sprinkler nozzles
- Spray range: 12~16 meters

Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tank truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc.  Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.


【Chassis Parameters】

Cab chassis of Dongfeng 4x2 10000 liter water sprinkler truck water bowser tanker, condition new, 3 seats with a sleeper, 3950mm wheelbase, Cummins 190HP Euro 3 dieseI engine, manual 8-speed transmission, 6+1 pcs 10.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

Superstructure of Dongfeng 4x2 10000 liter water sprinkler truck

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 10,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 60m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;


Model CLW5160GSSD3
Chassis brand Dongfeng
New or Used New
Overall dimension 7250x2500x3050mm
Gross weight 16000kg
Curb weight 7500kg
Load 10 tons
Wheelbase 3950mm
Engine power Cummins 190HP Euro3
Fuel type DieseI
Transmission Manual, 8-speed gearbox
Brake air brake
Axle load 5Ton / 10Tons
Tire 6+1 pcs, 10.00R20 radial tires
Max speed 90km/h

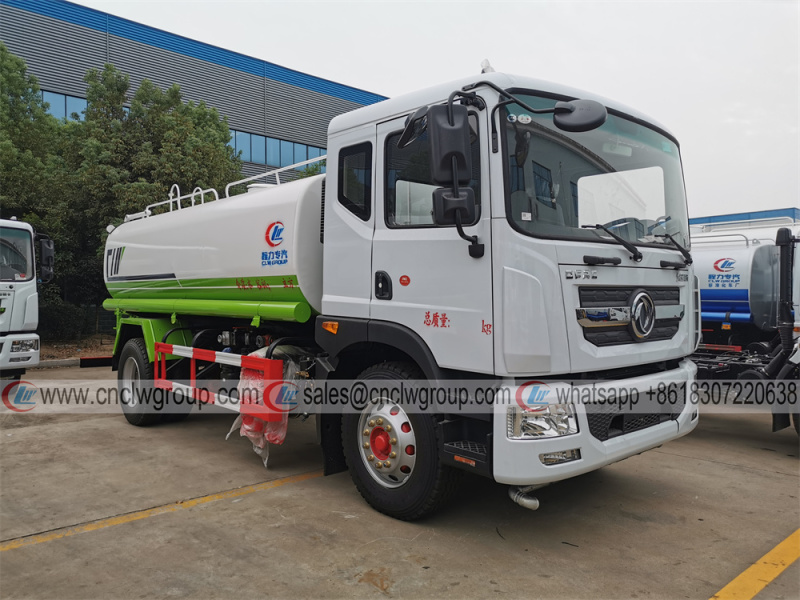

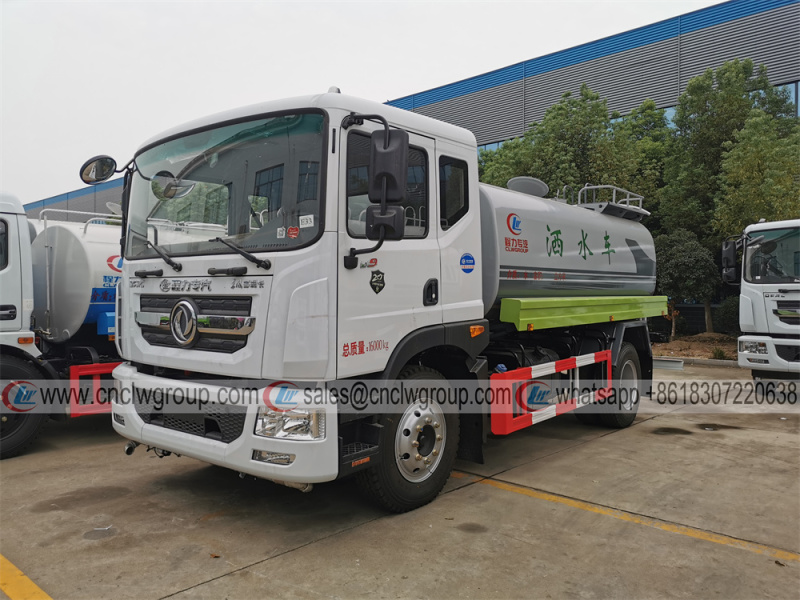

[Multi-directional Images of Dongfeng 10000 liter Water Sprinkler Truck]

Dongfeng 4x2 10000 liter water sprinkler truck

Dongfeng 4x2 10000 liter water sprinkler truck

Dongfeng 4x2 10000 liter water sprinkler truck

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
