【Chassis Parameters】
Dongfeng brand chassis, condition new, 4700mm wheelbase, Cummins 190HP or 210HP Euro3 dieseI engine, 8-speed transmission, 10.00R20 radial tires, with one spare tire, 6.5 ton front axle, 11.5 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】

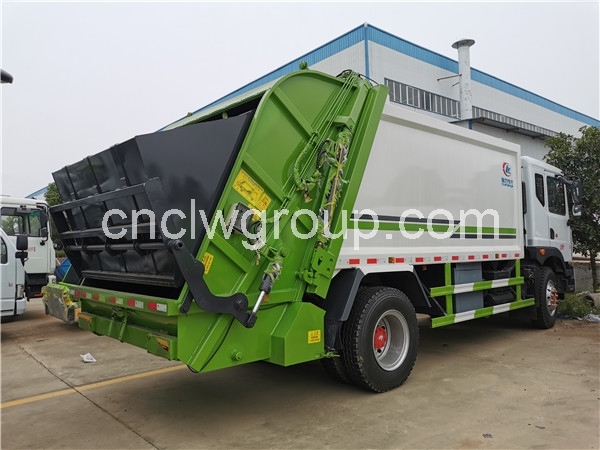

Chengli produced garbage compactor body, with 14 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.
Model | CLW51680ZYSD3 |
Chassis brand | Dongfeng |
New or Used | New |
Overall dimension | 8350x2500x3150mm |
Gross weight | 18000kg |
Curb weight | 9800kg |
Load | 10 tons |
Wheelbase | 4700mm |
Engine power | Cummins 190HP or 210HP optional |
Fuel type | DieseI |
Transmission | 8-speed |
Brake | air brake |
Axle load | 6.5/11.5 tons |
Tire | 6+1 pcs, 10.00R20 radial tires |
Max speed | 90km/h |
【Structures & Features of Chengli Garbage Compactor】
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
