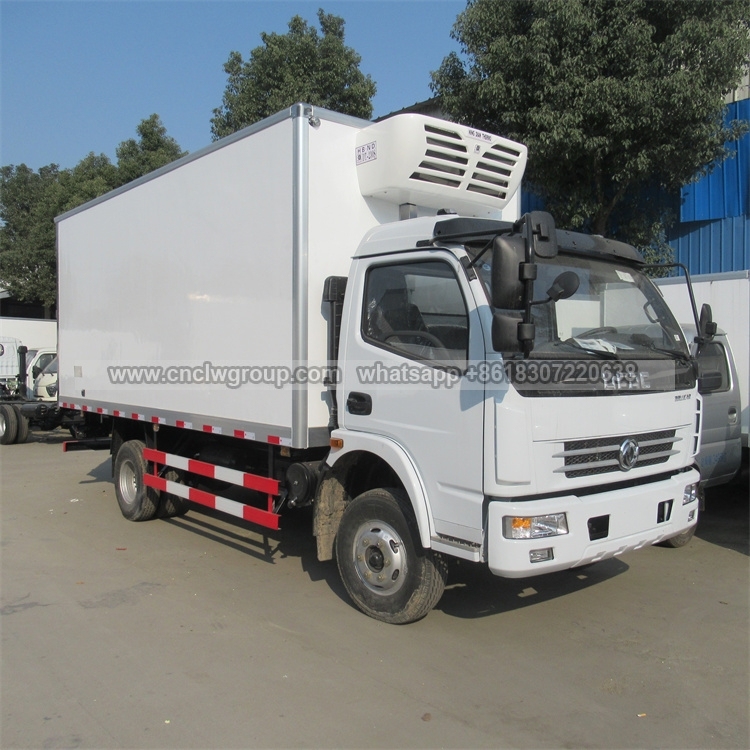

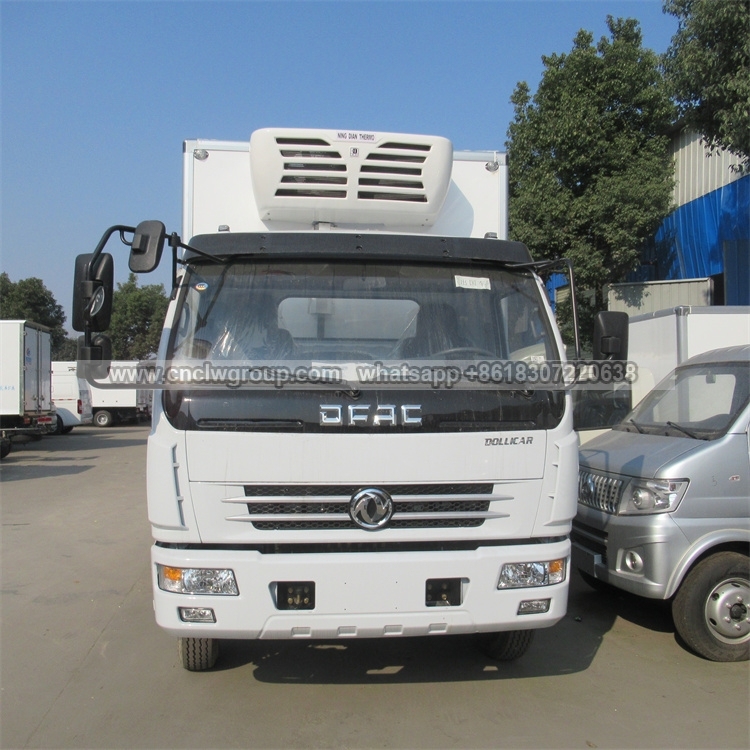

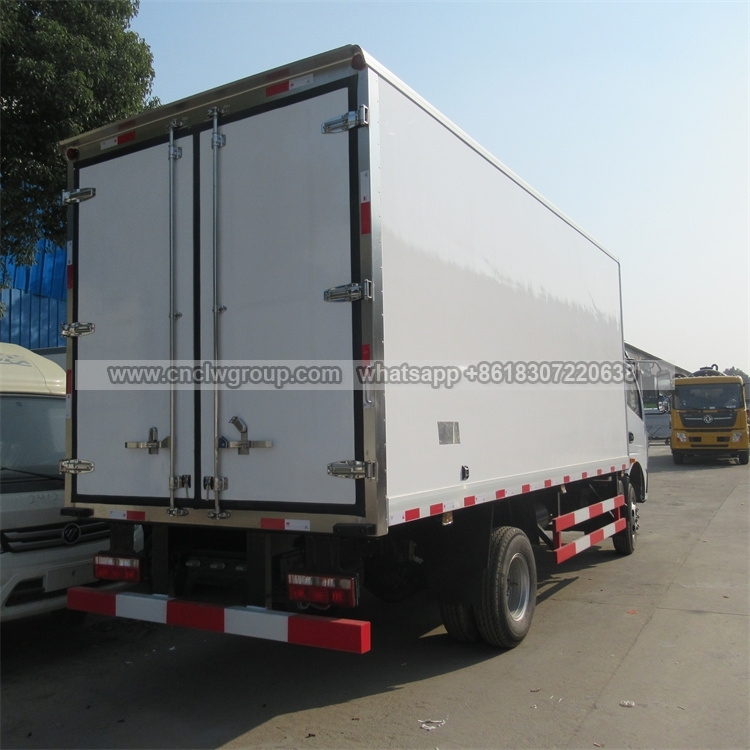

Dongfeng DFAC 17FT Refrigerated Van

- Dongfeng DFAC Dolicar 4x2 LHD 6~8 Ton Refrigerated Truck
- Insulation Box: 5150x2150x2200mm
- Refrigeration unit: -16℃ ~ 0℃
- Yuchai 120HP Euro3 engine
- 6+1 pcs 7.50R16 radial tires

【Chassis Parameters】

Dongfeng DFAC Dolicar New cab chassis, condition new, 3 seats, 3800mm wheelbase, Yuchai 120HP Euro 3 dieseI engine, Manual 5-speed transmission, 7.50R16 radial tires, with one spare tire, 2.5 Ton front axle, 5 Ton rear axle, air brake, exhaust brake, power assist steering, etc.

Chassis brand options: Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.


【Upper Structure Parameters】

Insulation box size 5150x2150x2200mm, total 24.36 cbm box volume;  insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit is China brand -16℃ capacity.

Refrigeration unit brand options: American import brand Thermo King, Carrier brand;   China brand Hanxue, Kauxue, Huatai, Bingli, etc.


Model CLW5090XLCD3
Chassis brand DongFeng
Wheeldrive 4x2, LHD
New or Used New
Overall dimension(mm) 7000x2380x3350
Insulation box dimension(mm) 5150x2150x2200
Material of Insulation box Sanwitch structure: FRP panel + 80mm insulation + FRP panel
Refrigeration unit
China famous brand -16℃~ 0 ℃
Gross weight(kg) 9850
Curb weight(kg) 4500
Load Weight(kg) 6~8 tons
Wheelbase(mm) 3800
Engine power Yuchai 120HP Euro3
Fuel type DieseI
Transmission Manual 5- speed
Brake Air brake
Axle load(front/rear) 2.5 tons / 5 tons
Tire 6+1 pcs, 7.50R16 radial tires
Max speed 90km/h


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
