【Chassis Parameters】

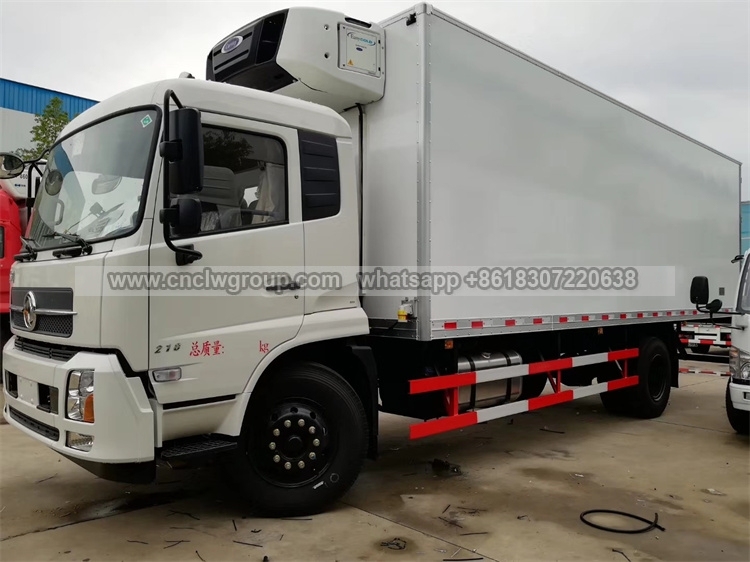

Dongfeng KingRun New cab chassis, condition new, 3 seats with a sleeper, 5100mm wheelbase, Cummins 190HP Euro 3 dieseI engine, FAST 8-speed transmission, 10.00R20 radial tires, with one spare tire, 5 Ton front axle, 10 Ton rear axle, air brake, exhaust brake, power assist steering, etc.
Chassis brand options: Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.
【Upper Structure Parameters】

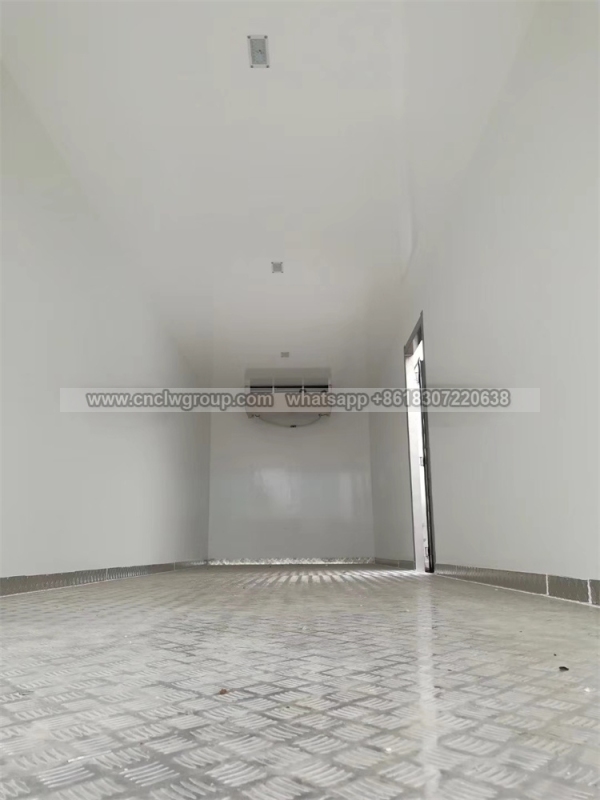

Insulation box size 6800x2300x2400mm, total 37.5 cbm box volume; insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit is American import Carrier -18℃ capacity.
Refrigeration unit brand options: American import brand Thermo King, Carrier brand; China brand Hanxue, Kauxue, Huatai, Bingli, etc.
| Model | CLW5160XLCD3 |
| Chassis brand | DongFeng |
| Wheeldrive | 4x2, LHD |
| New or Used | New |
| Overall dimension(mm) | 9300x2550x3850 |
| Insulation box dimension(mm) | 6800x2300x2400 |
| Material of Insulation box | Sanwitch structure: FRP panel + 80mm insulation + FRP panel |
| Refrigeration unit |
A merican Carrier -18℃~ 0 ℃ |
| Gross weight(kg) | 16000 |
| Curb weight(kg) | 8600 |
| Load Weight(kg) | 10~15 tons |
| Wheelbase(mm) | 5100 |
| Engine power | Cummins 190HP Euro3 |
| Fuel type | DieseI |
| Transmission | FAST 8- speed |
| Brake | Air brake |
| Axle load(front/rear) | 5 tons / 10 tons |
| Tire | 6+1 pcs, 10.00R20 radial tires |
| Max speed | 90km/h |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
