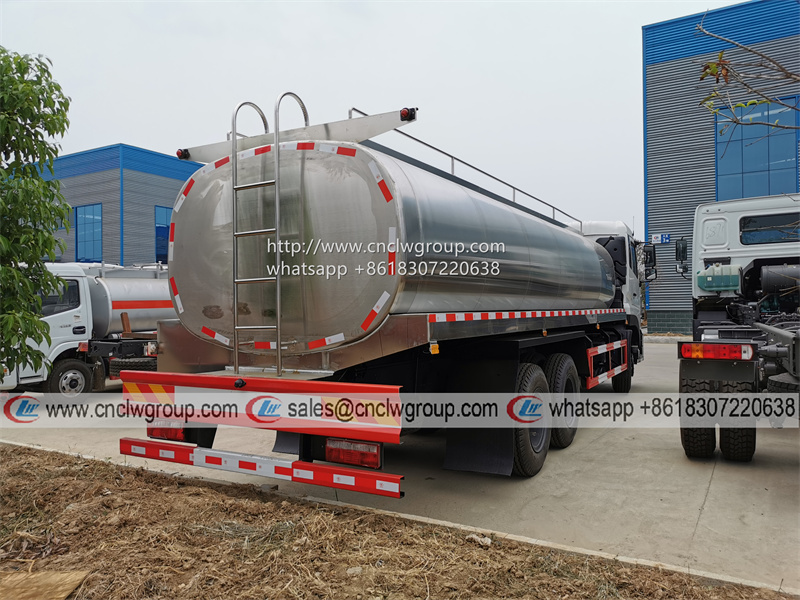

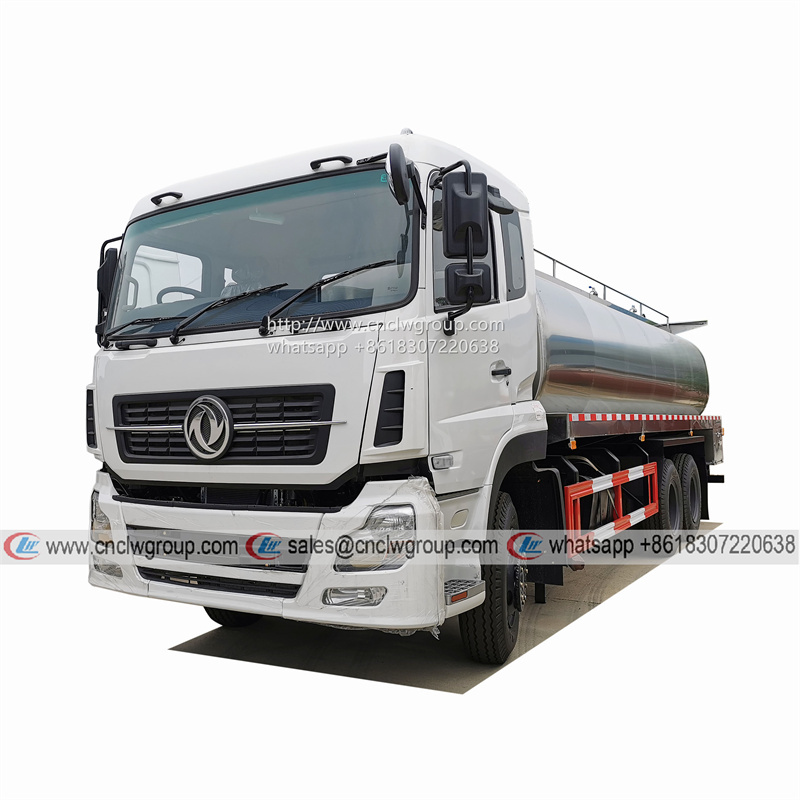

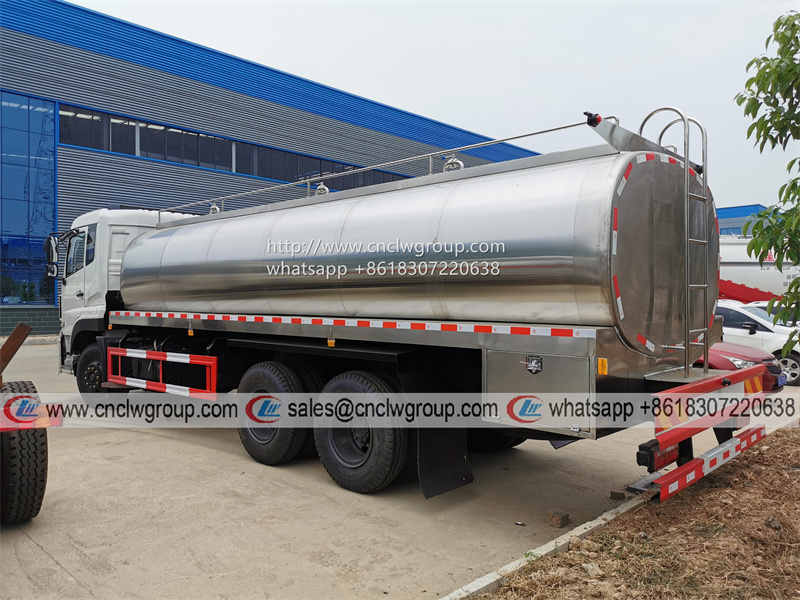

Dongfeng KL 6x4 RHD 20000 liter milk tanker truck carries fresh milk tank wagons for sale

【Chassis Parameters of Dongfeng Milk Truck】
Chassis parameters of Dongfeng KL 6x4 RHD 20000 liter milk tanker truck carries fresh milk

Dongfeng KL 6x4 cab chassis, condition new, 4350+1350mm wheelbase, Yuchai 260HP Euro3 dieseI engine, manual 9-speed transmission, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 2x 10 ton rear axle, air brake, power assist steering, maintenance-free battery, with air brake, reinforced front and rear leaf springs, 300L iron fuel tank, etc.

【Superstructure of Dongfeng Milk Truck】

Superstructure Configuration of Dongfeng KL 6x4 RHD 20000 liter milk tanker truck carries fresh milk

1. The thickness of the tank liner is 4mm, using 304/2B plate, and the surface finish conforms to the hygiene standard of milk tank. The thickness of the outer skin plate is 1.0mm, and the surface has corrosion resistance; the brushed surface is used to reduce the reflective brightness of the surface and improve the driving safety.

2. Multiple independent warehouses or common warehouses can be designed according to user needs. The independent warehouse adopts the arc structure partition. Both sides of the partition are R50 arcs and the tank body are transitionally connected. The impact resistance is stronger, and the vehicle is more stable. Sanitary dead corner, effectively extending the service life of the tank.

3. The inner tank of the tank adopts automatic TIG welding, mechanical rolling of the welding seam and fine polishing, so as to ensure its strength on the basis of retaining the original welding seam, and achieve a higher finish.

4. The insulation layer of the milk tank adopts more advanced high-pressure polyurethane casting and one-time mold forming technology. The thickness of the insulation layer reaches 80mm-120mm, and the density reaches 35kg/cube. At the same time, the foaming cavity is eliminated to ensure the milk in the tank. 30 hours temperature rise ≤ 1 ℃. The thermal insulation material is added with a special material flame retardant to ensure the safety of use and subsequent maintenance.

5. A reliable mechanical safety breathing valve is installed on the top of the tank to prevent dust from entering the tank, reduce material loss, prevent positive and negative pressure from generating in the tank, and improve the safety performance of the entire tank.

6. The manhole cover adopts double-layer thermal insulation to reduce heat loss and improve thermal insulation effect.

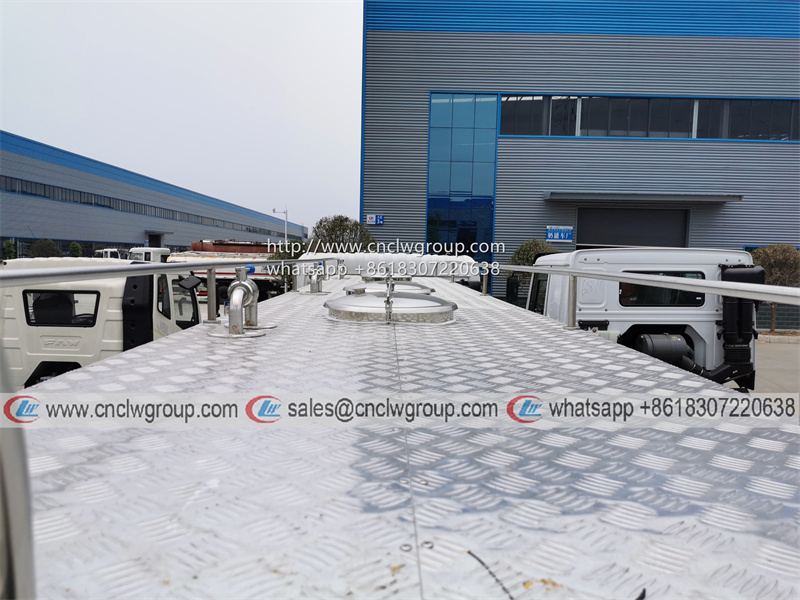

7. The anti-skid platform adopts a more advanced upper flanging anti-skid structure to ensure that it can effectively prevent slipping in the presence of ice and snow.

【Vehicle Basic Parameters】

【Milk Truck Special Features】

1. Tank inside material is made of FOOD GRADE stainless steel 304-2B plate, tank can be divided into multi compartments, inside tank is required to be very smooth, no sharp angle. Each milk tank is equipped with a CIP (cleaning device), and the tank is equipped with a washer, which is automatically sprayed and cleaned by water, and there is no dead angle at 360°.
2. The middle of the tank is an insulating layer, which has a heat preservation effect and prevents the fresh milk from deteriorating. When the temperature difference between day and night is large, the 24-hour temperature change does not exceed 1°C. The thermal insulation material adopts 80mm thick polyurethane foam material for thermal insulation.
3. The outer layer of the tank (the protective layer that wraps the insulation layer) is made of 304L stainless steel plate. The stainless steel outer skin and tail valve box are beautiful in appearance, the structure of the whole vehicle is reasonable, the weight is light, and the strength is good.

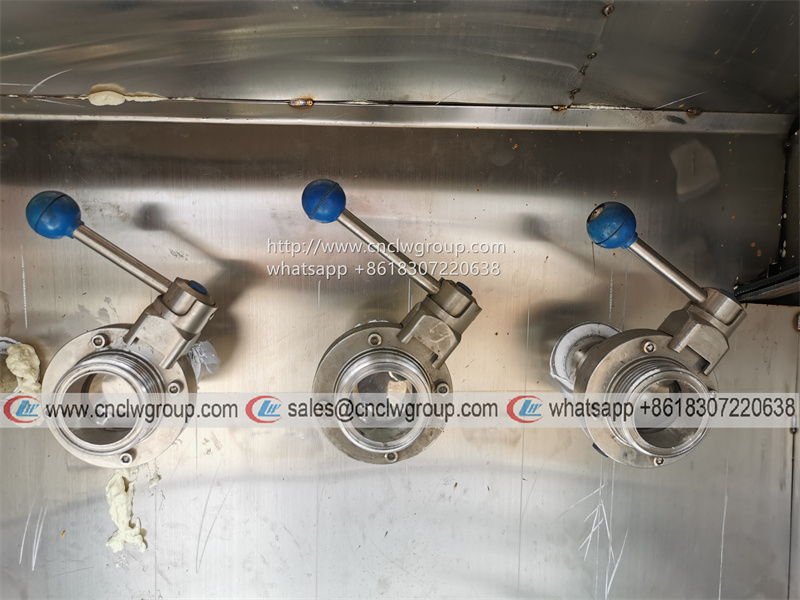

4. Each bin has its own unloading port (self-retaining valve) and feeding port (manhole).

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!
