Dongfeng Mengshi Warrior 4x4 Military Offroad Performance Civil Version 4WD Pickup

Dongfeng Mengshi offroad 4x4 pickup
Engine: Cummins 190hp,  195hp, 210hp
Transmission: manual 5-speed
Full time chain transfer case, Disconnect transaxle, Torsen-style mechanical limited-slip differential lock
4+1 pcs 305/80R18 tubeless tire
Description
Description

【Chassis Parameters】

Dongfeng Mengshi M50 4x4 offroad pickup, double cabin, 2+2 seats, Cummins 190hp, 195hp or 210hp optional, with manual 5-speed transmssion + manual 4-speed Full time chain transfer case, Disconnect transaxle, Torsen-style mechanical limited-slip differential lock, top air intake, 3800mm wheelbase, 3960kg curb weight, 75L main fuel tank + 55L auxiliary fuel tank, 305/80R18 tubeless tire, power window, central lock, with air conditioning, etc.



【Upper Structure Parameters】

Dongfeng Mengshi 4x4 Pickup Cargo box size: 1620x2200x350mm.
Dongfeng Mengshi 4x4 offroad car also can be modified into the following vehicle types:
Patrol vehicles, manned vehicles, ambulances, fire trucks, command vehicles, communication vehicles, RVs, emergency vehicles, maintenance vehicles, fuel tankers, water trucks, wrecker rescue vehicles, etc.

Vehicle Basic Specifications
Model M5040
Chassis brand Dongfeng Mengshi
Wheeldrive 4x4
New or Used New
Overall dimension(mm) 5320x2310x1950
Dump box dimension(mm) 1620x2200x350mm
Gross weight(kg) 4495
Curb weight(kg) 3960
Load Weight(kg) -
Wheelbase(mm) 3800
Engine power Cummins 190hp, 195hp, 210hp
Fuel type DieseI
Transmission Manual 5- speed
Transfer case Manual 4-speed
Brake Air brake
Axle load(front/rear) 1.5 tons / 3.5 tons
Tire 4+1 pcs, 305/80R18 tubeless tire
Max speed 90km/h
Off-road Performance Parameters
Approach/Departure angle 45/35 degree
Cross through angle 27 degree
Minimum ground clearance 380mm
Vertical obstacle height 400mm
Wading depth -
Fuel tank Main 75L + Auxiliary 55L
Super power combination Cummins engine + 5MT + Full time chain transfer case
Disconnect transaxle
Main reduction + outer gear type hub reduction, two stage reduction enhance driving torque, Torsen-style mechanical limited-slip differential lock, which can largely enhance offroad performance
Optional Items for better adapation 1. Central charging and discharging system;
2. fuel heating system;
3. Boiler for super cold area;
4. electric towing winch for rescue;
5. Double generator;



Dongfeng Mengshi 4x4 Offroad Car - Civil Version - same offroad performance as military version





More Different Fabrications on Civil Version Mengshi car:
Dongfeng Mengshi 4x4 Offroad Car - Civil Version - same offroad performance as military version

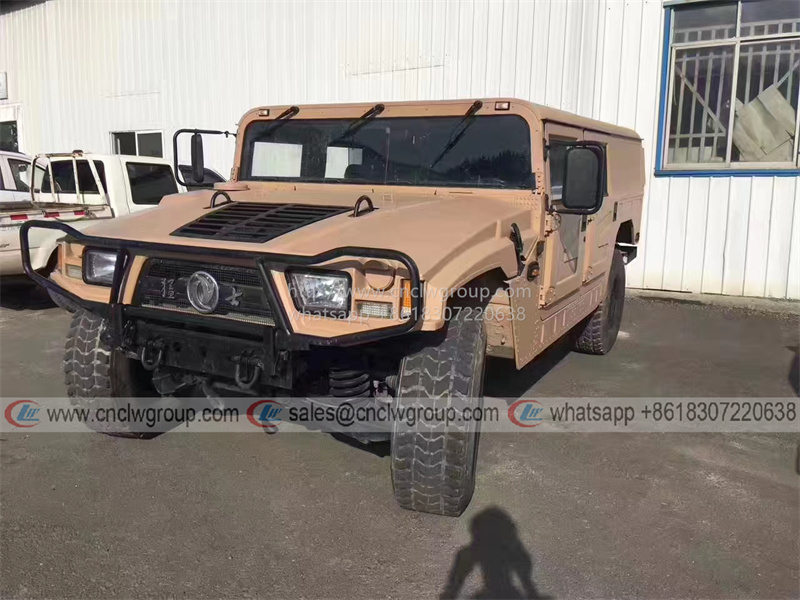

Dongfeng Mengshi 4x4 Offroad Car - Pickup

Dongfeng Mengshi 4x4 Offroad Car - troop car

Dongfeng Mengshi 4x4 Offroad Car - cargo truck

Dongfeng Mengshi 4x4 Offroad Car - ambulance

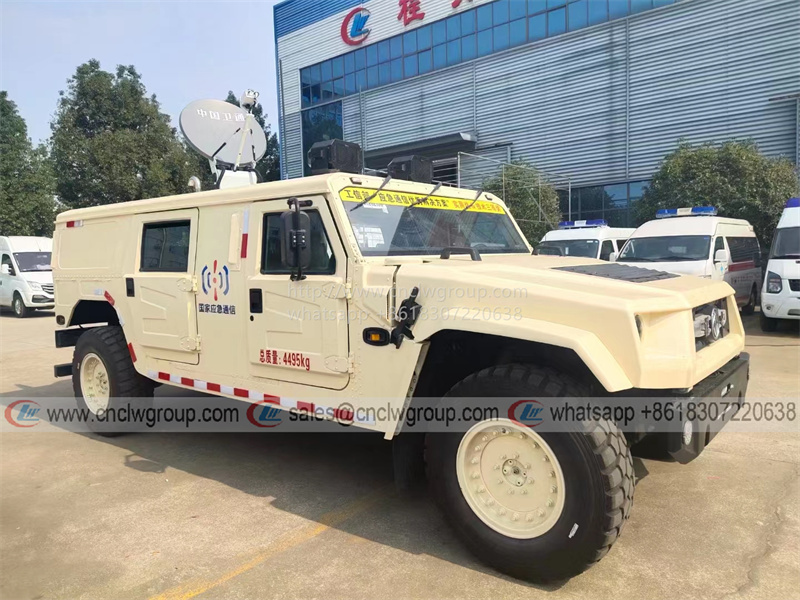

Dongfeng Mengshi 4x4 Offroad Car - communication vehicle

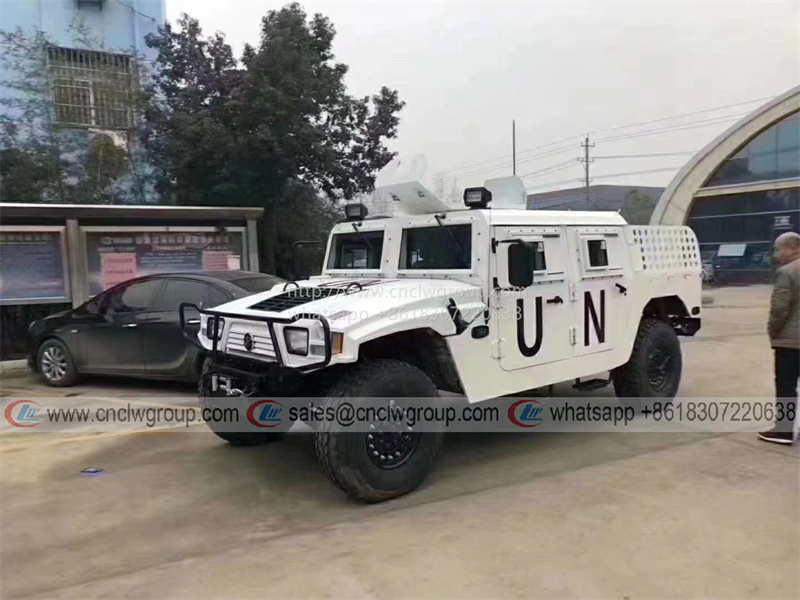

Dongfeng Mengshi 4x4 Offroad Car - patrol car

Dongfeng Mengshi 4x4 Offroad Car - RV

Dongfeng Mengshi 4x4 Offroad Car - tarpaulin troop car

Dongfeng Mengshi 4x4 Offroad Car - equipment car

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
