【Chassis Parameters】
Dongfeng Mengshi M50 4x4 military offroad van, double cabin, 2+2 seats, Cummins 190hp, 195hp or 210hp optional, with manual 5-speed transmssion + manual 4-speed Full time chain transfer case, Disconnect transaxle, Torsen-style mechanical limited-slip differential lock, top air intake, 3800mm wheelbase, 3960kg curb weight, 75L main fuel tank + 55L auxiliary fuel tank, 36x12.5R16.5 tubeless tire, power window, central lock, with air conditioning, etc.
【Upper Structure Parameters】
Dongfeng Mengshi M50 4x4 military offroad van superstructure:
Dongfeng Mengshi M50 4x4 military offroad van also can be modified into the following vehicle types:
Patrol vehicles, manned vehicles, ambulances, fire trucks, command vehicles, communication vehicles, RVs, emergency vehicles, maintenance vehicles, fuel tankers, water trucks, wrecker rescue vehicles, etc.
| Vehicle Basic Specifications | |
| Model | M5040 |
| Chassis brand | Dongfeng Mengshi |
| Wheeldrive | 4x4 |
| New or Used | New |
| Overall dimension(mm) | 5320x2310x1950 |
| Gross weight(kg) | 4495 |
| Curb weight(kg) | 3960 |
| Load Weight(kg) | - |
| Wheelbase(mm) | 3800 |
| Engine power | Cummins 190hp, 195hp, 210hp |
| Fuel type | DieseI |
| Transmission | Manual 5- speed |
| Transfer case | Manual 4-speed |
| Brake | Air brake |
| Axle load(front/rear) | 1.5 tons / 3.5 tons |
| Tire | 4+1 pcs, 36x12.5R16.5 tubeless tire |
| Max speed | 90km/h |
| Off-road Performance Parameters | |
| Approach/Departure angle | 45/35 degree |
| Cross through angle | 27 degree |
| Minimum ground clearance | 380mm |
| Vertical obstacle height | 400mm |
| Wading depth | - |
| Fuel tank | Main 75L + Auxiliary 55L |
| Super power combination | Cummins engine + 5MT + Full time chain transfer case |
| Disconnect transaxle |
Main reduction + outer gear type hub reduction, two stage reduction enhance driving torque, Torsen-style mechanical limited-slip differential lock, which can largely enhance offroad performance |
| Optional Items for better adapation | 1. Central charging and discharging system; 2. fuel heating system; 3. Boiler for super cold area; 4. electric towing winch for rescue; 5. Double generator; |

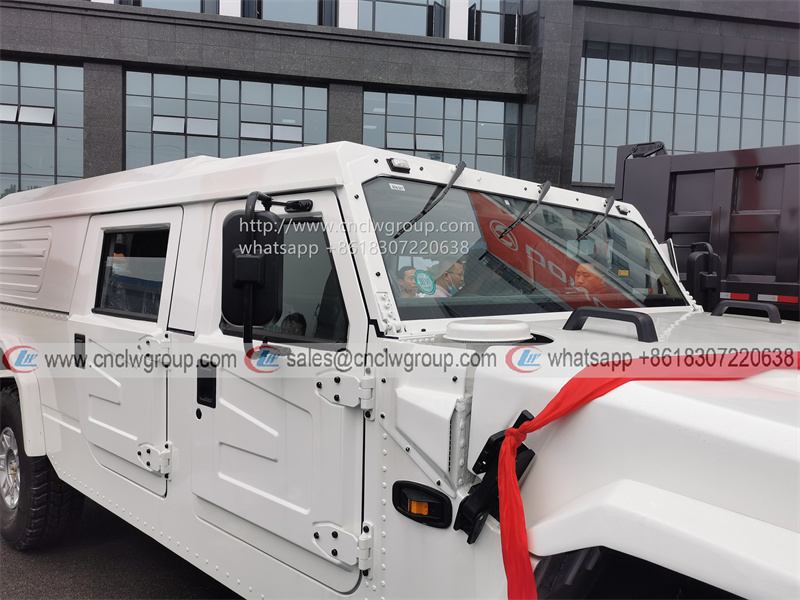

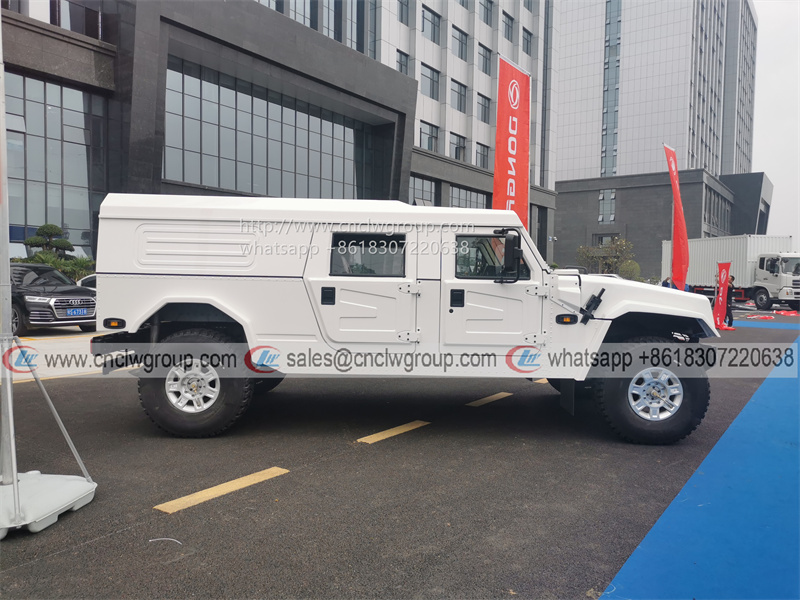

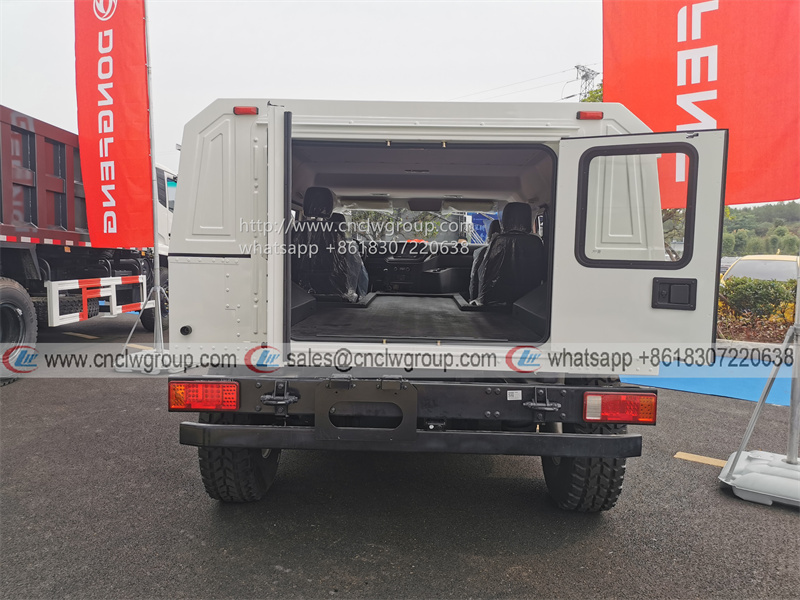

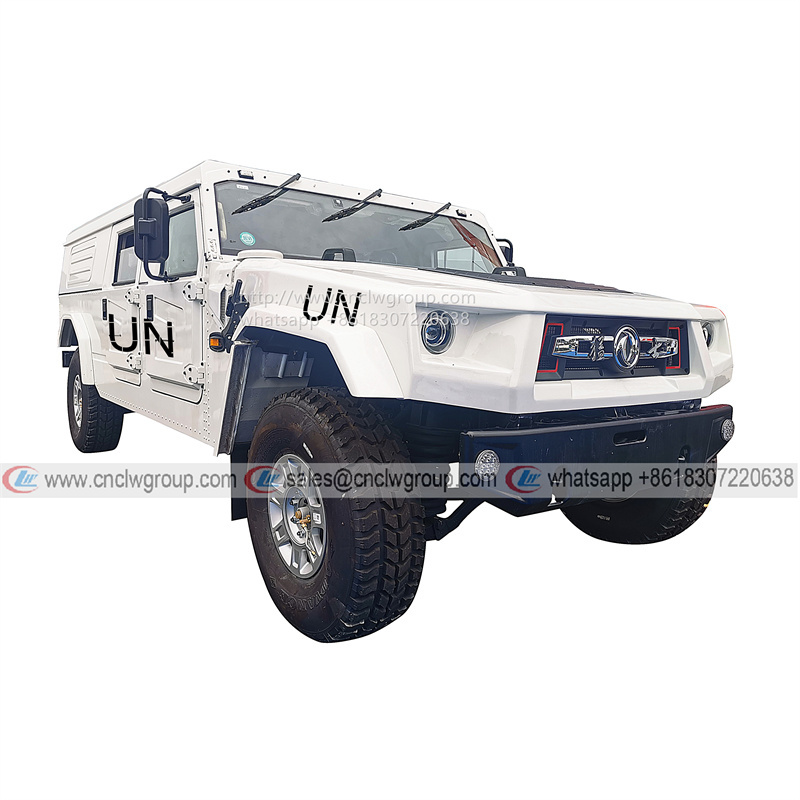

Dongfeng Mengshi M50 4x4 military offroad 4x4 4WD van auto motor car
Dongfeng Mengshi M50 4x4 military offroad 4x4 4WD van auto motor car
Dongfeng Mengshi M50 4x4 military offroad 4x4 4WD van auto motor car
Dongfeng Mengshi 4x4 Offroad Car - Civil Version - same offroad performance as military version
More Different Fabrications on Civil Version Mengshi car:
Dongfeng Mengshi 4x4 Offroad Car - Civil Version - same offroad performance as military version
Dongfeng Mengshi 4x4 Offroad Car - Pickup
Dongfeng Mengshi 4x4 Offroad Car - troop car
Dongfeng Mengshi 4x4 Offroad Car - cargo truck
Dongfeng Mengshi 4x4 Offroad Car - ambulance
Dongfeng Mengshi 4x4 Offroad Car - communication vehicle
Dongfeng Mengshi 4x4 Offroad Car - patrol car
Dongfeng Mengshi 4x4 Offroad Car - RV
Dongfeng Mengshi 4x4 Offroad Car - tarpaulin troop car
Dongfeng Mengshi 4x4 Offroad Car - equipment car
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
