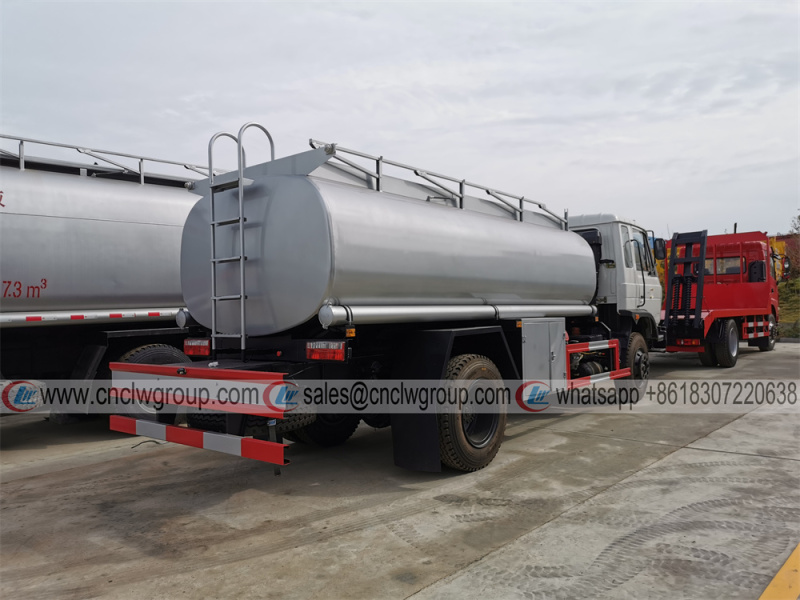

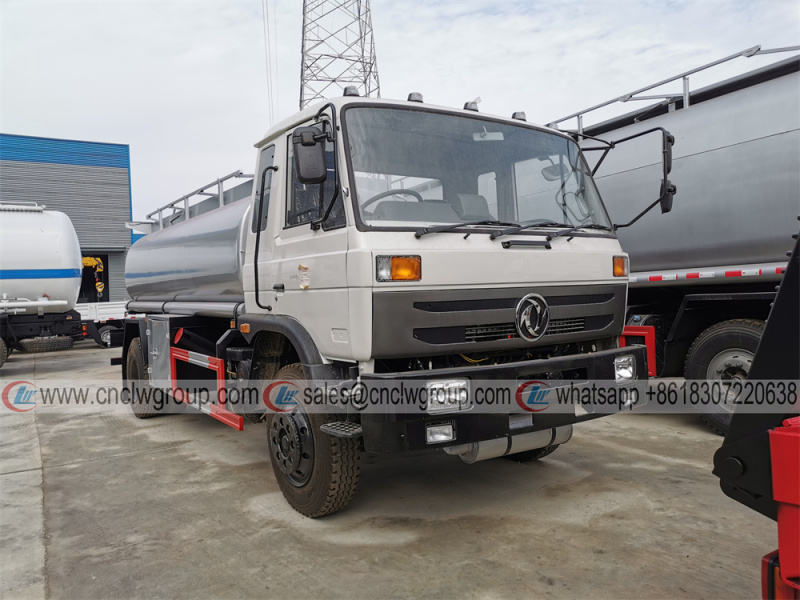

Dongfeng RHD 10m3 Fuel Tank Truck

Dongfeng RHD 4x2 10,000 liter Fuel Tank Truck
Engine: Cummins 170HP Euro3
Tir: 6+1 pcs 9.00-20 tire
Fuel dispenser unit: 30-50L/min refilling flow, with 15m refueling hose
Pump: 40/45 fuel pump
Valve: 1 pcs DN50 gravity discharge valves
Description
Description

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp/Wechat: +8618307220638

E-mail: [email protected]

Http://www.cnclwgroup.com

Add: South Suburb Chengli Automobile Industry Park, Suizhou City, Hubei Province, China



【Chassis Parameters】

Dongfeng 4x2 chassis, right hand drive cabin, condition new, 3950mm wheelbase, Cummins 170HP Euro3 diesel engine, Fast 8-speed transmission, 9.00-20 nylon tires, with one spare tire, 3.6 ton front axle, 9 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.



【Upper Structure Parameters】

CLW5140GJYD3 Dongfeng 10,000 liter fuel dispenser truck, carbon steel tank body, with single tank compartment, with 1 pcs manhole cover, 1 pcs gravity discharge ports, with 1 pcs safety valve foot valve;  with Saike(Bolai) large flow fuel dispenser,  40~50L/min refiling flow, with a 15m refilling hose reel; with 40/45 fue pump, pump-inlet and pump-outlet function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.



【Vehicle Basic Parameters】

Vehicle Basic Specifications
Vehicle Model CLW5141GJYD3 Volume of Tanker 10000 liter
Chassis brand Dongfeng 4x2, RHD
New or Used Condition new
Overall dimension 7560x2500x2980mm Cargo Box Dimension  -
Gross weight 14500 kg Rated Weight 6900 kg
Curb weight 8600 kg Wheelbase 3950mm
Axle No. 2 Cab Seat No. 3 people
Axle Load 3600/9000 (kg) Fuel Type Diesel
Engine

Cummins 170HP Euro3

Steering System LHD, power aissist steering
Transmission Manual, FAST 8-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension Multi Leaf Springs Tire Model 9.00-20 nylon tires
Fuel Tank 160 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Type Fuel delivery
Volume of Tanker 10,000 liter
Medium Gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products Material of Tanker Carbon steel
 Manhole 1 pcs, aluminum alloy manhole cover Fuel Discharge Valve

2 pcs, pump inlet and pump outlet

 Safety Valve Bottom emergency cut off valve, breathing valve, anti-overflow probe Pump

1 unit, 40/45fire pump

Pump inlet and pump outlet

Flow Meter

Optional  Level Guage Optional

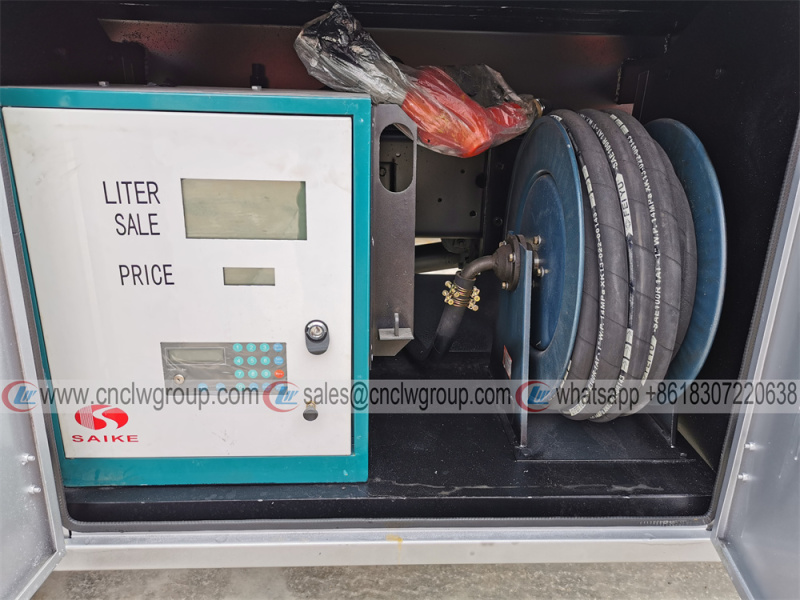

Refueling Device

Tax control computer dispenser unit + Refueling nozzle with 15 meter thick hose reel

Safety System

1. Foot emergency cut-off valve;

2. Breathing valve;

3. Anti-overflow probe;

4. Static conductive wire reel;

5. Fire extinguisher.



















*Visit and subscribewww.cnclwgroup.com for more details about Dongfeng 10000 liter fuel tank truck and Fuel Tank Truck Series. If you need any help, send us a meesage to [email protected] or directly contact us thru whatsapp +8618307220638 for instant communication.
