Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tank truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc. Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.
【Chassis Parameters】
Cab chassis of Dongfeng 10000 liter drinking water tank lorry, condition new, 3 seats with a sleeper, 3950mm wheelbase, 170 or 190HP Euro 3 dieseI engine, manual 8-speed transmission, 6+1 pcs 9.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】
Superstructure of Dongfeng 10000 liter drinking water tank lorry
- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

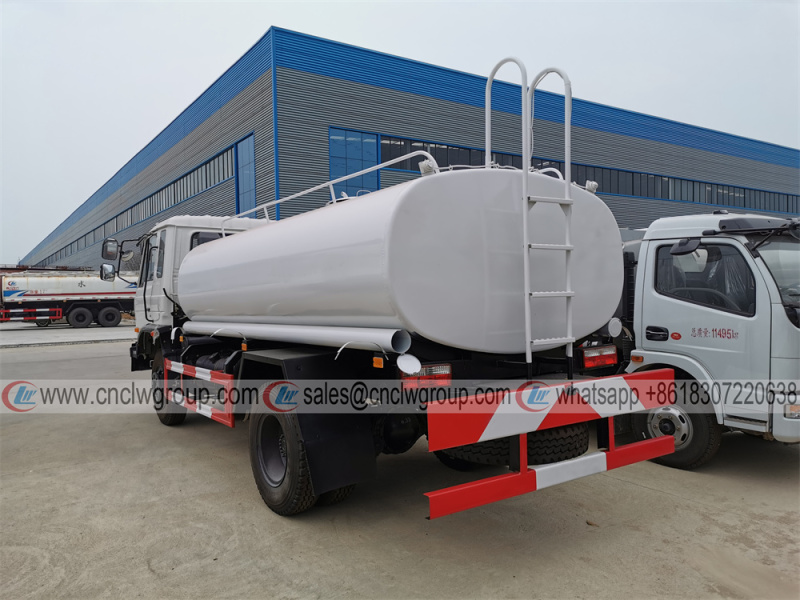

- 10000 liter stainless steel 304 tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;
- with 60m3/h flow water pump;

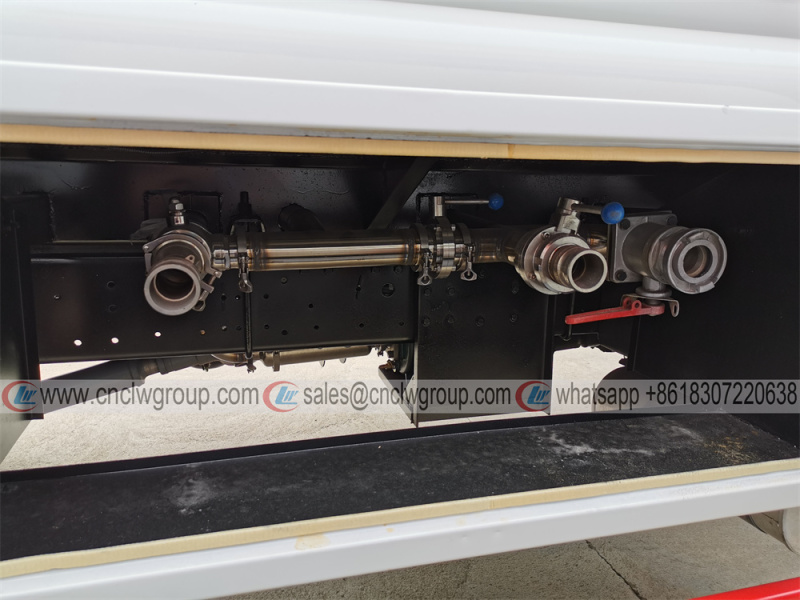

- with stainless steel 304 made pipeline/discharge valve/hydrant joints, etc.
Specifications of Dongfeng 10000 liter drinking water tank lorry:
Product Model | CLW5160GSSD3 drinking water lorry |
New or Used | New |
Overall dimension | 7350x2500x2950mm |
Gross weight | 16000kg |
Curb weight | 6850kg |
Chassis brand | Dongfeng |
Wheelbase | 3950mm |
Cab | Flat roof, 3 seats with a sleeper, air conditioning(optional) |
Transmission | Manual, 8-speed forward and 1 reversinf |
Front Axle | 5 ton |
Rear Axle | 10 ton |
Brake | Air brake, |
Tire | 6+1 pcs, 9.00R20 16LT radial tire |
Max speed | 90km/h |
Engine | Cummins |
Power | 190HP |
Displacement | 5900cc |
Emission standard | Euro 3 |
Tank volume | 10000 liter |
Tank material | stainless steel 304 |
Discharge valve | stainless steel 304, DN50mm or DN65mm |
[Multi-directional Images of Dongfeng 10000 liter Drinking Water Lorry]

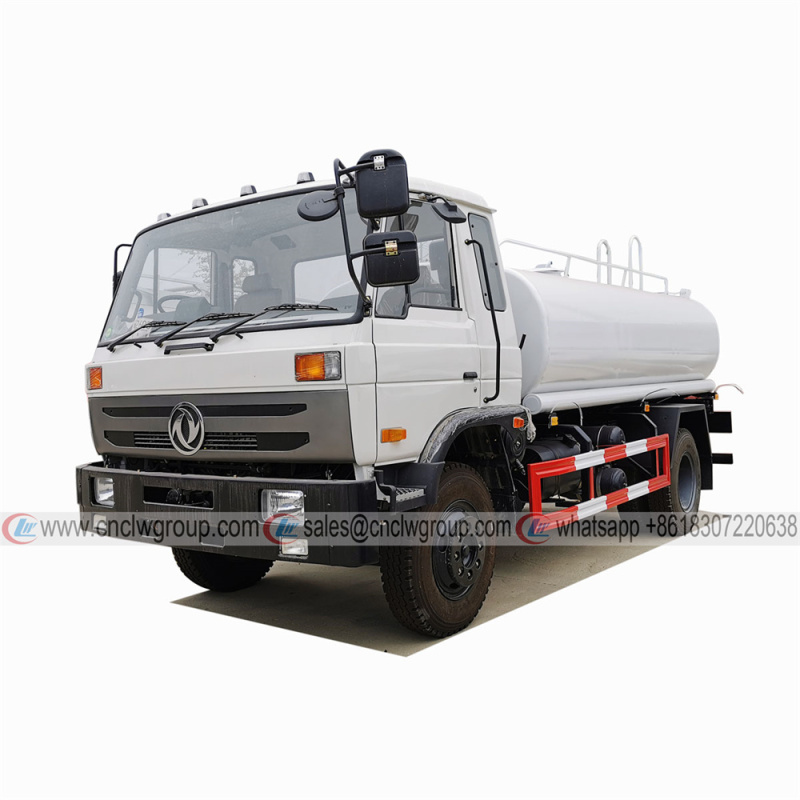

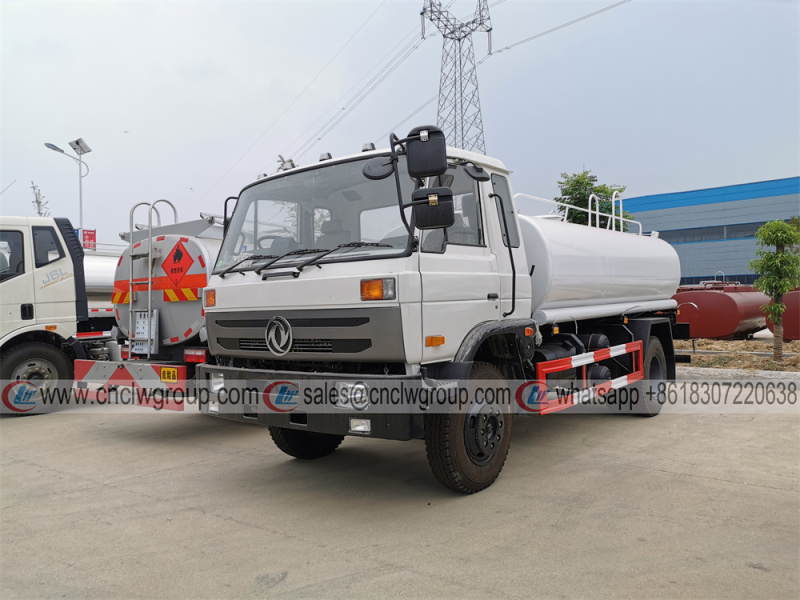

Dongfeng 10000 liter drinking water tank lorry
Dongfeng 10000 liter drinking water tank lorry
Dongfeng 10000 liter drinking water tank lorry
Description of Dongfeng 10000 liter drinking water tank lorry
Structures of Dongfeng 10000 liter drinking water tank lorry:
Manufacture progress of Dongfeng 10000 liter drinking water tank lorry:
Packing and shipping method of Dongfeng 10000 liter drinking water tank lorry:
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
