Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tank truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc. Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.
【Chassis Parameters】
Cab chassis of Dongfeng RHD 4x4 4WD 10000 liter electric water cannon water bowser sprinkler truck, Dongfeng 4x4 4WD chassis, time-sharing four-wheel drive, new cabin, condition new, 3 seats with a sleeper, 3950mm wheelbase, Cummins 170HP Euro3 dieseI engine, manual 8-speed transmission, with time-sharing transfer case, 6+1 pcs 9.00R20 tires, with one spare tire, 3.6 ton front axle, 9 ton rear axle, air brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】
Superstructure of Dongfeng RHD 4x4 4WD 10000 liter electric water cannon water bowser sprinkler truck
- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;
- 10,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;
- with 60m3/h flow water pump;
- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;
Specifications of SAIC-IVECO-Hongyan 6x6 20000 liter water tanker delivery truck:
Vehicle Parameters | Model | CLW5140GSSD3 |
Type | RHD, 4x4 | |
New or Used | New | |
Overall dimension | 7650x2500x3250mm | |
Gross weight | 14500kg | |
Curb weight | 6800kg | |
Chassis Parameters | Chassis brand | Dongfeng |
Wheelbase | 3950mm | |
Engine power | Cummins 170HP | |
Cab | DF145 classical cabin, 3 seats, with a sleeper, AM/FM Radio MP3, cab front tilt | |
Transmission | Manual, 8-speed forward and 1 reversing | |
Transfer case | Time-sharing transfer case | |
Front Axle | 3.6 Ton | |
Rear Axle | 9 Ton | |
Brake | Air brake, exhaust brake | |
Tire | 6+1 pcs, 9.00R20 radial tire | |
Max speed | 90km/h | |
Engine | Brand | Cummins B170-33 |
Power | 125kW / 170HP | |
Displacement | 5900cc | |
Emission standard | Euro 3 | |
Superstructure | Tank volume | 10,000 liter |
Tank material | Carbon steel with anti-corrosion treatment | |
Front spraying | 2 pcs nozzles, manual or auto controlled | |
Rear spraying | 2 pcs nozzles, manual or auto controlled | |
Side spraying | 2 pcs nozzles, manual or auto controlled |
|
Water cannon | 1 pcs, 360° slewing, shot 28-35 meters | |
Shot of spraying nozzle | 12 - 16 meters | |

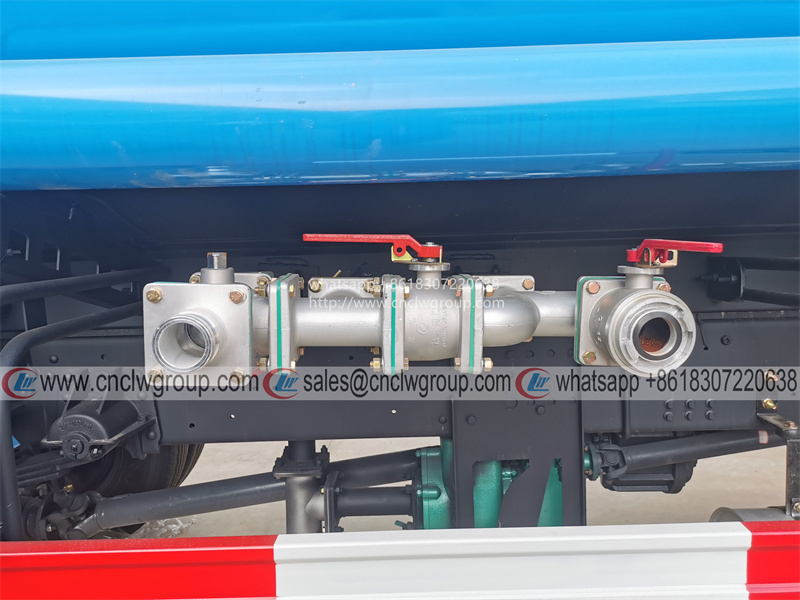

Valve | 2 pcs, discharge valve + fire hydrant joint | |
Electric Water Cannon | Position: front mounted Type: electric control Rotate: horizontal 360° vertical -45° ~ +60° Jet range: 28-35 meter Water shape:Can spray water column, shower, drizzle, mist Control: control in drive cabin |

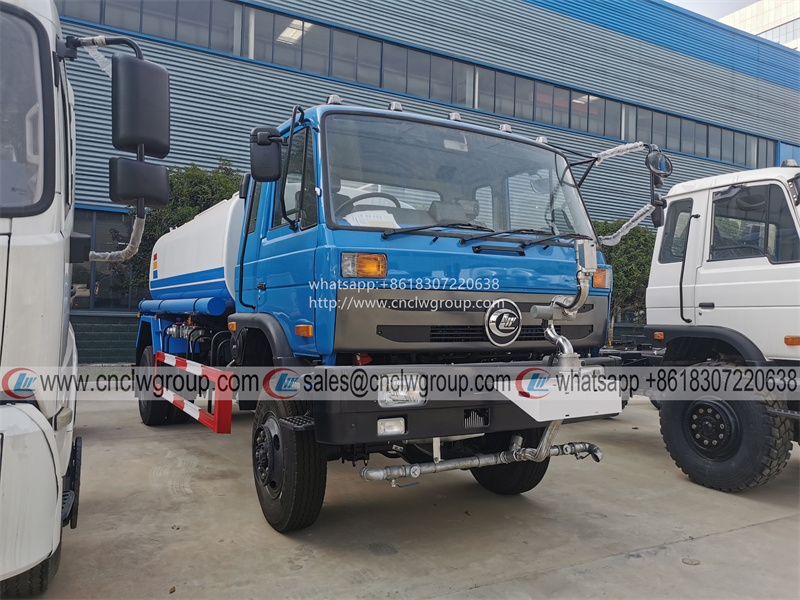

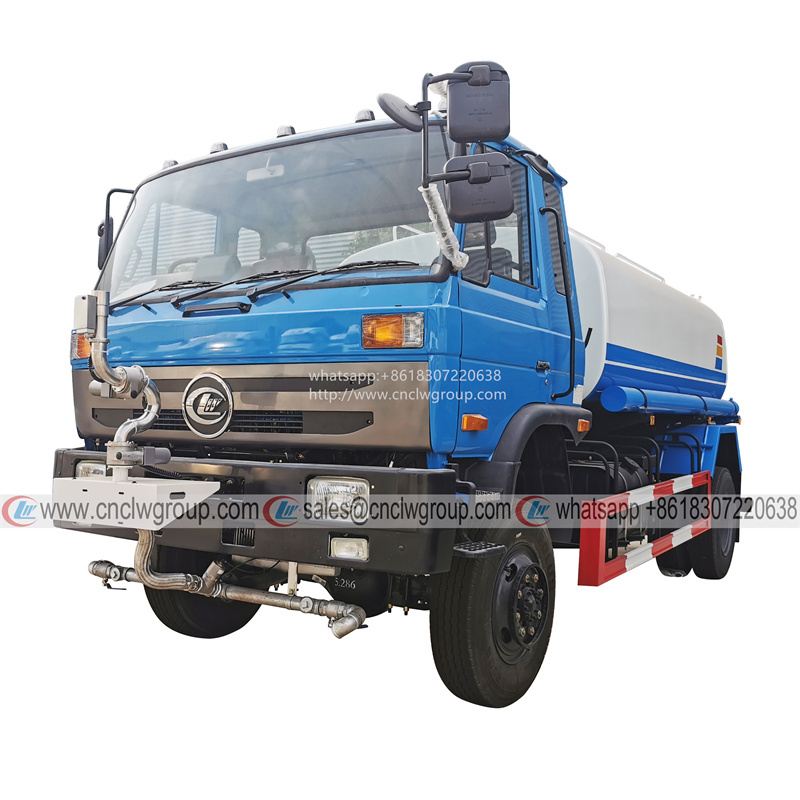

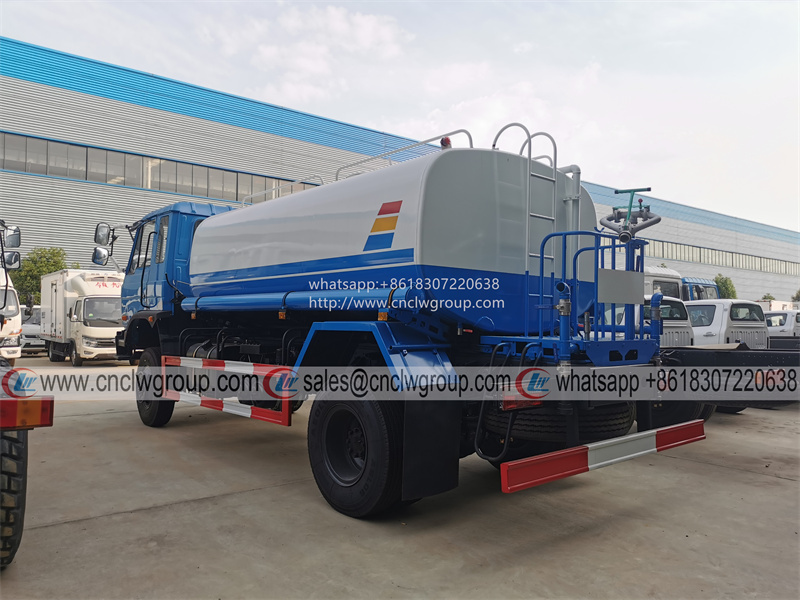

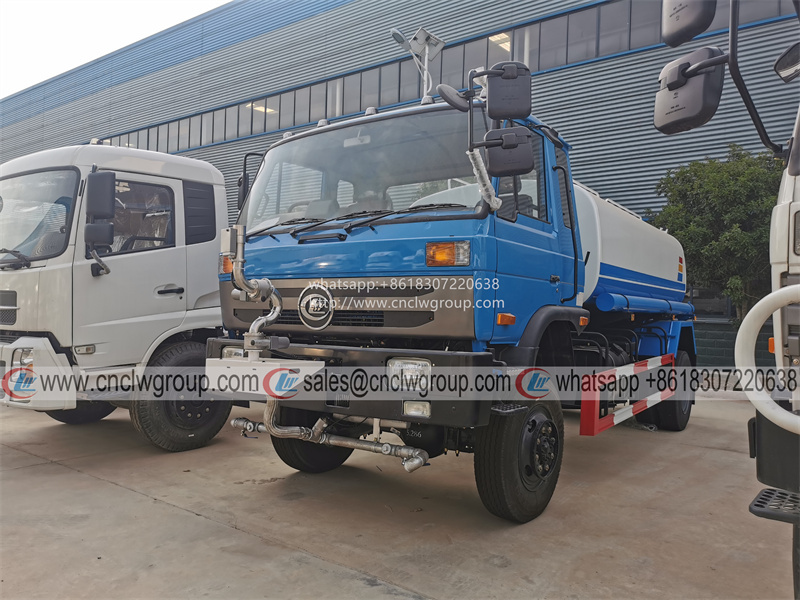

[Multi-directional Images of Dongfeng RHD 4x4 Water Bowser Sprinkler Truck]
Dongfeng RHD 4x4 4WD 10000 liter electric water cannon water bowser sprinkler truck
Dongfeng RHD 4x4 4WD 10000 liter electric water cannon water bowser sprinkler truck
Dongfeng RHD 4x4 4WD 10000 liter electric water cannon water bowser sprinkler truck
Water Filling Method of Dongfeng RHD 4x4 4WD 10000 liter electric water cannon water bowser sprinkler truck:
Manufacture process of Dongfeng RHD 4x4 4WD 10000 liter electric water cannon Water Bowser Sprinkler Truck:
Packing list of Dongfeng RHD 4x4 4WD 10000 liter electric water cannon water bowser sprinkler truck
Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System
In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.
◆Training Service
Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.
◆Warranty Commitment
Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.
◆24 Hours Service
The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.
◆Rescue Service
When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.
◆Customer Return Visit
Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.
Order Process
①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.
②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).
③: Arrange production: Our company arranges workshop production according to the contract requirements.
④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!
Answers to the Questions that Customers Care About before Purchasing?
(1) Free maintenance plan and period?
1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.
(2) What is the price method of free post-parts supply?
1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.
(3) After-sales service method?
The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.
(4) Technical training program?
The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.
(5) How to transport and load the vehicle?
According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.
(6) What is the time to pick up the car at the factory?
Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)
(7) Can't we go to China abroad? Want to see the car to see the factory how to do?
We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
