【Chassis Parameters of Dongfeng RHD Truck Mounted Crane】

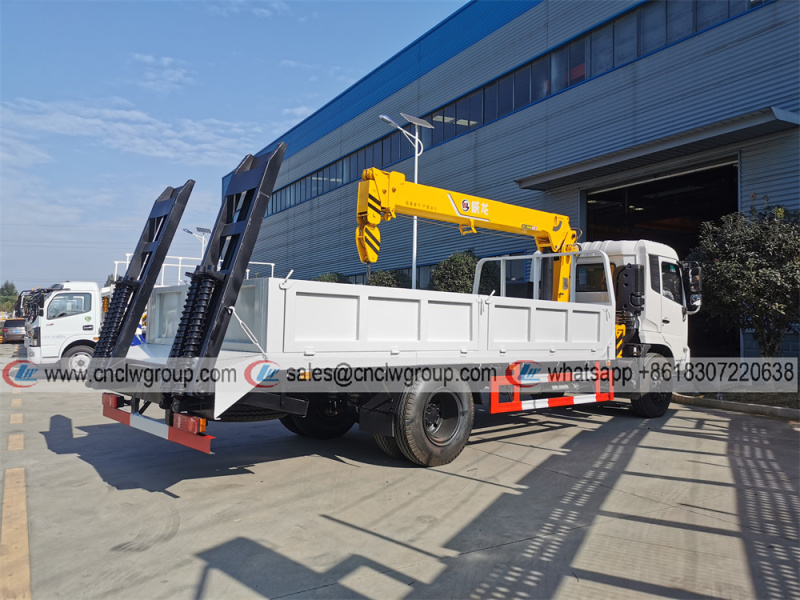

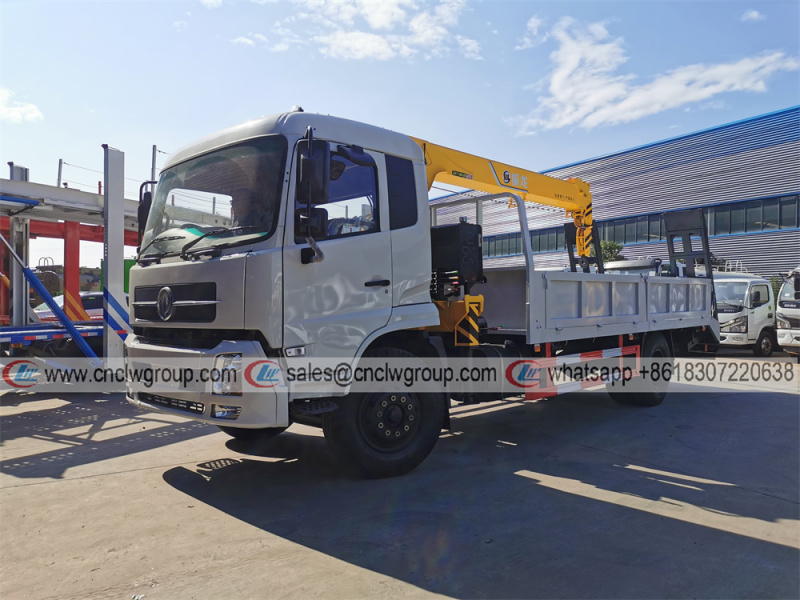

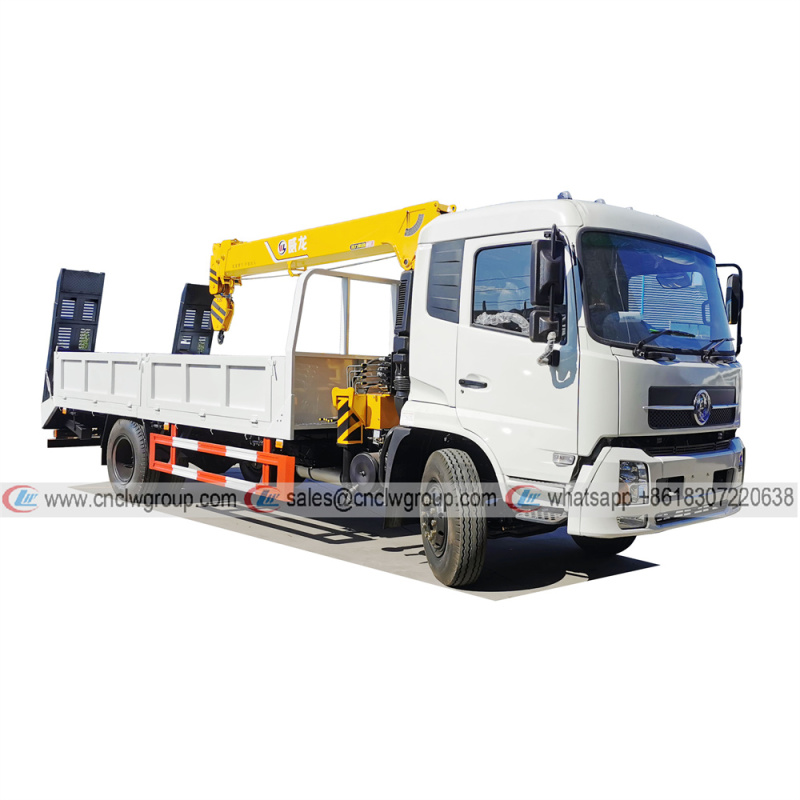

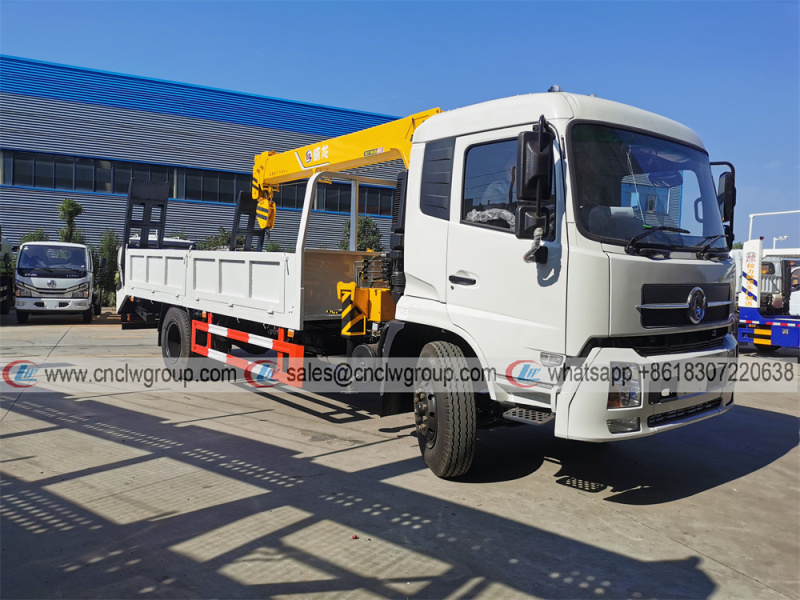

Chassis specs of of Dongfeng RHD Flatbed Truck Mounted Crane: Dongfeng KingRun 4X2 chassis, condition new, 5000mm wheelbase, Cummins 170HP Euro3 dieseI engine, FAST 8-speed transmission, 10.00-20 radial tires, with one spare tire, 3.6 ton front axle, 9 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters of Dongfeng 4x4 Truck Mounted Crane】
Crane specs of of Dongfeng 4x2 Truck Mounted Crane: SQ5SA3 5 tons crane, 4-section straight extension arm, maximum lifting height 12.8 meters, maximum working radius 11.2 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.
Cargo box type: side wall fence cargo box, 5600x2300x550mm, 3mm side, 4mm bottom plate.
【Vehicle Basic Parameters of Dongfeng 4x2 Flatbed Truck Mounted Crane】
| Model | CLW5140JSQD3 |
| Chassis brand | Dongfeng |
| Wheeldrive | 4x2, RHD |
| New or Used | New |
| Overall dimension | 9000x2500x3750mm |
| Cargo box | 5600x2300x550mm |
| Gross weight | 14500kg |
| Curb weight | 8600kg |
| Load | 6000kg |
| Wheelbase | 5000mm |
| Engine power | Cummins B170-33 170HP Euro3 |
| Fuel type | DieseI |
| Transmission | manual, FAST 8-speed |
| Brake | air brake |
| Axle load | 3.6 tons / 9 tons |
| Tire | 6+1 pcs, 10.00-20 radial tires |
| Max speed | 90km/h |
【Crane Parameters of Dongfeng 4x4 Truck Mounted Crane】
| Model | SQ5SA3 |
| Brand | CLW |
| New or Used | New |
| Max lifting weight | 5 tons |
| Max torque | 125 kN.m |
| Max lifting height | 12.8m |
| Max working radius | 11.2m |
| Recommand oil pressure | 20MPa |
| Slewing angle | 360 degree continuous slewing |
| Outrigger span | 2280mm ~ 5300mm |
| Outrigger | Front hydraulic extension outrigger |
| Control | Double side linkage operation |
| Special | Remote throttle, lighting, leveling bubble, etc |
For more details of Dongfeng 4x4 Truck Mounted Crane, you can directly contact us for instant communication together, we will help you.
