Exporting Ford Transit Diesel Mid-wheelbase Mid-roof hospital ambulance patient transport ambulance van car for sale

- Ford Transit Mid-axle Mid-roof Diesel Ambulance
- Crew no.: 8 people
- Engine: 90kW, 2.0L, diesel
- Stretcher, Medical Cabinet, Oxygen Cylinder, etc.
- Whatsapp/Wechat:+8618307220638
- Email:[email protected]
- Http://www.cnclwgroup.com

Ford New Transit Mid-Wheelbase Mid-Roof Negative Pressure Monitoring Ambulance (Diesel Country VI,

1. Product Catalog

No. Product Name Product Model
1 Ford New Transit Mid-Wheelbase Mid-Roof Negative Pressure Monitoring Ambulance (Diesel Country VI, MT) CLW5040XJHMK6

2. Product Description
This CLW5040XJHMK6 negative pressure ambulance is a negative pressure monitoring ambulance professionally designed based on the chassis of "Jiangling JX6533TB-M6 light van". Equipped with functional equipment such as stretcher, infusion, nursing, oxygen supply, power supply, negative pressure disinfection, ventilation, lighting, warning, etc. Through the negative pressure disinfection device, the air pressure in the medical cabin is lower than the external atmospheric pressure, and a pressure difference of not less than 15pa is quickly established. The medical cabin has a reasonable layout and compact structure. The cabin adopts a three-dimensional layout with the left and right layout as the main and the upper and lower layout as a supplement. The operation and operation are simple and convenient. The needs of long-term outdoor operations such as first aid and transport”.

3. Vehicle Specifications & Standard Configurations

Technical Requirement
Modified base car (chassis car): Ford's new Transit mid-wheelbase mid-roof diesel Euro6 MT (manual transmission)
Appearance color: white/red
Basic Specifications
Gross Vehicle Weight (kg) 3510
Crew No. 8 people (stretcher included)
Wheelbase (mm) 3300
Overall Dimension(L x W x H) (mm) 5341x2032x2470
Medical Patient Compartment (mm) 2620x1700x1740
Minimum Ground Clearance (mm) 141
Maximum Speed (km/h) 156
Engine Model DURATORQ4D206H
Engine Rated Power (kW) 90
Engine Displacement (ml) 1998
Emission Compliance Euro VI
Front/Rear Track (mm) 1736/1720
Transmission Manual, 5 Forward and 1 Reversing
Suspension type McPherson independent suspension/leaf spring dependent suspension
Steering System Rack and pinion, hydraulic power steering
Brake System Disc brake, hydraulic brake
Fuel Tank 80L
Drive type Front set front driving
Medical Warning Appearance
Front and rear wings The streamlined shape design integrated with the chassis can effectively reduce the wind resistance of the whole vehicle during high-speed driving; the stamping molding process is adopted, the molding consistency is good, the structural strength is high, and the cathodic electrophoresis treatment, the paint film is fine and bright, and corrosion-resistant.
Car Appearance The front bumper, body side walls and tailgate use self-adhesive body color strips, and the front hood, left and right front doors, and tailgate use reflective film emergency signs, which are brightly colored, eye-catching and effective warning; membrane to protect occupant privacy.
Warning Lights The front roof wing and rear wing adopt streamlined split embedded LED warning light assembly with patented design (polymer material injection molding), siren horn power 100W, wire-controlled controller, with LED light group inside.
Medical Cabin Ambulance Facility
Rescue System Automatic loading stretcher: The frame is made of high-quality aluminum alloy material, which is light and firm, and easy to operate. Through operation, the stretcher carrying the patient can be pushed into or pulled out of the ambulance quickly and smoothly. Adjustable within a 75-degree range, equipped with a patient's safety belt to facilitate the fixation between the patient and the stretcher.
Stretcher platform: Made of high-quality aluminum alloy material, assisting the stretcher to get on and off the car.
Infusion holder: Install 2 sets of foldable infusion holders on the top of the medical cabin.
Oxygen Supply System 2 10L aluminum oxygen cylinders, nominal pressure 15MPA; 2 German oxygen terminals, 1 medical oxygen inhaler, 1 ventilator interface, 2 double-gauge pressure regulating valves.
Medical Power Supply System
Inverter The 1000W power frequency pure sine wave inverter has strong load capacity and stable output power. In order to prevent the original car battery from running out of power, an additional 80Ah battery is installed. The medical cabin is equipped with 6 AC220V/2 DC12V outputs (can be connected to two/three holes, AC/DC dual purpose)
Cabin Lighting Install 2 LED lights and 2 infusion spotlights on the top of the medical cabin.
Disinfection System
UV disinfection lamp A UV disinfection lamp is installed above the side sliding door of the medical cabin, and the disinfection lamp has the function of timing delay on and off.
Ozone generator One set of ozone generator is installed in the medical cabin, which can generate ozone for disinfection in the cabin.
Negative Pressure System A negative pressure disinfection device is installed in the left cabinet of the medical cabin, including a medium-efficiency filter, a high-efficiency filter, a negative pressure fan, an ultraviolet disinfection lamp, etc. Disinfection by filters and disinfection lamps can eliminate 99.99% of germs and ensure that the air discharged from the car is pollution-free.
Air Cycling System
Air Conditioning/Hot Air 1 set of rear air conditioner and rear heater that can be independently controlled, cooling and heating are independently controlled, and the temperature in the medical cabin can be reasonably adjusted according to needs.
Medical Cabin Cabinet/interior Configuration
Partition Wall Assembly A set of partition walls made of new environmentally friendly materials are installed between the cab and the medical cabin, and a glass observation window is set on the partition wall to facilitate observation and communication between the front and rear cabins.
Cabinet assembly Install a set of long equipment cabinets made of new environmentally friendly materials.
Install a set of oxygen cylinder cabinets made of new environmentally friendly materials, which can accommodate two 10L oxygen cylinders.
Install 1 set of high polymer glass fiber SMC material hanging cabinet. The hanging cabinet adopts a lift-up door structure, which is convenient to open the cabinet door, and the cabinet door is transparent, which is convenient to observe the contents in the cabinet.
Install 1 set of long seat cabinet made of polymer glass fiber SMC material, including seat cushion, backrest, and two-point safety belt.
Medical Cabin Interior  Medical cabin interior: The interior of the medical cabin is integrally formed with a polymer composite mold, which is waterproof, mildew-proof, antibacterial, and easy to clean.
Medical cabin floor: It is made of integral new lightweight honeycomb material, which is non-slip, waterproof, mildew-proof, antibacterial and easy to clean.
Auxiliary Facilities
Single Seat A single seat is installed in front of the long seat cabinet on the right side of the medical cabin, with blue imitation leather fabric and three-point safety belt.
Reversing radar There are 4 radar probes installed on the rear bumper of the car.
Interphone Install a hands-free intercom system to facilitate communication and communication between the cockpit and medical cabin personnel.
Fire extinguisher The medical cabin is equipped with a set of 2kg dry powder fire extinguisher. The cab is equipped with a set of 1kg dry powder fire extinguisher.
Dirt bucket The medical cabin is equipped with a foot-operated dirt bucket with a lid.
Hand sanitizer box Install a hand sanitizer box behind the partition wall.
Safety handrail Install a long rail on the top of the medical cabin.
Emergency hammer Install 1 emergency hammer in the medical bay.
Optional Devices
Negative pressure isolation chamber - Domestic, portable, avoid cross-infection of patients with biological or radioactive particles and the external environment;
- Can be installed on the car stretcher bed, and used on the folding stretcher;
- the negative pressure isolation cabin works through an air filter with a battery, A directional flow is generated in the cabin, and a directional pressure difference can be generated in the cabin within 20 seconds, the pressure difference: ≥15Pa;
- the air flow in the negative pressure isolation cabin can be adjusted to a negative pressure state according to the patient's condition; the effective filtration efficiency is greater than 99.99%;
Driving recorder 1, driving monitoring, high-definition recording, video automatic coverage loop, with 32G card
Scoop stretcher The middle of both ends of the stretcher is equipped with a hinged clutch device, which can separate the stretcher into left and right parts. The length of the stretcher can be adjusted in 4 steps, and it can be folded for easy transportation and portability.
Side sliding door pedal Auxiliary side sliding door to get into the car.
Tailgate pedal Auxiliary tailgate to get into the car.

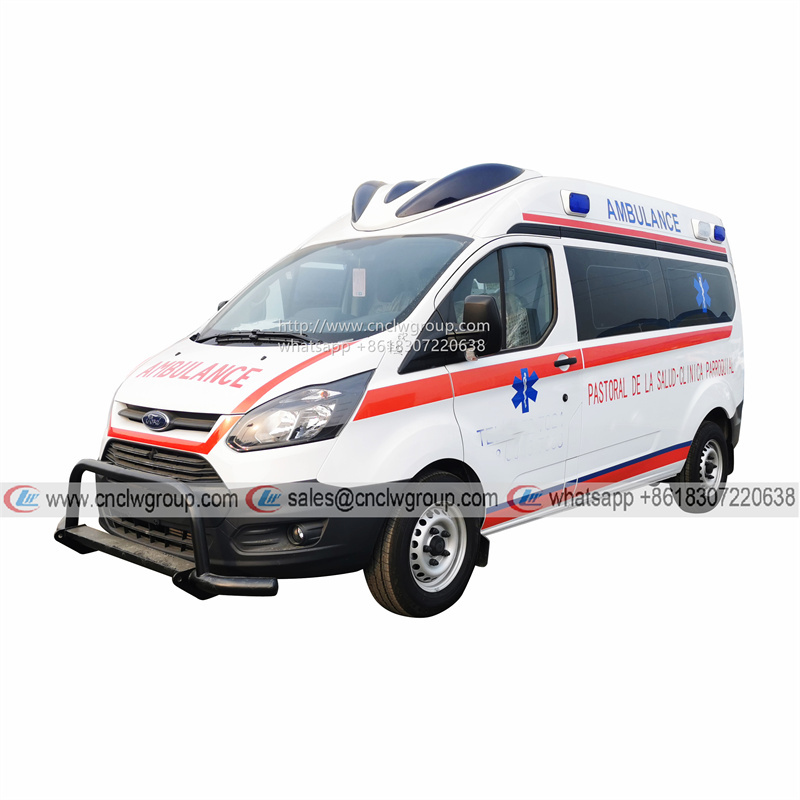

Ford new transit hospital ambulance -1

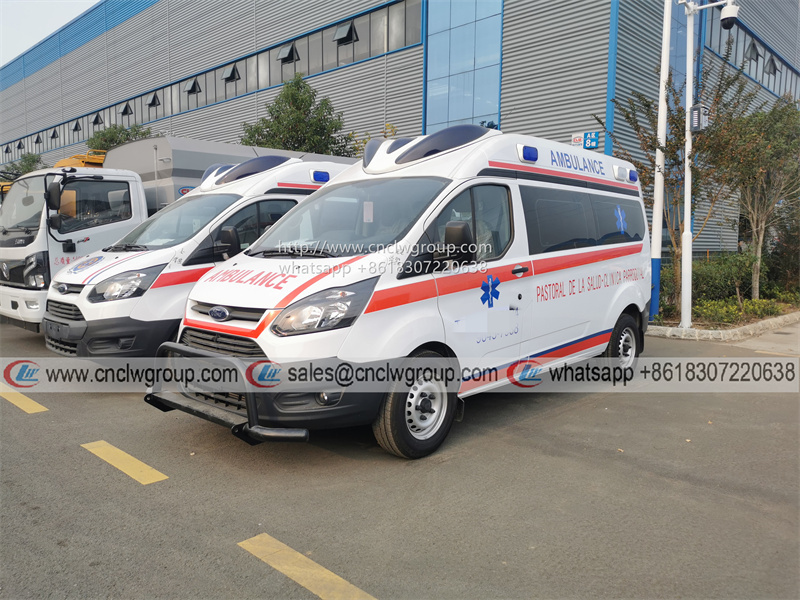

Ford new transit hospital ambulance -2
Ford new transit hospital ambulance -3
Ford new transit hospital ambulance -4

Ford new transit hospital ambulance -5

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
