Truck mounted crane, also called crane truck, truck installed crane, which is a lorry mounted a crane to lift and transport cargo without need to hire a crane, or more labours. it is a multi purpose vehicles and become very very popular for now.
【Chassis Parameters of FAW Truck Mounted Crane】

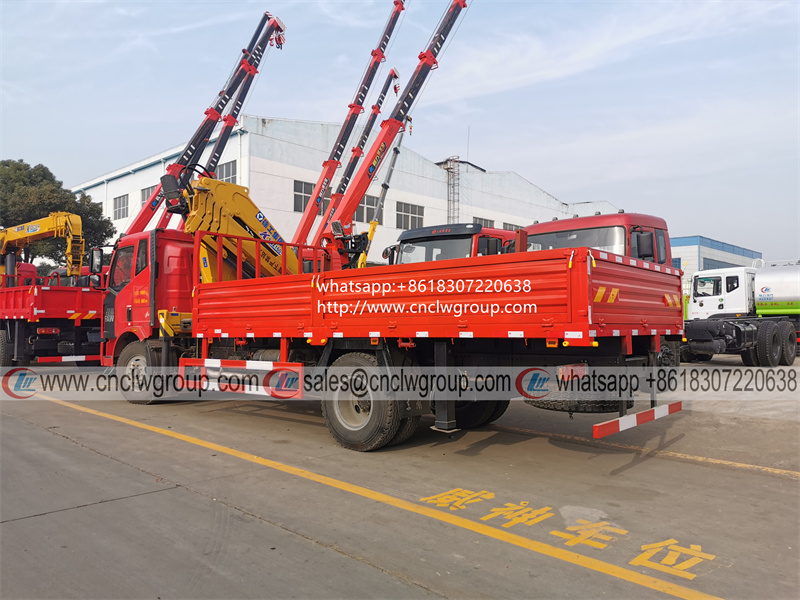

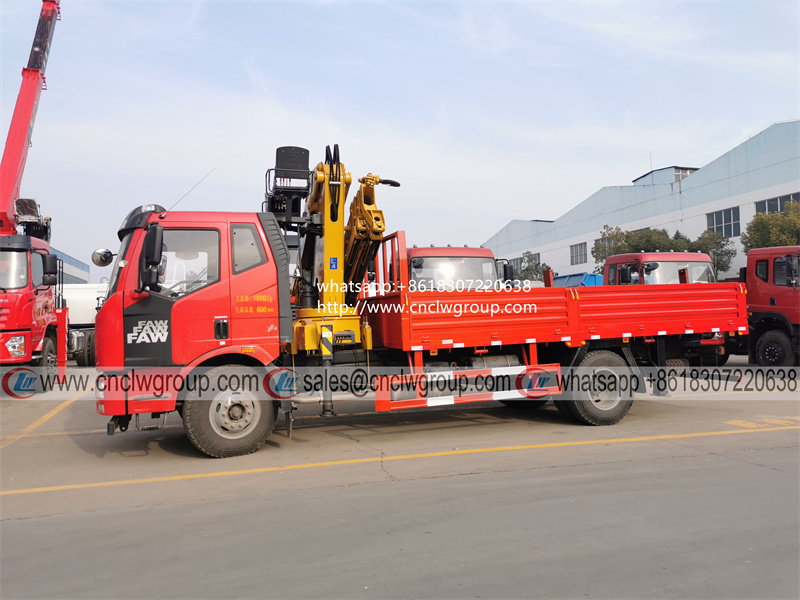

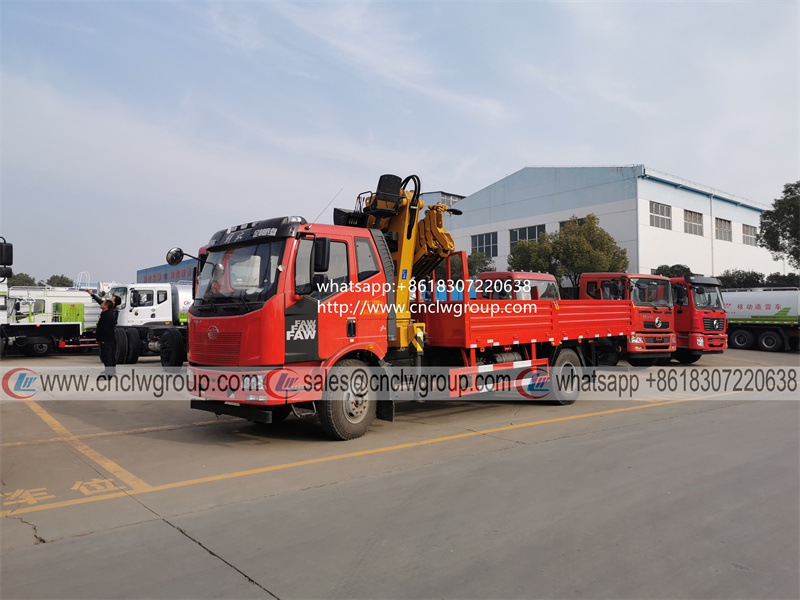

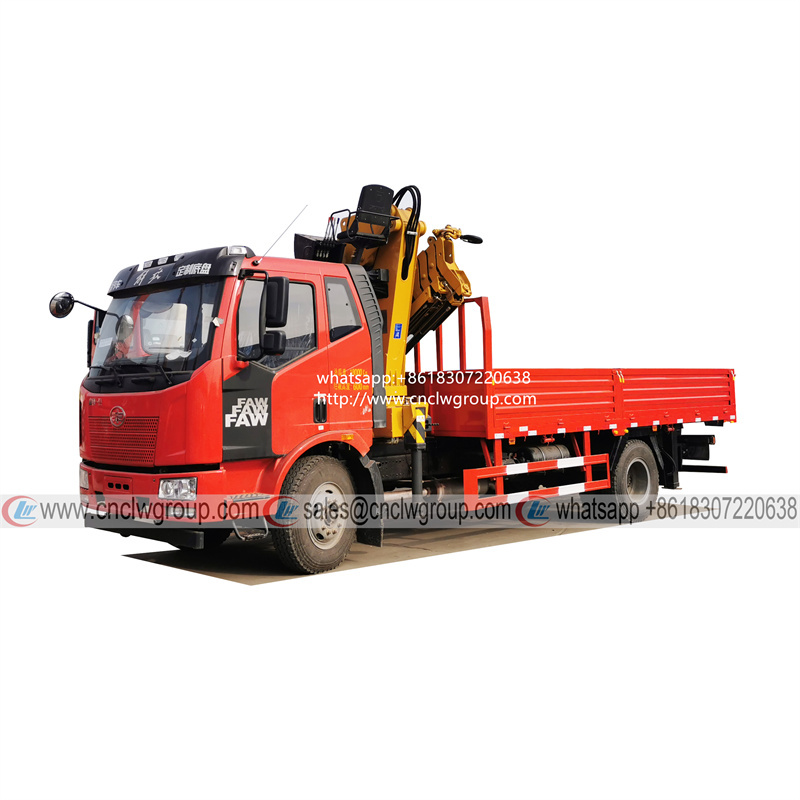

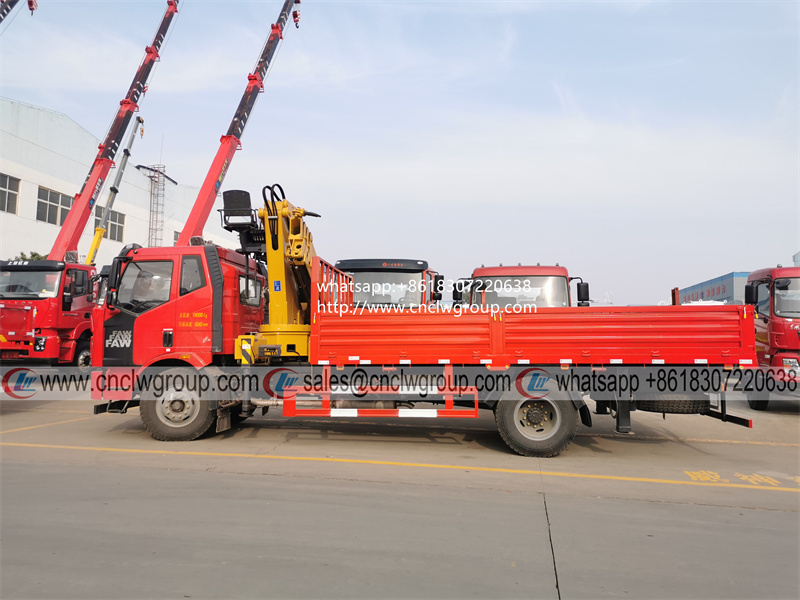

Chassis specs of FAW 6 wheel truck mounted xcmg 8 ton knuckle crane: FAW cab chassis, with a sleepe bed, condition new, 5800mm wheelbase, Deutz 220HP Euro5 dieseI engine, Manual 8-speed transmission, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton single reduction rear axle, air brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters of FAW Truck Mounted Crane】
Crane specs of FAW 6 wheel truck mounted xcmg 8 ton knuckle crane:
XCMG brand SQZ160 knuckle boom, 8Ton lifting weight
4-section knuckle arm, maximum lifting height 13 meters, maximum working radius 10.2meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.
Cargo box type: side wall fence cargo box, 6200x2350x600mm, 2mm side, 4mm bottom plate.
【Vehicle Basic Parameters of FAW Truck Mounted Crane】
Model | CLW5180JSQCA5 |
Chassis brand | FAW |
Wheeldrive | 4x2, LHD |
New or Used | New |
Overall dimension | 9550x2500x3750mm |
Cargo box | 6200x2350x600mm |
Gross weight | 18000kg |
Curb weight | 9850kg |
Load | 10150kg |
Wheelbase | 5800mm |
Engine power | FAW Deutz 220HP Euro5 |
Fuel type | DieseI |
Transmission | manual, 8-speed |
Brake | air brake |
Axle load | 5 tons / 10 tons |
Tire | 6+1 pcs, 10.00R20 |
Max speed | 90km/h |
【Crane Parameters of XCMG SQZ160 8T Knuckle Crane】
Item | UOM | Parameters |
Model | - | SQZ160 |
Max lifting weight | ton | 8 |
Max lifting moment | T.m | 16 |
Boom section | no.s | 4 |
Max lifting height | meter | 13 |
Max working radius | meter | 10.2 |
Slewing angle | ° | 360 |
Outrriger span | meter | 5.4 |
