First Automobile Works Jiefang 20feet 10 ton Fridge Van Reefer Vehicle Box Truck

- FAW (First Automobile) 10 ton Reefer Box Truck
- Insulation Box: 6200x2300x2400mm
- Refrigeration unit: -16℃ ~ 0℃
- Yuchai 160HP Euro3 diesel engine
- 6+1 pcs 9.00R20 radial tires

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp +8618307220638

E-mail: [email protected]


Add: South Suburb Chengli Automobile Industry Park,Suizhou City,Hubei Province,China


【Chassis Parameters】

FAW Jiefang 20feet 10 ton fridge van reefer box truck's FAW Jiefang flat cab chassis, condition new, 3 seats with a bed, 4700mm wheelbase, Yuchai 160HP Euro 3 dieseI engine, Manual 6-speed transmission, 9.00R20 radial tires, with one spare tire, 4.5 Ton front axle, 9 Ton rear axle, air brake, exhaust brake, power assist steering, etc.

Chassis brand options: ISUZU reefer box truck, Sinotruk HOWO reefer box truck, Foton reefer box truck, JAC reefer box truck, Dongfeng reefer box truck, SHACMAN reefer box truck, SAIC-HONGYAN-IVECO reefer box truck, Changan reefer box truck, etc.


【Upper Structure Parameters】

FAW Jiefang 20feet 10 ton fridge van reefer box truck: Insulation box size 6200x2300x2400mm, large box volume;  insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit of reefer box truck is China brand -16℃ capacity.

Refrigeration unit brand options of freezer van truck: American import brand Thermo King, Carrier brand;   China brand Hanxue, Kauxue, Huatai, Bingli, etc.


Model CLW5160XLCC3  reefer van truck
Chassis brand FAW(First Automobile Works)
Wheeldrive 4x2
New or Used New
Overall dimension(mm) 8500x2500x3300
Insulation box dimension(mm) 6200x2300x2400
Material of Insulation box Sanwitch structure: FRP panel + 80mm insulation + FRP panel
Refrigeration unit
China brand or Themro King Carrier -16℃~ 0 ℃
Gross weight(kg) 16000
Curb weight(kg) 6800
Load Weight(kg) 10-15 ton
Wheelbase(mm) 4700
Engine power Yuchai 160HP Euro3
Fuel type DieseI
Transmission Manual 6- speed
Brake Air brake
Axle load(front/rear) 4.5T / 9T
Tire 6+1 pcs, 9.00R20 radial tires
Max speed 90km/h

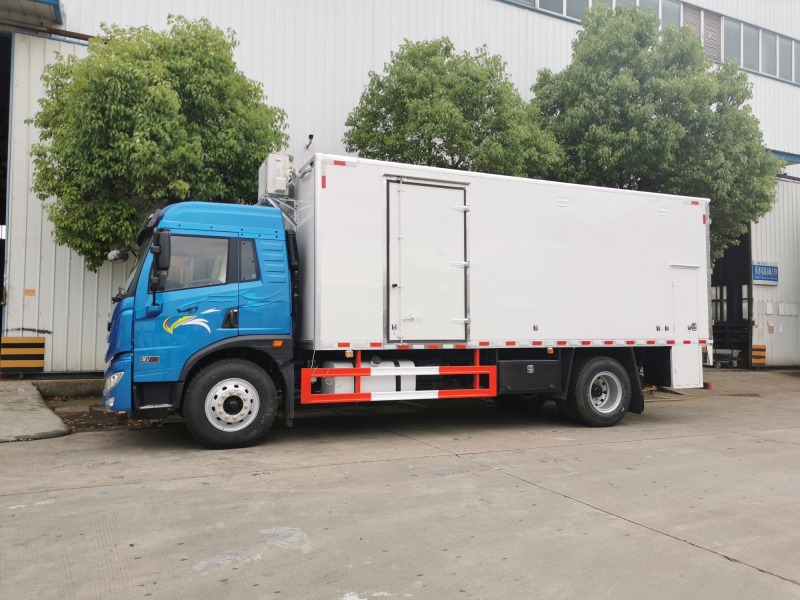

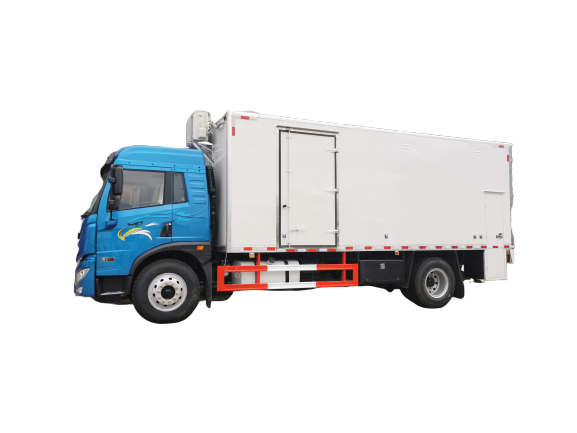

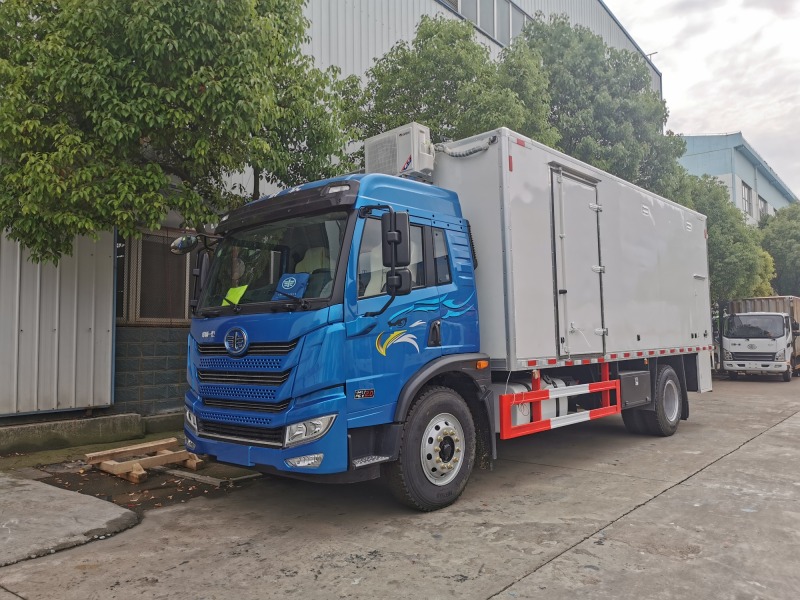

FAW Jiefang 20feet 10 ton fridge van reefer box truck

FAW Jiefang 20feet 10 ton fridge van reefer box truck

Main structures of FAW Jiefang 20feet 10 ton fridge van reefer box truck

Different devices and configurations you can choose for your FAW Jiefang 20feet 10 ton fridge van reefer box truck

the additional items specially for FAW Jiefang 20feet 10 ton fridge van reefer box truck

- For reefer van load capacity, we have 1 ton reefer van, 2~3 tons reefer van, 3~5 tons reefer van, 6~8 tons reefer van, 8~10 ton reefer van, 10~15 ton reefer van,15-20 ton reefer van,20-25 ton reefer van,25-30 ton reefer van,over 30 tons reefer van

- For reefer box truck brand, we have dongfeng reefer box truck,foton reefer box truck,isuzu reefer box truck,howo reefer box truck, shacman freefer box truck,jmc reefer box truck,jac reefer box truck,faw reefer box truck,kama freefer box truck,iveco reefer box truck,clw reefer box truck,hino reefer box truck,benz reefer box truck,volvo reefer box truck,etc.

- For fridge van reefer vehicle box length, we can produce from 2 meters to 16 meters long truck type or trailer type.

If you need reefer van truck or van, please contact us freely.

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
