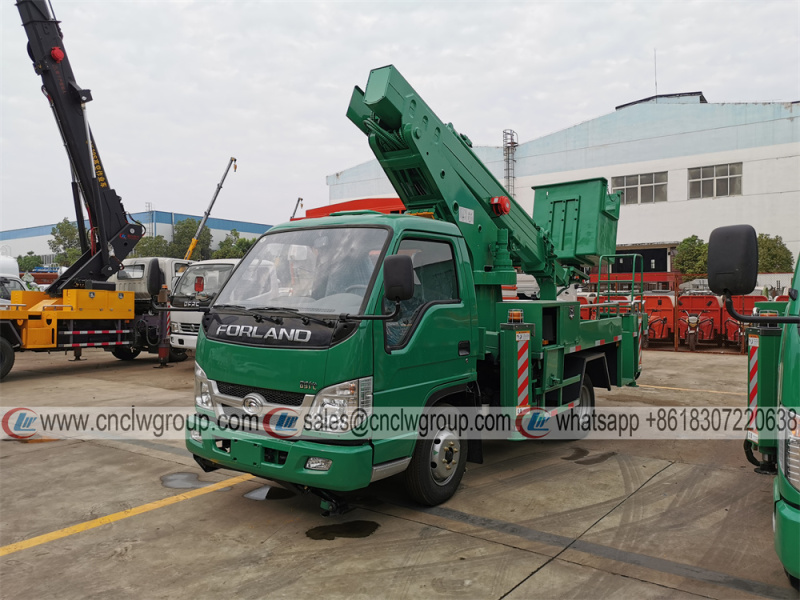

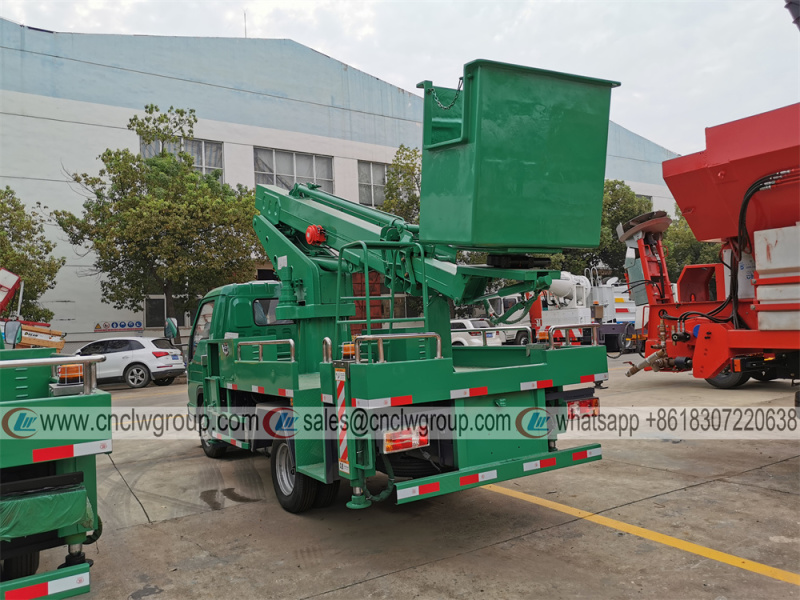

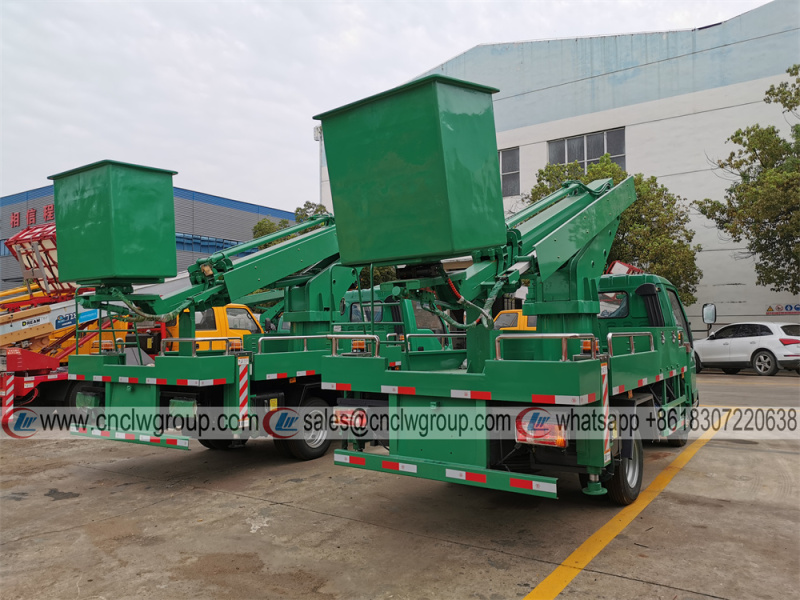

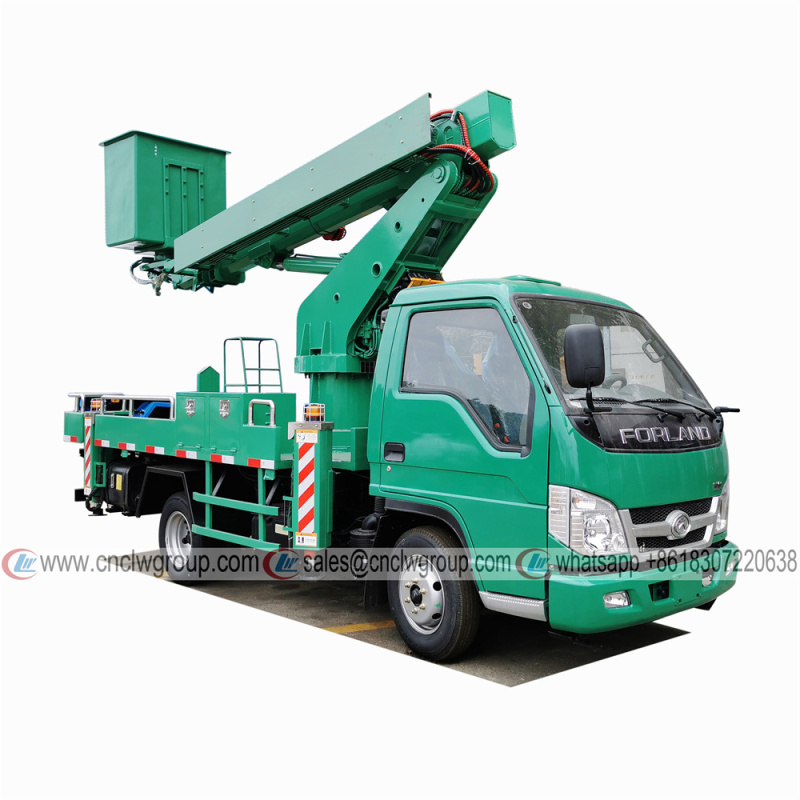

Forland 14m Telescopic Aerial Bucket Truck

- Forland 14m aerial work truck
- Quanchai 63HP Euro2 engine
- 12m working height, 360° slewing
- Basket 200kg load, 360° slewing
- Fiberglass insulated bucket
- 4 pcs hydraulic outriggers
- Remote controlled + manual levers

【Chassis Parameters

Chassis parameters of Forland 14m aerial bucket truck: Foton Forland cab  chassis, condition new, 3 seats, 3360mm wheelbase, Quanchai 63HP Euro2 dieseI engine, Manual 5-speed transmission, 6.50-16 tires, with one spare tire, 2 ton front axle, 4 ton rear axle, air brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Superstructure parameters of Forland 14m aerial bucket truck: Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • /Straight arm boom system, 3 section.

/Maximum working height 14 meters.

  • /Turntable 360° slewing.
  • /Basket 200kg load, size 1200x750x1140mm,  360° rotary.
  • /Control operation: computer + manual control levers + wireless remote control box(optional)
  • /4 pcs hydraulic outriggers.
  • /Engineering rotary lights to warn people.


Vehicle Basic Specifications
Vehicle Model  CLW5041JGKBJ2 Maximum Working Height  14 meters
Chassis brand  Foton Forland 4x2 New or Used  Condition new
Overall dimension 6350x2000x3350mm Cargo Box Dimension  -
Gross weight 4495 kg Rated Weight  -
Curb weight 4350 kg Wheelbase  3360mm
Axle No. 2 Cab Seat No. 3
Axle Load 2000/4000 kg Fuel Type Diesel
Engine Quanchai 63hp Euro2 Steering System LHD, power aissist steering
Transmission Manual 5- speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 6.50-16
Fuel Tank 90 liter Battery 24V
Max speed 80km/h
Superstructures Parameters
Model CLW GK14S Maximum Working Height 25 meters
Boom Type 4-section arm, telescopic arm Maximum Working Radius 16 meters
 Basket Dimension  1200x750x1200 mm Slewing Angle 360° continually rotary
 Basket Load  200kg  Outrigger Front V rear H shape hydraulic legs
Basket Slewing 360°  Outrigger Span

Horizontal 4.0 meter, Vertical 4.0 meters

Operation System

One set at down turntable position,   one set on upper basket.

Optional:  computer control system + wireless remote controller

Safety System

1. Whole vehicle automatically balance leveling real-time test;

2. Outrigger auto leveling, basket auto leveling;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.




























【Customers Feedback】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
