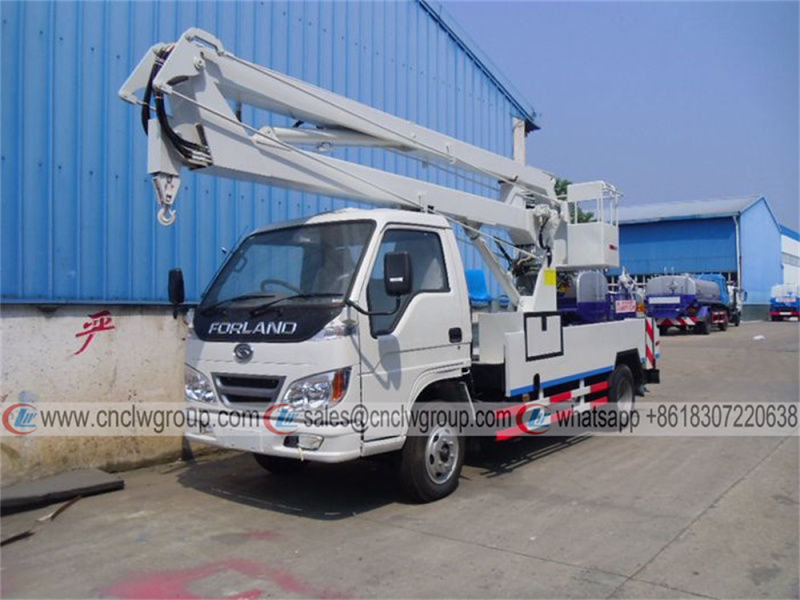

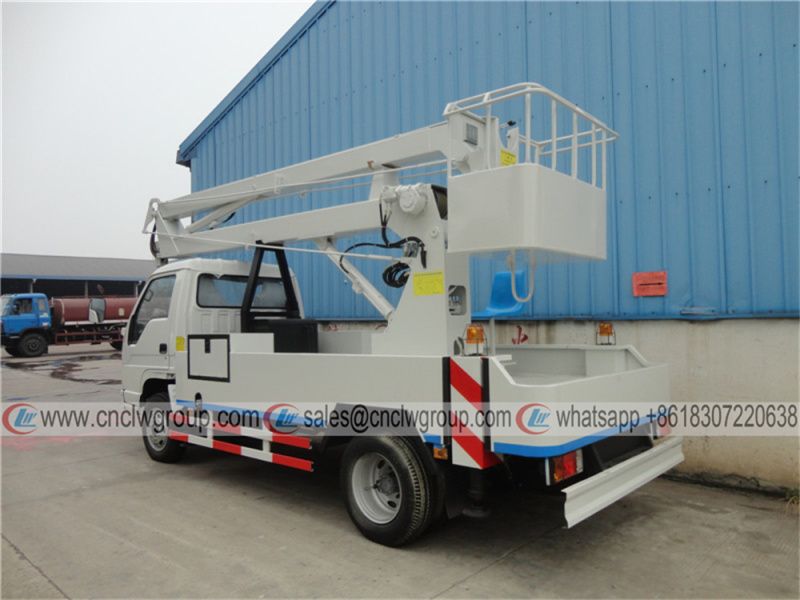

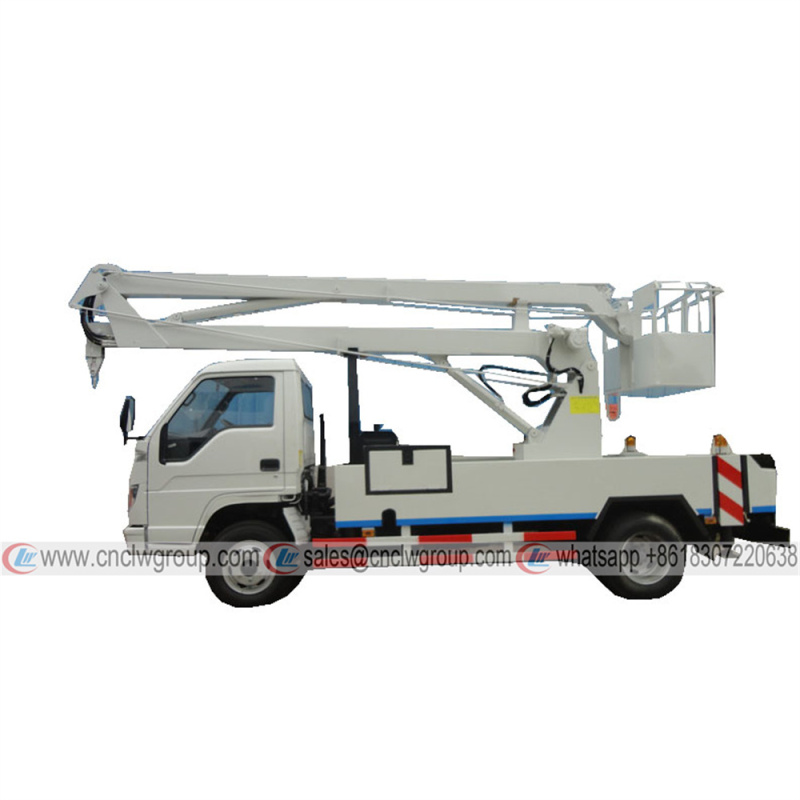

Foton 12m Knuckle Aerial Platform Truck

- Foton 12m knuckle aerial bucket truck
- 63HP Euro2 engine
- 12m working height, 360° slewing
- Basket 200kg load, ±90° rotary
- 4 pcs hydraulic outriggers

【Chassis Parameters】

Foton 12m knuckle arm aerial work truck: Foton Forland single cab chassis, condition new, 3 seats, 3360mm wheelbase, Quanchai 63HP Euro2 dieseI engine, Manual 5-speed transmission, 6.50-16 nylon tires, with one spare tire, 2 ton front axle, 4 ton rear axle, hydraulic brake, power assist steering, etc.


【Upper Structure Parameters】

Foton 12m knuckle arm aerial work truck: Knuckle arm aerial bucket trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • Knuckle arm boom system, 3 section
  • Maximum working height 12 meters
  • Turntable 360° slewing
  • Basket 200kg load, size 1000x760x1100mm,  ±90° rotary
  • Control operation: at turntable seat and in basekt
  • 4 pcs hydraulic outriggers
  • Engineering rotary lights to warn people


Vehicle Basic Specifications
Vehicle Model CLW5040JGKBJ2 Maximum Working Height 12 meters
Chassis brand Foton Forland 4x2 New or Used  Condition new
Overall dimension 6450x2000x3250mm Cargo Box Dimension  -
Gross weight 4495 kg Rated Weight  -
Curb weight 4250 kg Wheelbase  3360 mm
Axle No. 2 Cab Seat No. 3
Axle Load 2000/4000 kg Fuel Type Diesel
Engine Quanchai 63HP Euro2 Steering System LHD, power aissist steering
Transmission Manual 5-speed Clutch Single dry clutch plate
Brake Hydraulic brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 6.50-16 nylon tires
Fuel Tank 90 liter Battery 12V
Max speed 80km/h
Superstructures Parameters
Model CLW GKZ12 Maximum Working Height 12 meters
Boom Type 3-section arm, telescopic arm Maximum Working Radius 5.6 meters
 Basket Dimension 1200x760x1100 mm Slewing Angle 360°
 Basket Load 200kg  Outrigger Front H rear H shape hydraulic legs
Basket Slewing ± 90 degree Outrigger Span

Horizontal 3.2 meter, Vertical 3.6 meters

Operation System

One set at down turntable position,  one set on upper basket.

Safety System

1. Outrigger leveling bubble;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.


vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
