Foton 20,000 liter Fuel Tank Truck

FOTON Auman 6x4 20,000 liter Fuel Tank Truck
Engine: 340HP Euro3
Tir: 10+1 pcs 11.00R20 radial tire
Division compartment: 4 compartments (5m3+5m3+5m3+5m3)
Pump: 60/80 fuel pump
Valve: 4 pcs DN65 discharge valves
Manhole: 4 pcs Euro standard manhole
Description
Description

【Chassis Parameters】

FOTON Auman 6x4 heavy chassis, condition new, 4350+1350mm wheelbase, WEICHAI 340HP Euro3 dieseI engine, 12-speed transmission, 11.00R20 radial tires, with one spare tire, 6.5 ton front axle, 2x13 ton double reduction rear axle, air brake, power assist steering, power window, with air conditioning, etc.



【Upper Structure Parameters】

CLW5250GYYBJ3 Foton 6x4 20,000 liter fuel tank truck, carbon steel tank body, with 4 pcs division sub-compartments(5,000 liter+5,000 liter+5,000 liter+5,000 liter), with 4 pcs manhole covers, 4 pcs discharge valves, with 4 pcs safety valve foot valves, with 60/80 fue pump, pump-in and pump-out function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.



【Vehicle Basic Parameters】

Model CLW5250GYYDBJ3
Chassis brand FOTON
New or Used New
Overall dimension 9860x2500x3200mm
Gross weight 25000kg
Curb weight 11500kg
Load 20 tons
Wheelbase 4350+1350mm
Engine power WEICHAI 340HP Euro3
Fuel type DieseI
Transmission 10 / 12 speed gearbox
Brake Full air brake
Axle load 6.5/2x 13 tons
Tire 10+1 pcs, 11.00R20
Max speed 90km/h

Superstructure:

20cbm tank body, 5mm carbon steel, with 4 pcs division sub-compartments(5,000 liter+5,000 liter+5,000 liter+5,000 liter), with 4 pcs manhole covers, 4 pcs discharge valves, with 4 pcs safety valve foot valves, with 60/80 fue pump, pump-in and pump-out function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.

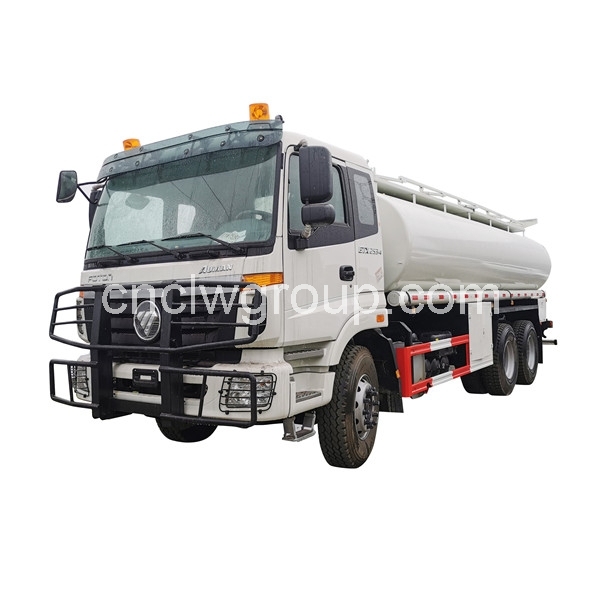

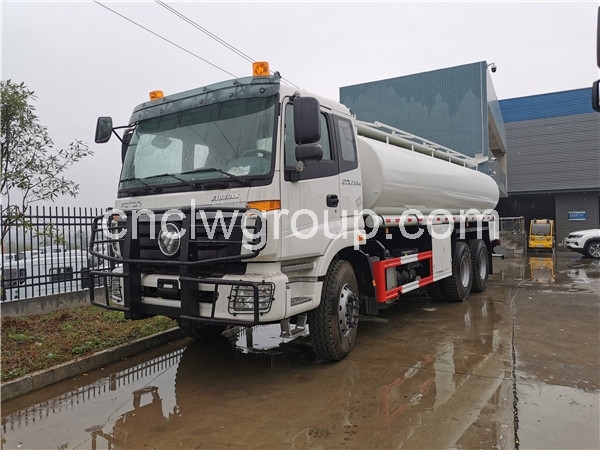

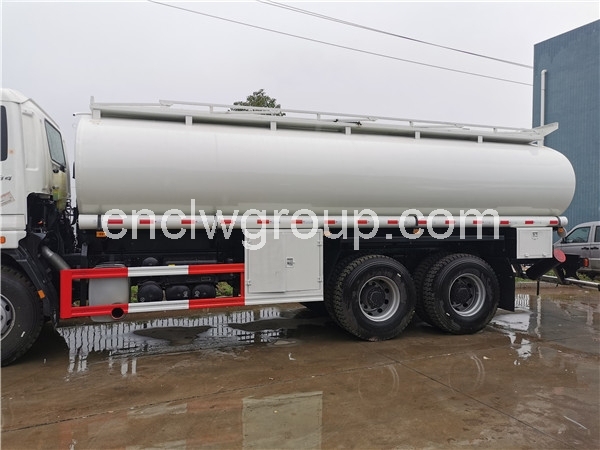

【Multi-directional Pictures】



As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
