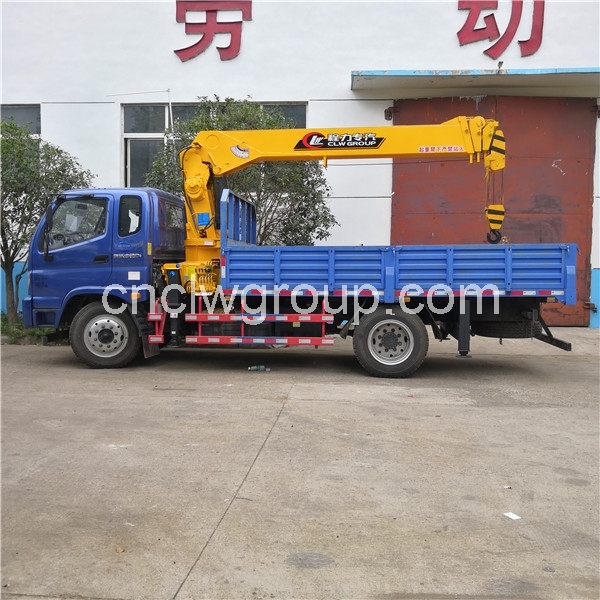

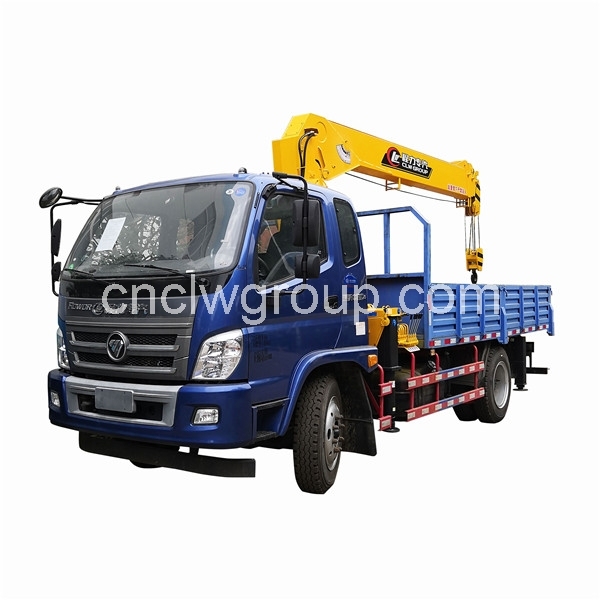

FOTON 4x2 Boom Truck mounted 4 Tons Crane

FOTON 4x2 Yuchai 130HP Euro3 truck
Tir: 6+1 pcs 8.25R16 radial tire
Flatbed size: 4800x2300x400mm
Crane Max Lifting Weight: 4 tons crane
Crane type: telescopic straight arm, 4 section
Max lifting height: 12.35 meters
Description
Description

【Chassis Parameters】

FOTON 4x2 chassis, condition new, 4200mm wheelbase, Yuchai 1230HP Euro3 dieseI engine, WLY 6-speed transmission, 8.25R16 radial tires, with one spare tire, 3.6 ton front axle, 8 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

CLW SQ4SA3 4 tons crane, 4-section straight extension arm, maximum lifting height 12.35 meters, maximum working radius 10.35 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.

Cargo box: 4800x2300x450mm, carbon steel, 2mm side, 3mm bottom.



【Vehicle Basic Parameters】

Model CLW5120JSQBJ3
Chassis brand FOTON
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 7820x2350x3350mm
Cargo box 4800x2200x500mm
Gross weight 11495kg
Curb weight 5800kg
Load 5-7 tons
Wheelbase 4200mm
Engine power Yuchai 130HP Euro3
Fuel type DieseI
Transmission WLY 6-speed
Brake air brake
Axle load 3.6 tons / 58 tons
Tire 6+1 pcs, 8.25R16 radial tires
Max speed 90km/h



【Crane Parameters】

Model SQ4SA3
Brand CLW
New or Used New
Max lifting weight 4 tons
Max torque 100 kN.m
Max lifting height 12.35m
Max working radius 10.35m
Slewing angle 360 degree continuous slewing
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc





As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
