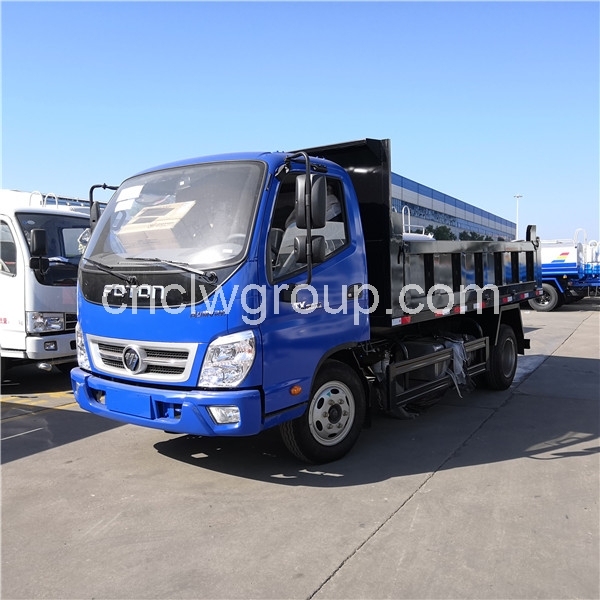

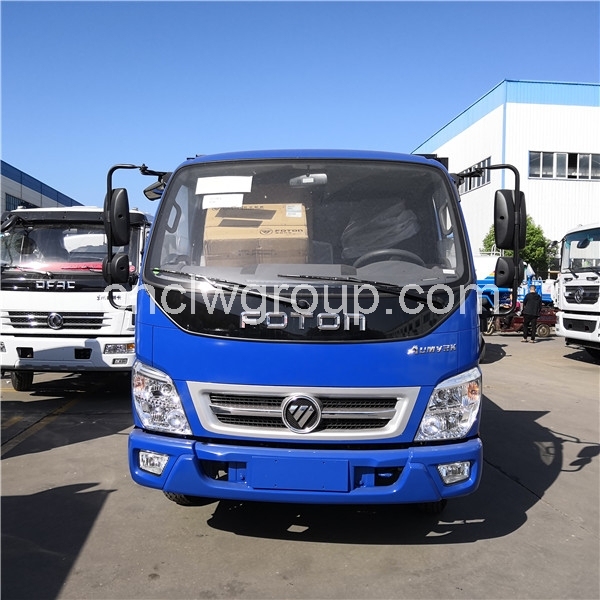

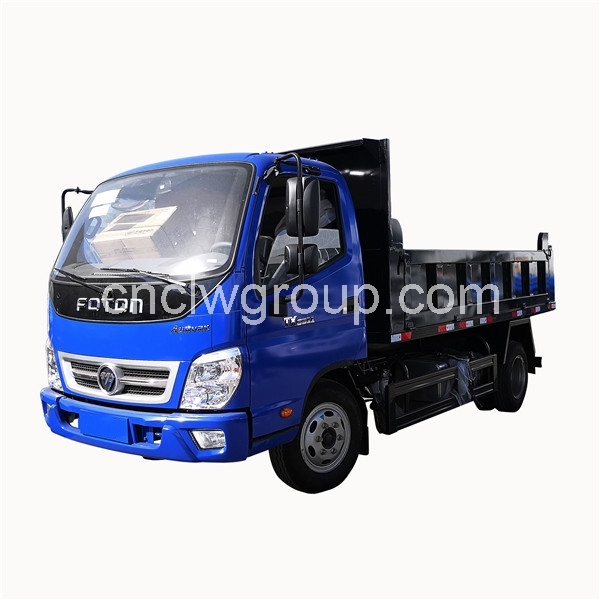

FOTON Aumark 4 Tons Dump Truck

- FOTON Aumark 4x2 4 TON Dump Truck
- Foton Power 108HP Euro3 engine
- 6+1 pcs 7.00R16 radial tires
- Dump Box: 3800x2000x600mm
- Unloading method of dump box: middle double cylinder lifting jack

【Chassis Parameters】

FOTON Aumark cab chassis, condition new, 3 seats, 3360mm wheelbase, Foton Power 108HP Euro 3 dieseI engine, Jiangling 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2.2 Ton front axle, 5-Ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

Dump box size 3800x2000x600mm, total 4.56 cubic meter box volume;  dump box material 3mm side wall, 4mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.


Model CLW5080ZZXBJ3
Chassis brand Sinnotruk HOWO
Wheeldrive 4x2, RHD
New or Used New
Overall dimension(mm) 5820x2150x2320
Dump box dimension(mm) 3800x2000x600
Material of dump box carbon steel, 3mm side, 4mm floor
Unloading method of dump box
middle double cylinder lifting jack
Gross weight(kg) 7600
Curb weight(kg) 3600
Load Weight(kg) 4 tons
Wheelbase(mm) 3360
Engine power Foton Power 108HP Euro3
Fuel type DieseI
Transmission Jiangling 5- speed
Brake Air brake
Axle load(front/rear) 2.2/5 tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
