【Chassis Parameters】
GEELY 3-5 ton EV range-extended pure electric refrigerated freezer van truck, which Geely's extended-range electric chassis adopts the gasoline extended-range power route. Volvo's 1.477L displacement engine is 60KW as the power for the range extender. The rated power of the drive motor is 50KW, and the peak power reaches 100KW. -140km, EVE brand 53.58kwh water-cooled battery, with a total cruising range of 600km. Standard fast charging interface, charging time only 0.6 hours.
The chassis adopts 2.5 ton front axle, 4 ton rear axle, 3/3+3 leaf spring suspension, 7.00R16 steel wire tires, front and rear drum brakes, 1995 wide-body cab, steering assist, automatic headlights, height adjustable; LCD Instrument panel, electric doors and windows, central locking, remote control key, 8-inch multimedia screen, car navigation, standard blind spot camera, reversing image, knob-type gear, parking brake, automatic parking, electronic handbrake.
Chassis brand options: Dongfeng pure electric refrigerated truck, ISUZU pure electric refrigerated truck, SHACMAN pure electric refrigerated truck, JAC pure electric refrigerated truck, HOWO pure electric refrigerated truck, FOTON pure electric refrigerated truck, KAMA pure electric refrigerated truck...
【Upper Structure Parameters】
GEELY 3-5 ton EV range-extended pure electric refrigerated freezer van truck: Insulation box size 4100x1900x2000mm, Large box volume; insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit of reefer van truck is China brand -15℃ electric type cooling system, equipped with electric standby system, 220V/1-phase or 380V/3-phase optional.
Refrigeration unit brand options of freezer van truck: American import brand Thermo King, Carrier brand; China brand Hanxue, Kauxue, Huatai, Bingli, etc.
Model | CLW5040XLCEVGL1 refrigerated truck |
Chassis brand | GEELY |
Wheeldrive | 4x2 LHD |
New or Used | New |
Overall dimension(mm) | 5995x2150x3050 |
Insulation box dimension(mm) | 4100x1900x2000 |
Material of Insulation box | Sanwitch structure: FRP panel + 80mm insulation + FRP panel |
Refrigeration unit |
China brand, -15℃~ 0 ℃ With electric standby, 220V or 380V Panel control system in drive cab, easy access and monitoring |
Gross weight(kg) | 6500 |
Curb weight(kg) | 3200 |
Designed Load Weight(kg) | 3-5 ton |
Wheelbase(mm) | 3360 |
Power route | Gasoline extended-range |
Fuel type | Pure Electric |
Range extender displacement |
Volvo's 1.477L displacement engine, 60kW |
Drive motor rated/peak power | 50kW/100kW |
Battery | EVE brand 53.58kWh water-cooled battery |
Pure electric recharge mileage | 120km ~ 140km |
Total recharge mileage | 0ver 600km(full fuel and full electric status) |
Full charge time | Fast charge interface, 0.6 hours full charge |
Cab | Geely 1995 wide-body cab, single cabin, 3 seats, central control door lock, electric doors and windows, remote control key, 8-inch multimedia large screen, car navigation, standard blind spot camera, reversing camera. |
Axle Load | 2.5 ton / 4 ton |
Steering | Power assisted steering |
Transmission | Automatically, Knob gear, parking brake, electronic handbrake. |
Suspension | Multi Leaf Springs 3/3+3 pcs |
Tire | 6+1 pcs, 7.00R16 tires |
Max speed | 90km/h |

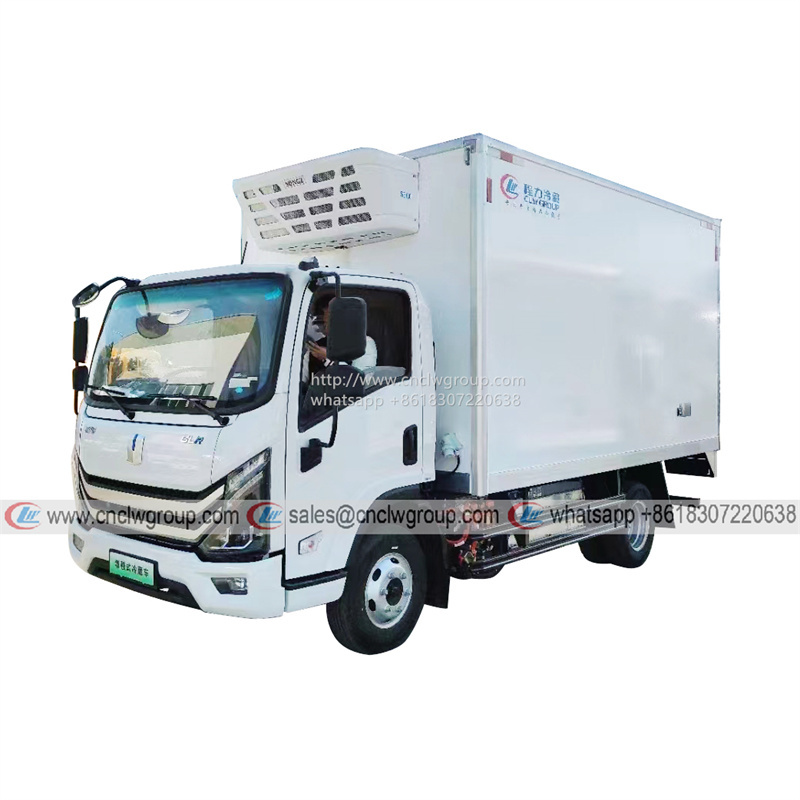

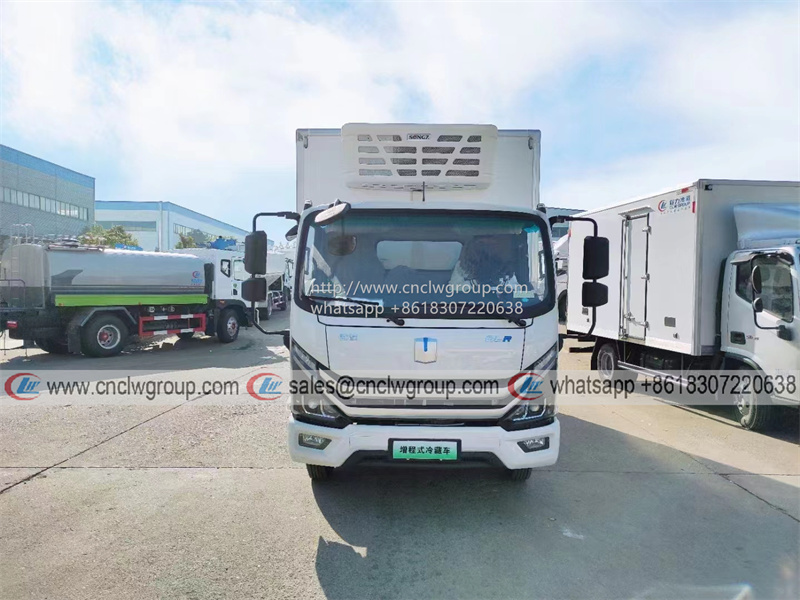

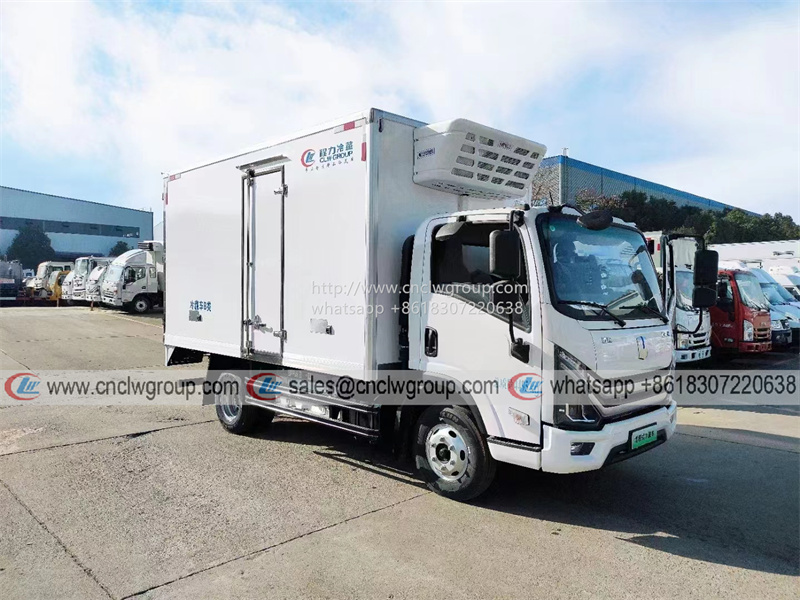

GEELY 3-5 ton EV range-extended pure electric refrigerated freezer van truck

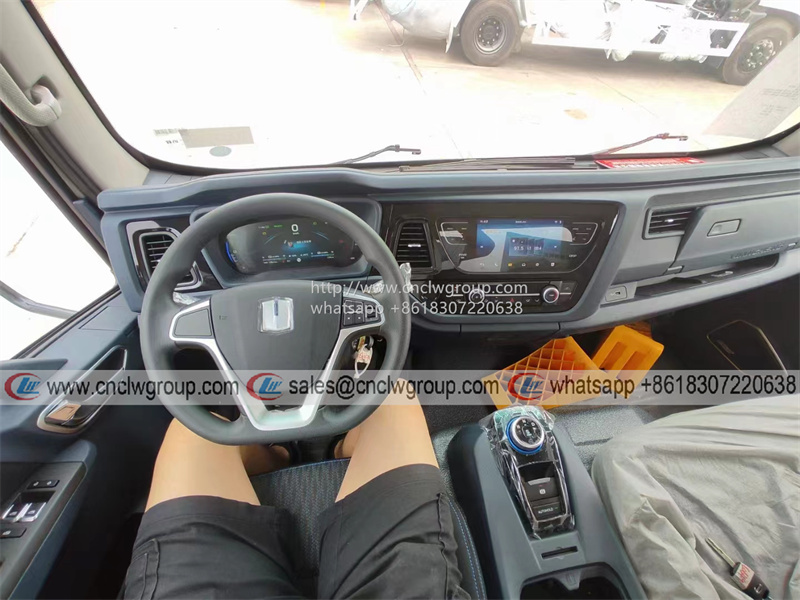

GEELY 1995 wide-body cab, central control door lock, electric doors and windows, remote control key, 8-inch multimedia large screen, car navigation, standard blind spot monitoring, reversing image. Standard fast charging interface, charging time only 0.6 hours.
GEELY pure electric refrigerated truck, with Knob gear, parking brake, electronic handbrake
EVE brand 53.58kwh water-cooled battery, with a total cruising range of 600km

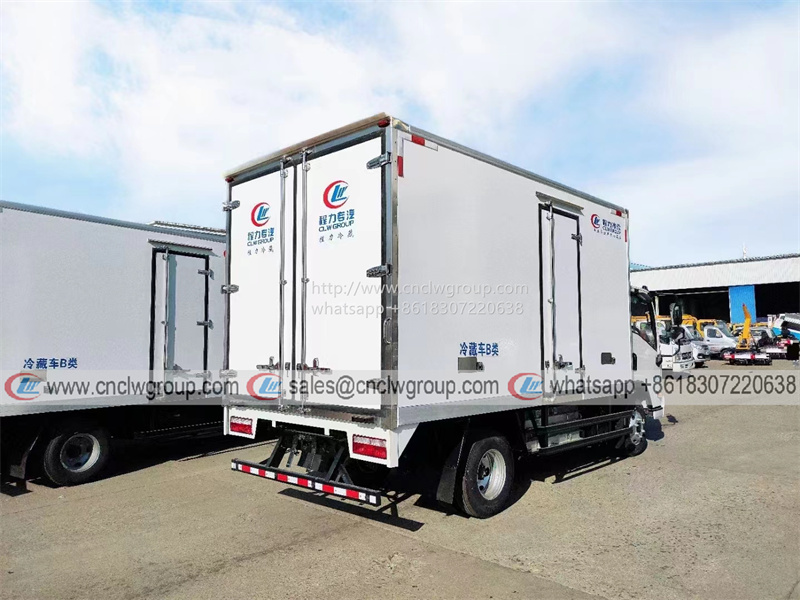

In side truck box body, anti skip aluminum alloy floor
GEELY EV pure electric refrigerated freezer van truck with electric standby system, can connect with 110V/220V/120V city home use electricity
Main structures of GEELY 3-5 ton EV range-extended pure electric refrigerated freezer van truck:
Different devices and configurations you can choose for GEELY 3-5 ton EV range-extended pure electric refrigerated freezer van truck
the additional items specially for GEELY 3-5 ton EV range-extended pure electric refrigerated freezer van truck
- For pure electric refrigerated van load capacity, we have 1 ton pure electric refrigerated van, 2~3 tons pure electric refrigerated van, 3~5 tons pure electric refrigerated van, 6~8 tons pure electric refrigerated van, 8~10 ton pure electric refrigerated van, 10~15 ton refrigerated van,15-20 ton pure electric refrigerated van,20-25 ton refrigerated van,25-30 ton refrigerated van,over 30 tons refrigerated van;
- For pure electric refrigerated truck brand, we have dongfeng pure electric refrigerated truck,foton pure electric refrigerated truck,isuzu pure electric refrigerated truck,howo pure electric refrigerated truck, shacman pure electric refrigerated truck,jmc refrigerated truck,jac refrigerated truck,kama refrigerated truck,iveco refrigerated truck,clw refrigerated truck,hino refrigerated truck,benz refrigerated truck,volvo refrigerated truck,etc.
- For refrigerator truck box length, we can produce from 2 meters to 16 meters long truck type or trailer type.
If you need refrigerator trucks or van, please contact us freely.
