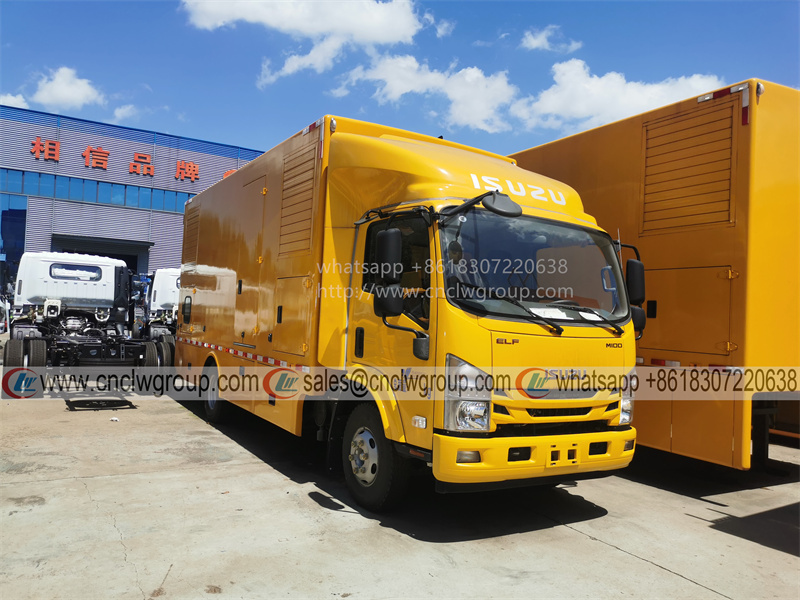

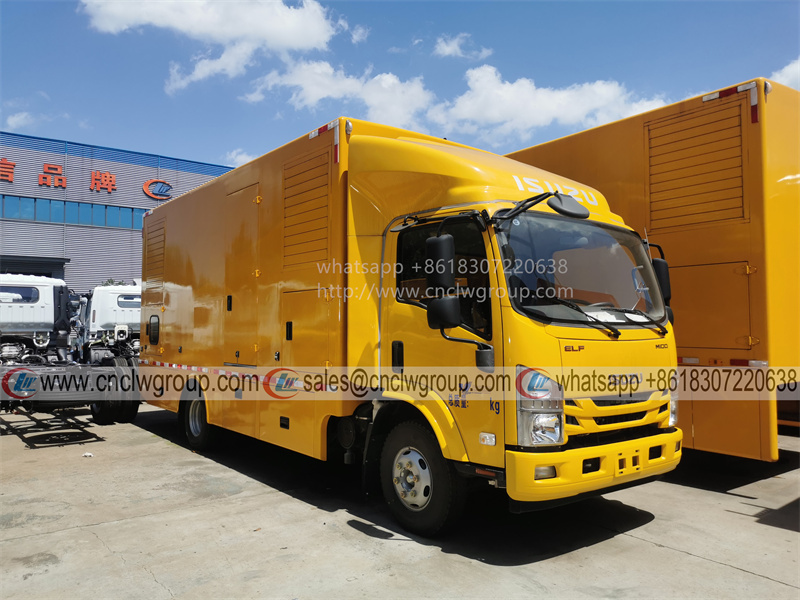

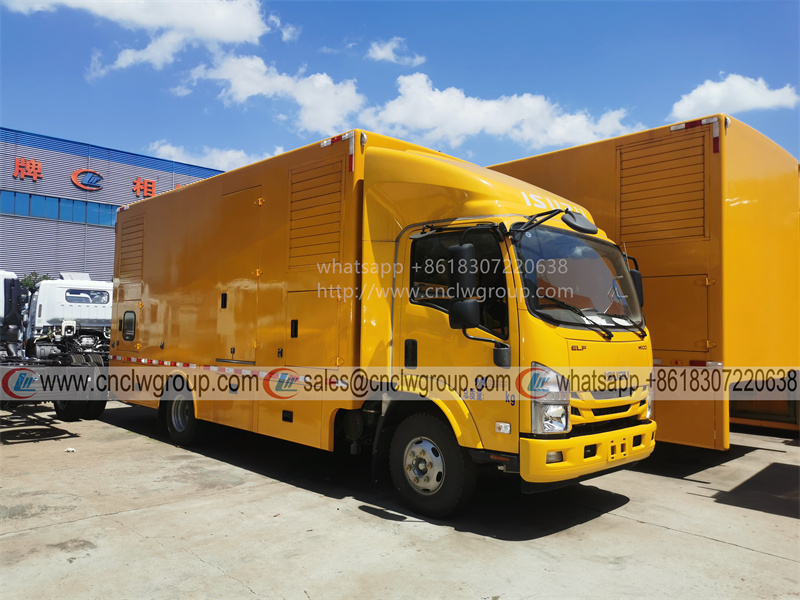

High quality ISUZU mobile power bank 200kW electric power supply truck

- Truck brand: ISUZU
- Truck engine:190HP
- DieseI generator set power: 200KW
- Generator brand: Cummins, Weichai, Volve, CAT, etc.
- Control system: Self-starting control panel
- Electric cable: 100 meters
- Mute noise reduction cabinet

【Chassis Parameters】

Cab  chassis of ISUZU M100 4x2 200kW mobile power bank electric power supply truck, condition new, single cabin, 3 seats, 3815mm wheelbase, ISUZU 132HP Euro 5 dieseI engine, MLD 6-speed transmission, 7.50R16 radial tires, with one spare tire, 3 ton front axle, 5.5-ton rear axle, air brake, ABS, power assist steering, electric power window, central locks, multi purpose dashboard, cab front tilt, with air conditioning, etc.


【Upper Structure Parameters】

ISUZU 200kW mobile power bank electric power supply truck
The emergency power supply truck is equipped with generator sets, cable winches, hydraulic (mechanical) outrigger power cables, lighting systems, grounding brazing and fire-fighting facilities, etc., which are mainly used to deal with emergencies and emergency power supply.

   1. Customers can choose the generator brand according to their actual needs, or they can bring their own generators. The car can be loaded with 200 kilowatt dieseI generators. Conventional brands include Cummins, Weichai, etc. This car can be used for emergency power generation in small and medium-sized enterprises, institutions, and mobile communication departments. It adopts a silent car body, which has high strength, absorbs and attenuates noise, and has the composite functions of mute, heat insulation, dustproof, rainproof and shockproof.

   2. The carriage is a square car body with an arc structure on the top, so there will be no water accumulation on the top of the car. The structural material of the car body is anti-corrosion cold-rolled steel plate, and the internal frame is cold-formed. The surface of the car body is smooth and flat, and the car body has sufficient strength.

   3. There are manual (electric) shutters for air intake and exhaust respectively at the front and rear of the side of the car body, and are equipped with windows or auxiliary air intake and exhaust windows arranged on the front and rear sections of the chassis, so that the unit can enter and exhaust normally. Air volume and exhaust volume.

   4. There are maintenance doors on both sides of the car body, and there is a step ladder under the door, which can be turned up and fixed to the lower part of the car body.


Model CLW5080XQXQ5
Chassis brand ISUZU
Cabin Single row cabin, 3 seats, with air conditioning
New or Used New
Overall dimension 6885x2260x3150mm
Gross weight 8500kg
Curb weight 7200kg
Wheelbase 3815 mm
Engine power ISUZU 132HP
Fuel type DieseI
Transmission ISUZU 6 - speed
Brake Hydraulic brake, ABS
Axle load ISUZU 3/5.5 Tons
Tire 6+1 pcs, 7.50R16 tires
Max speed 90km/h


[Main Structures & Features of Power Supply Truck]


【Power Supply Special Parameters】

DieseI generator set Famous brand, America CAT, Cummins, China WEICHAI
Generator Internatinal famous Stamford Brushless self-excited AC synchronous generator with AVR automatic voltage regulation
Generator power 200KW
Working noise <80 dB
Electric cable 100 meters (YCI*95mm2)
Cable reel winch 2 pcs (hand & electric)
Emergency light 2 pcs
Hydraulic outriggers 4 pcs electric hydraulic outrigger legs
Fluorescent lamp 3 pcs (AC 220V, DC 24V)
Self-starting control panel 1 set
Grounding device 1 set
Mute noise reduction cabinet Access doors, step ladders, ladders, non-slip aluminum floors, compartments, stainless steel door trims, noise reduction panels, residential mufflers, corrugated pipes.
Extinguisher 2 pcs (3kg ABC extinguisher)
Optinal devices

1. reversing radar; 2. reversing camera; 3. lifting lighting lamp;

4. flashing lamps;  5. long line warning light with siren;

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
