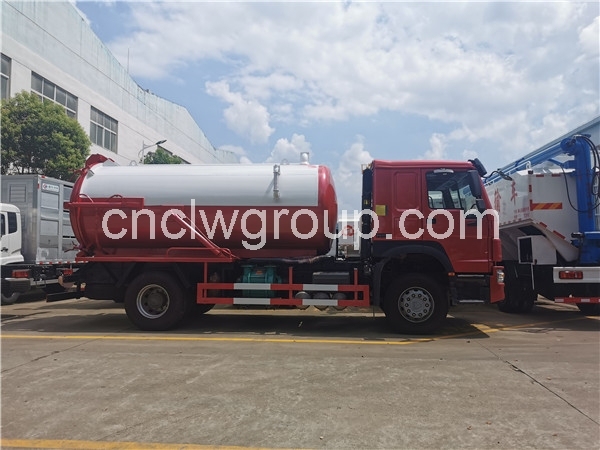

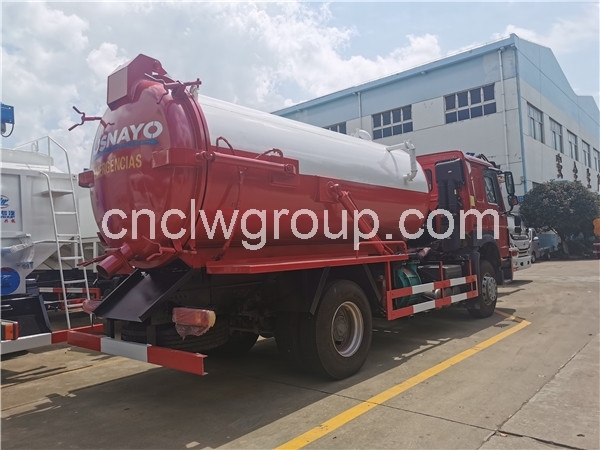

HOWO 12m3 Vacuum Sewage Suction Truck

- HOWO 4x2 sewage suction truck
- Sinotruk 266HP engine
- 10-speed transmission
- 295/80R22.5 tubelss tire
- Sewage tank volume: 12m3
- Sewage pump: 12m3/h vacuum sewage pump
- Unloading: hydraulic rear dumping

【Chassis Parameters】

Sinotruk HOWO heavy chassis, condition new, 4600mm wheelbase, Sinotruk 266HP Euro3 dieseI engine, HW19310 10-speed transmission, 295/80R22.5 tubeless tires, with one spare tire, HF7 7 ton front axle, ST16 16 ton rear axle, full air brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

- Sewage tank volume: 12,000 liter, box body is made of carbon steel, 5mm tank body, 6mm sea head

- Sewage pump: SK-12 vacuum pump

- Others: tank hydraulic lifting rear dump, with a DN150mm discharge valve at rear, hydraulic open tailgate, with a 8m suction hose, with tank level view-window, etc


Model CLW5180GXWZZ2
Chassis brand Sinotruk HOWO
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 8250x2500x3250mm
Gross weight 18000kg
Curb weight 9850kg
Load 10-12 tons
Wheelbase 4600mm
Engine power Sinotruk HOWO 266HP
Fuel type DieseI
Transmission Manual, HW19310 10-speed
Brake Full air brake
Axle load HF7 7 tons / ST16 16 tons
Tire 6+1 pcs, 295/80R22.5 tubeless tires
Max speed 90km/h
Sewage Tank Tank Volume 12,000 liter
Material 5mm carbon steel tank body, 6mm seal head
Tailgate Hydraulic opening
Main Components Sewage pump SK-12 vacuum pump, 12m3/h flow, 1000rpm rotary
Tank unloading Hydraulic rear dumping
Discharge valve 1 pcs DN150mm aluminum alloy outlet
Suction hose 1 pcs 8 meters long
Level view-window 1 pcs
Oil & water separator Included
Anti-overflow valve Included
Wash hand tank 1 pcs
Performance Max suction depth 7 meters
Suction full-tank time ≤ 8 minutes
Positive pressure pump water time ≤ 6 minutes


【Structures of Vacuum Sewage Truck】

The structures of vacuum sewage truck includes: cab chassis, carbon steel sewage tank body, hydraulic back door, door locks, vacuum pump, separator, four-way valve, oil gas separator, ball valve, hydraulic discharge cylinder, visual window, etc.  Chengli made vacuum septical cleaner sewage suction trucks are already near 20 years experiences, with mature manufacture technologies, high quality and good price.

【Product Workmanshop of Vacuum Sewage Truck】

Chengli CLW brand vacuum sewage tanker trucks are all made of high quality Wugang steel, and perfectly welded, no leakge;  tank body and all accessories are well coated and paint, 2 layer bottom coat, and 2 layer surface paint. We can accept customized paint and logo designs.


【Job Scenes of Vacuum Sewage Truck】


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest price!
