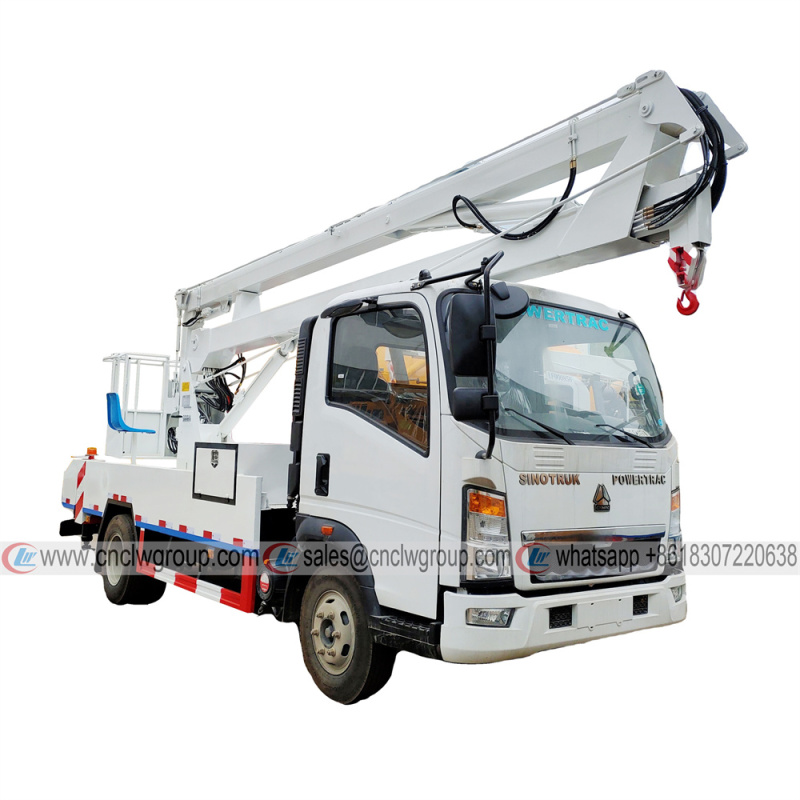

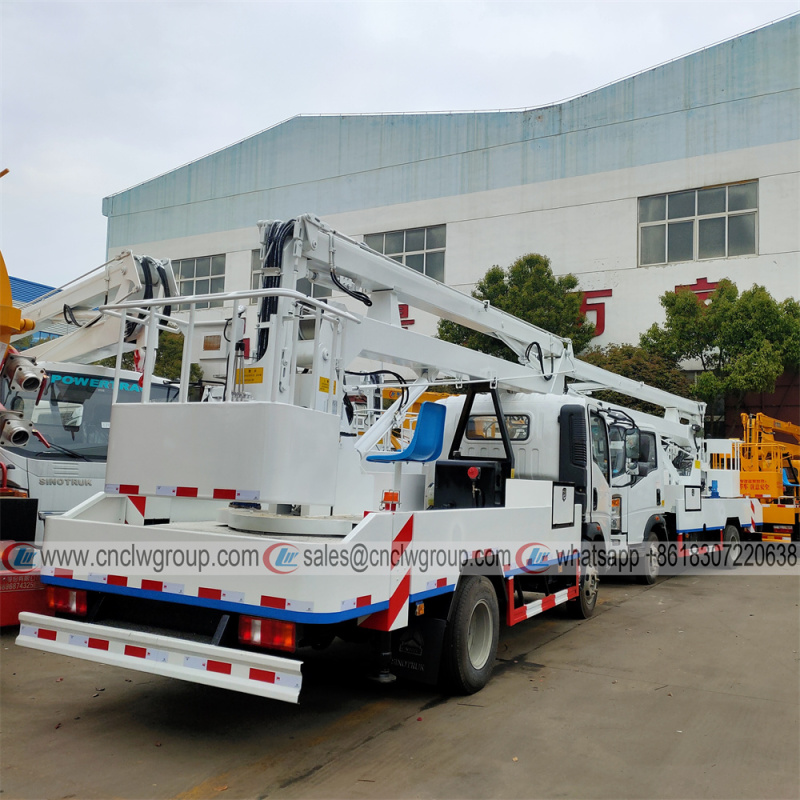

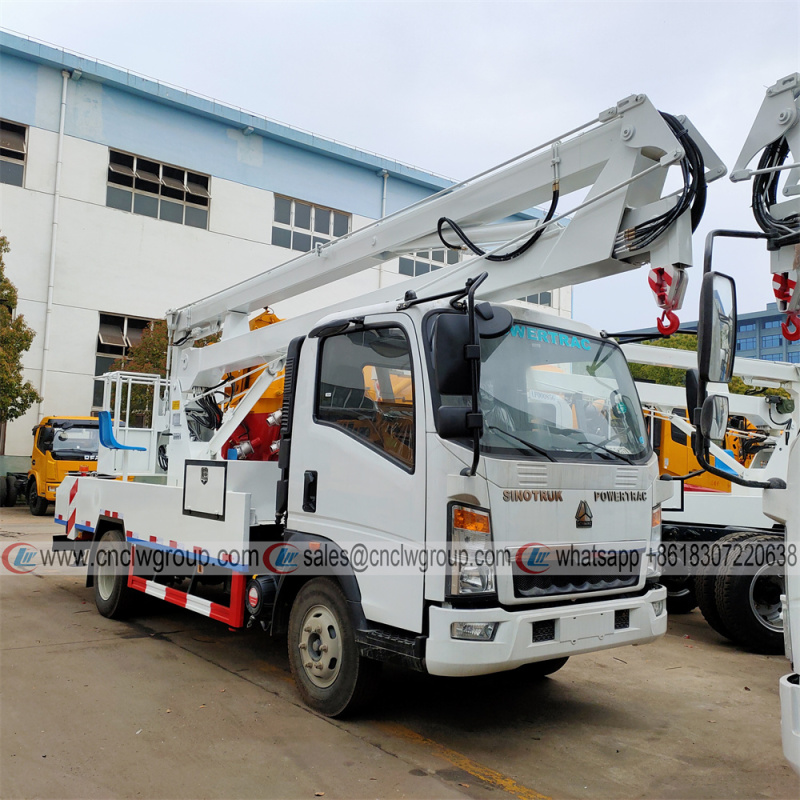

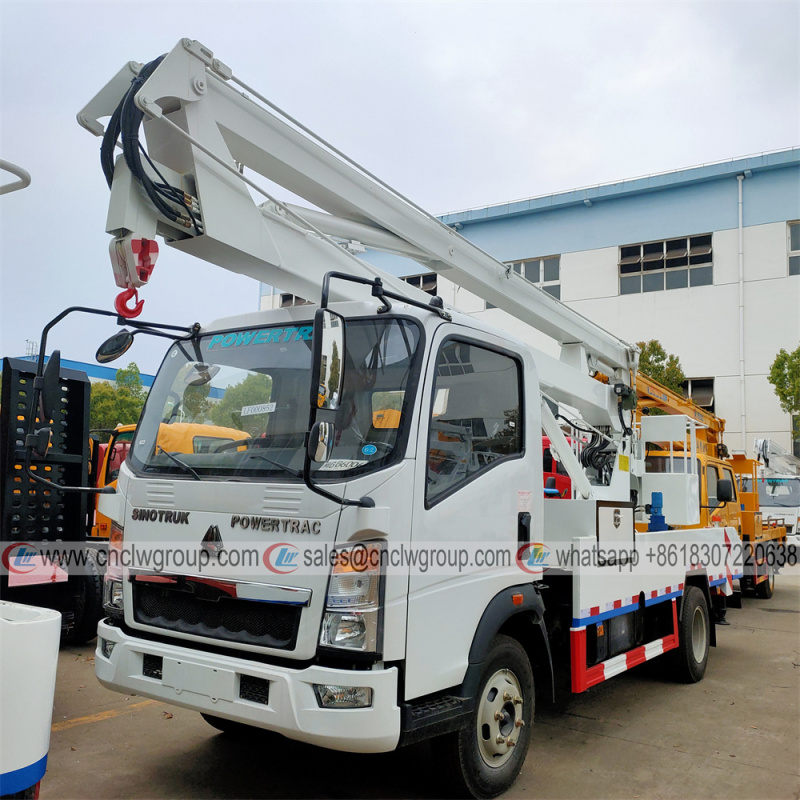

HOWO 16m Knuckle Aerial Platform Truck

- HOWO 16m knuckle aerial bucket truck
- 116HP Euro4 engine
- 16m working height, 360° slewing
- Basket 200kg load, ±90° rotary
- 4 pcs hydraulic outriggers
Description
Description

【Chassis Parameters】

Sinotruk HOWO single cab chassis, condition new, 3 seats, 3360mm wheelbase, Yunnei 116HP Euro4 dieseI engine, WLY Manual 6-speed transmission, 7.00R16 radial tires, with one spare tire, 2.4 ton front axle, 4.2 ton rear axle, air brake, power assist steering, air conditioning, etc.



【Upper Structure Parameters】

Knuckle arm aerial bucket trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • Knuckle arm boom system, 3 section
  • Maximum working height 16 meters
  • Turntable 360° slewing
  • Basket 200kg load, size 1000x760x1100mm,  ±90° rotary
  • Control operation: at turntable seat and in basekt
  • 4 pcs hydraulic outriggers
  • Engineering rotary lights to warn people



Vehicle Basic Specifications
Vehicle Model CLW5060JGKQ5 Maximum Working Height 16 meters
Chassis brand Sinotruk HOWO, 4x2 New or Used Condition new
Overall dimension 7450x2250x3150mm Cargo Box Dimension  -
Gross weight 6500 kg Rated Weight  -
Curb weight 5280 kg Wheelbase 3360 mm
Axle No. 2 Cab Seat No. 3
Axle Load 2400/4200 kg Fuel Type Diesel
Engine Yunnei 116HP Euro4 Steering System LHD, power aissist steering
Transmission Manual 6-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 7.00R16 radial tires
Fuel Tank 100 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GKZ16 Maximum Working Height 16 meters
Boom Type 3-section arm, telescopic arm Maximum Working Radius 6.2 meters
 Basket Dimension 1000x760x1100 mm Slewing Angle 360°
 Basket Load 200kg  Outrigger Front H rear H shape hydraulic legs
Basket Slewing ± 90 degree Outrigger Span

Horizontal 3.2 meter, Vertical 3.6 meters

Operation System

One set at down turntable position,  one set on upper basket.

Safety System

1. Outrigger leveling bubble;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.



























































Customer's Feedback

vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
