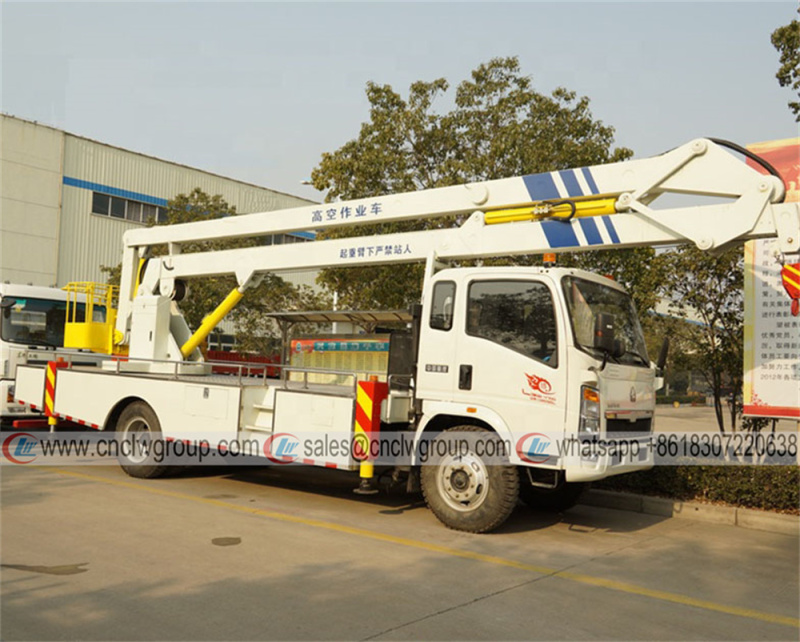

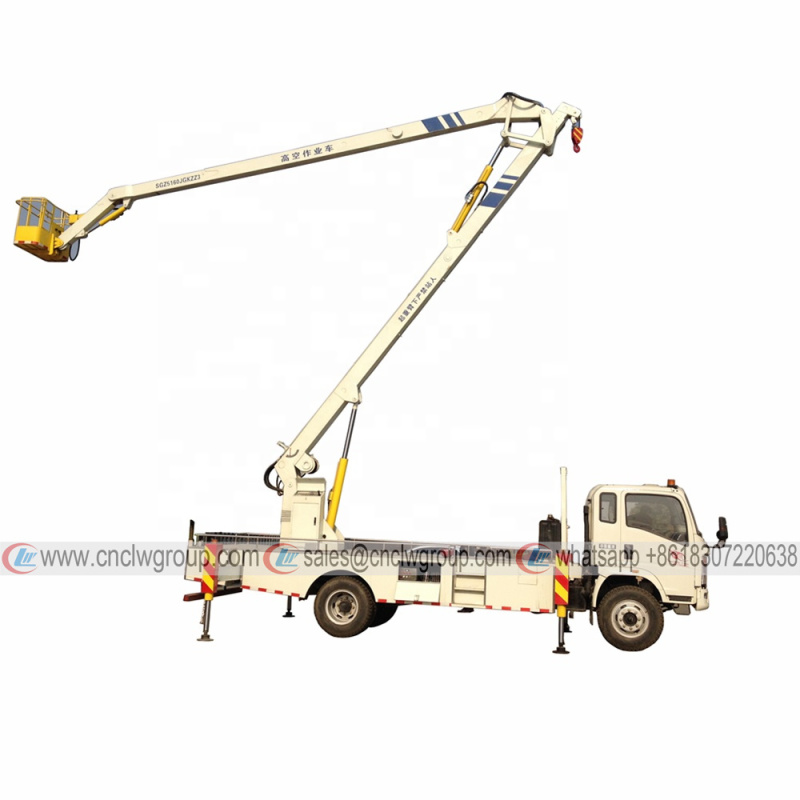

HOWO 20m Knuckle Aerial Platform Truck

- HOWO 20m knuckle aerial bucket truck
- 140HP Euro3 engine
- 20m working height, 360° slewing
- Basket 200kg load, ±90° rotary
- 4 pcs hydraulic outriggers
Description
Description

【Chassis Parameters】

Sinotruk HOWO single cab chassis, condition new, 3 seats, 4500mm wheelbase, Yuchai 140HP Euro3 dieseI engine, Manual 6-speed transmission, 8.25R16 radial tires, with one spare tire, 3.6 ton front axle, 8 ton rear axle, air brake, power assist steering, air conditioning, etc.



【Upper Structure Parameters】

Knuckle arm aerial bucket trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • Knuckle arm boom system, 3 section
  • Maximum working height 20 meters
  • Turntable 360° slewing
  • Basket 200kg load, size 1000x760x1100mm,  ±90° rotary
  • Control operation: at turntable seat and in basekt
  • 4 pcs hydraulic outriggers
  • Engineering rotary lights to warn people



Vehicle Basic Specifications
Vehicle Model CLW5120JGKQ5 Maximum Working Height 120 meters
Chassis brand Sinotruk HOWO 4x2 New or Used  Condition new
Overall dimension 8250x2450x3250mm Cargo Box Dimension  -
Gross weight 12000 kg Rated Weight  -
Curb weight 8920 kg Wheelbase  4500 mm
Axle No. 2 Cab Seat No. 3
Axle Load 3600/8000 kg Fuel Type Diesel
Engine Yuchai 140HP Euro3 Steering System LHD, power aissist steering
Transmission Manual 6-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 8.25R16 radial tires
Fuel Tank 160 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GKZ20 Maximum Working Height 20meters
Boom Type 3-section arm, telescopic arm Maximum Working Radius 7.8 meters
 Basket Dimension 1000x760x1100 mm Slewing Angle 360°
 Basket Load 200kg  Outrigger Front H rear H shape hydraulic legs
Basket Slewing ± 90 degree Outrigger Span

Horizontal 3.2 meter, Vertical 3.6 meters

Operation System

One set at down turntable position,  one set on upper basket.

Safety System

1. Outrigger leveling bubble;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.
