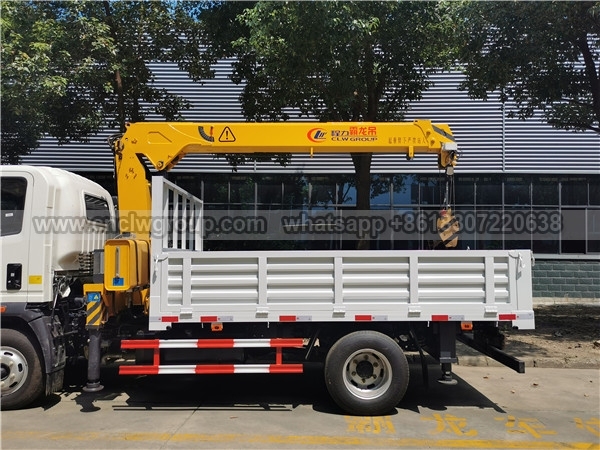

HOWO 3.2 Ton Boom Truck with Crane

HOWO 4x2 Yunnei 116HP Euro3 truck
Crane Max Lifting Weight: 3.2 tons crane
Flatbed size: 3600x2300x400mm
Crane type: telescopic straight arm, 3 section
Max lifting height: 10.6 meters
Max work radius: 8 meters

【Chassis Parameters】

Sinotruk HOWO 4x2 chassis, condition new, 3360mm wheelbase, Yunnei 116HP Euro3 dieseI engine, WLY 6-speed transmission, 7.00R16 radial tires, with one spare tire, 2.5 ton front axle, 3.5 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

CLW SQ3.2SA2 3.2 tons crane, 3-section straight extension arm, maximum lifting height 10.6 meters, maximum working radius 8 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.

Cargo box type: excavator carrier flatbed type, 3600x2300mm, with 350mm height detachable side wall, with 2 pcs spring ladders at rear.


【Vehicle Basic Parameters】

Model CLW5060JSQZZ2
Chassis brand Sinotruk HOWO
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 5995x2000x2950mm
Cargo box 3600x1900x400mm
Gross weight 6850kg
Curb weight 3850kg
Load 4-5 tons
Wheelbase 3360mm
Engine power Yunnei 116HP
Fuel type DieseI
Transmission manual, WLY 6-speed
Brake air brake
Axle load 2.5 tons / 3.5 tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h


【Crane Parameters】

Model SQ3.2SA2
Brand CLW
New or Used New
Max lifting weight 3.2 tons
Max torque 80 kN.m
Max lifting height 10.6m
Max working radius 8m
Recommand oil pressure 20MPa
Oil flow 25L/min
Slewing angle 360 degree continuous slewing
Outrigger span 1800mm ~ 2800mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc
