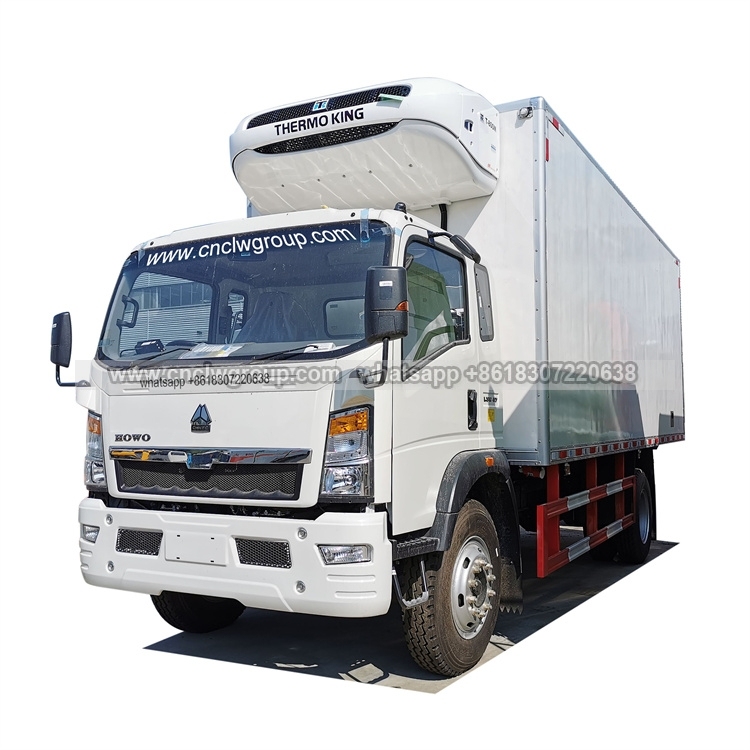

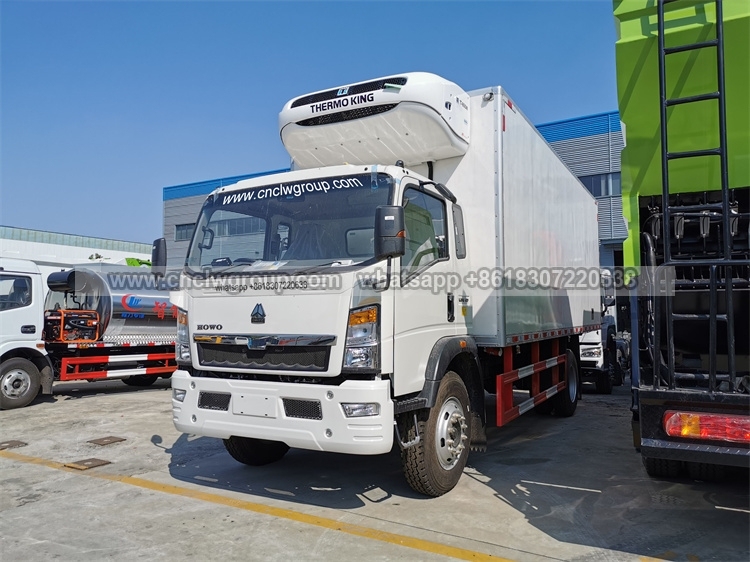

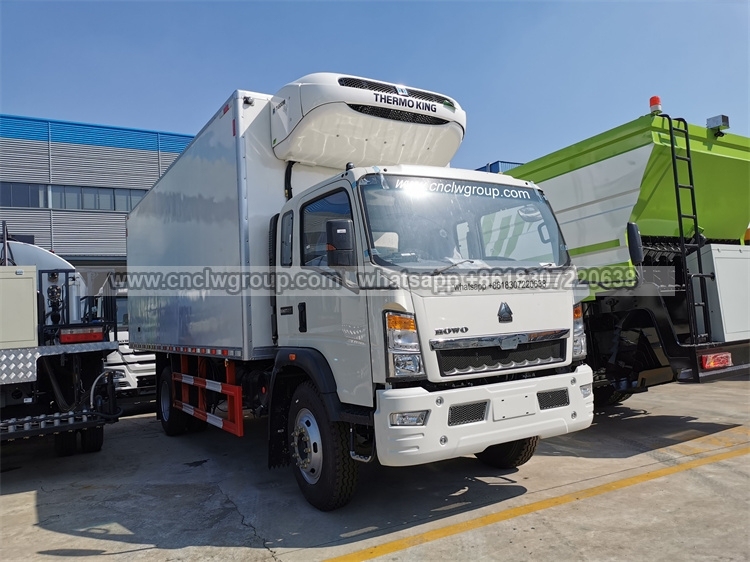

HOWO 4x2 10 Tons Refrigerated Truck

- HOWO 10 Tons Refrigerated Truck
- Insulation Box: 6500x2300x2300mm
- Refrigeration unit: Thermo King T800 -20℃ ~ 0℃
- Yuchai 160HP Euro3 engine
- 6+1 pcs 10.00R20 radial tires
Description
Description

【Chassis Parameters】

Sinotruk HOWO cab chassis, condition new, 3 seats with a sleeper, 4700mm wheelbase, Yuchai 160HP Euro 3 dieseI engine, DC6J65TC 6-speed transmission, 10.00R20 radial tires, with one spare tire, 3.6 Ton front axle, 10 Ton rear axle, air brake, power assist steering, etc.

Chassis brand options: Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.



【Upper Structure Parameters】

Insulation box size 6500x2300x2300mm, total 33.4 cbm box volume;  insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit is American import Thermo King T800 independent -20℃ capacity.

Refrigeration unit brand options: American import brand Thermo King, Carrier brand;   China brand Hanxue, Kauxue, Huatai, Bingli, etc.



Model CLW5160XLCZZ2
Chassis brand Sinotruk HOWO
Wheeldrive 4x2
New or Used New
Overall dimension(mm) 9000x2500x3850
Insulation box dimension(mm) 6500x2300x2300
Material of Insulation box Sanwitch structure: FRP panel + 80mm insulation + FRP panel
Refrigeration unit
American Import Therom King T800 independent -20℃~ 0 ℃
Gross weight(kg) 16000
Curb weight(kg) 6800
Load Weight(kg) 10 tons
Wheelbase(mm) 4700
Engine power Yuchai 160HP Euro3
Fuel type DieseI
Transmission DC6J65T 6- speed
Brake Air brake
Axle load(front/rear) 3.6 tons / 10 tons
Tire 6+1 pcs, 10.00R20 radial tires
Max speed 90km/h



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
