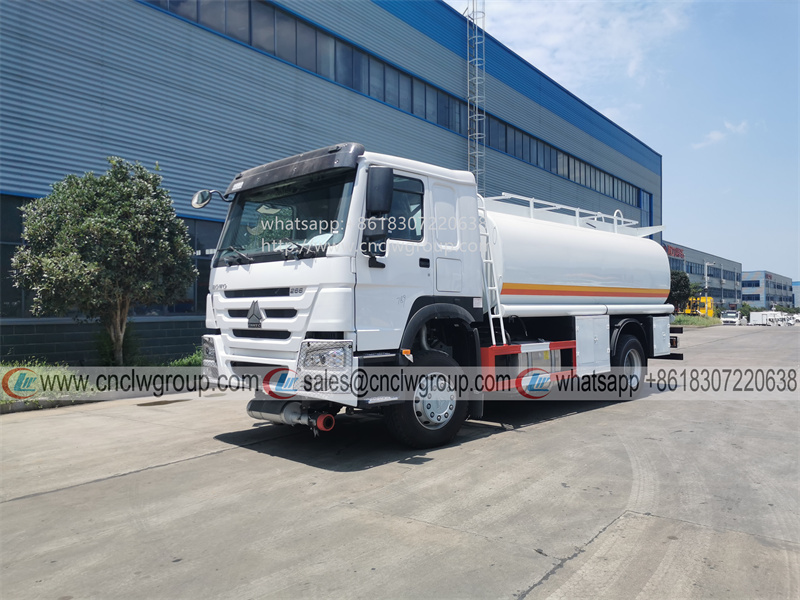

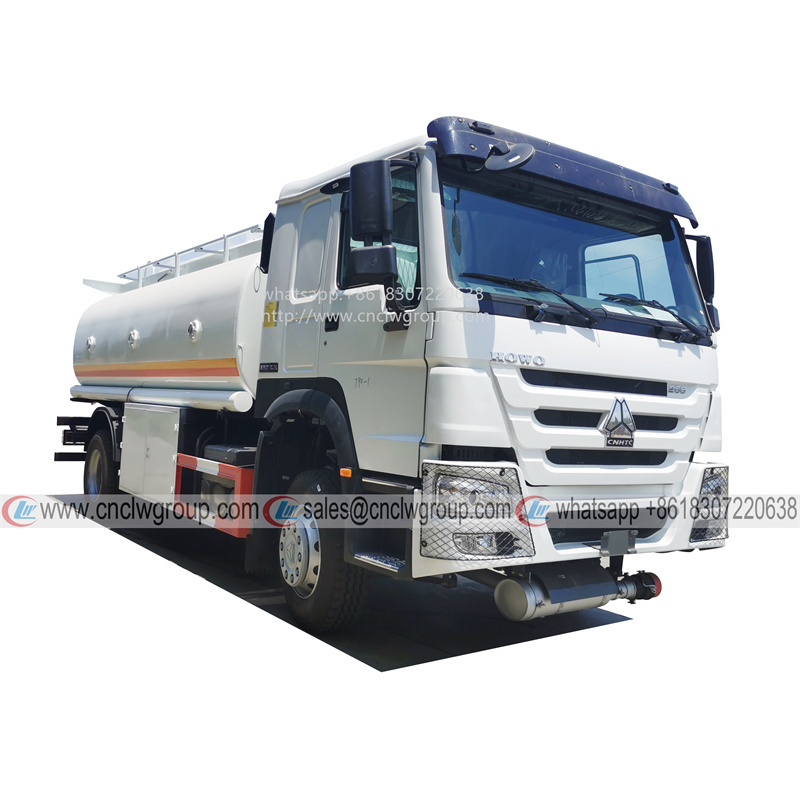

HOWO 4x2 6 wheeler 15000 liter diesel bowser fuel tanker truck

- Brand:HOWO
- Volume:15m3
- Engine:Sinotruk 266hp
- Flow meter:digital flow meter
- Whatsapp: +8618307220638
- Email: [email protected]
- Http://www.cnclwgroup.com
Description
Description

【Chassis Parameters】

Cab chassis of HOWO 4x2 6 wheeler 15000 liter diesel bowser fuel tank truck: Sinotruk HOWO heavy cab chassis, condition new, 4600mm wheelbase, WD615.62 266HP Euro2 diesel engine, HW19310 10-speed transmission, 295/80R22.5 radial tires, with one spare tire, HF7 ton front axle, ST16 ton rear axle, air brake, power assist steering, hydraulic main seat, with air conditioning, 400L aluminum alloy fuel tank, exhaust pipe front mounted, etc.



【Upper Structure Parameters】

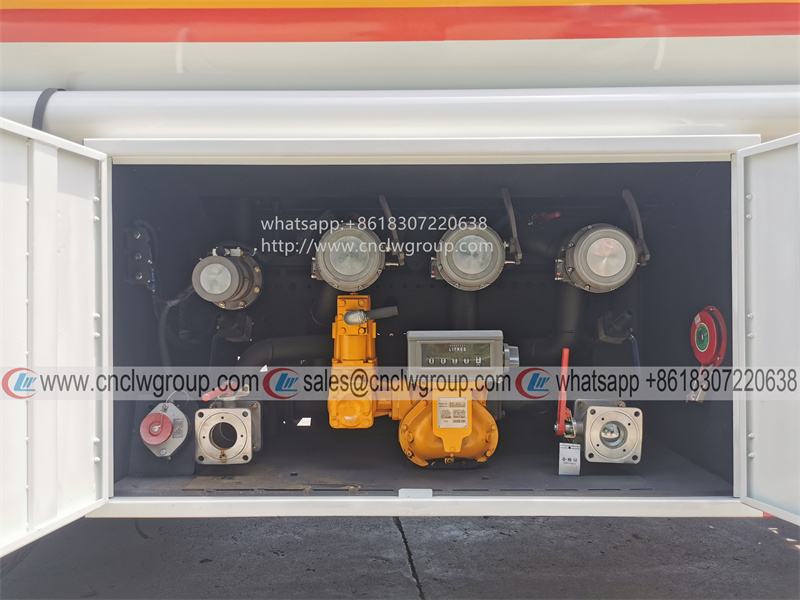

HOWO 4x2 6 wheeler 15000 liter diesel bowser fuel tank truck: 15m3 volume,  carbon steel tank body, with 3 division sub-tank compartments, with 3 pcs manhole cover, 3 sub-tank valves, 2 pcs gravity discharge ports, with 3 pcs safety valve foot valve;  with digital flow meter to monitor the fuel flow amount, with 60/90 fue pump, pump-inlet and pump-outlet function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.



【Vehicle Basic Parameters】

Vehicle Basic Specifications
Vehicle Model CLW5180GYYZ2 Volume of Tanker 15000 liter
Chassis brand Sinotruk HOWO New or Used Condition new
Overall dimension 8250x2500x3230mm Cargo Box Dimension  -
Gross weight 18000 kg Rated Weight 9200 kg
Curb weight 8800 kg Wheelbase 4600mm
Axle No. 2 Cab Seat No. 3 people
Axle Load HF7 / ST16 Fuel Type Diesel
Engine

Sinotruk WD615.62 226HP Euro2

Steering System LHD, power aissist steering
Transmission Manual, HW19310 10-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension Multi Leaf Springs Tire Model 295/80R22.5 radial tires
Fuel Tank 400 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Type Fuel transporter
Volume of Tanker 15,000 liter
Medium Gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products Material of Tanker Carbon steel
 Manhole 3 pcs, aluminum alloy manhole cover Fuel Discharge Valve

2 pcs, pump inlet and pump outlet

 Safety Valve Bottom emergency cut off valve, breathing valve, anti-overflow probe Pump

1 unit fire pump

Pump inlet and pump outlet

Flow Meter

Digital flow meter Level Guage Optional
Refueling Device

Tax control computer dispenser unit + Refueling nozzle with 15 meter thick hose reel (optional to install)

Safety System

1. Foot emergency cut-off valve;

2. Breathing valve;

3. Anti-overflow probe;

4. Static conductive wire reel;

5. Fire extinguisher.





Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!

*Visit and subscribewww.cnclwgroup.com for more details about Dongfeng 10000 liter fuel tank truck and Fuel Tank Truck Series. If you need any help, send us a meesage to [email protected] or directly contact us thru whatsapp +8618307220638 for instant communication.
