HOWO 4x2 Boom Truck with 4 Tons Crane

HOWO 4x2 140HP Euro3 truck
Gross weight: 12000kg
Load: 6-8 tons
Transmission: 6-speed manual gearbox
Tir: 6+1 pcs 8.25R16 radial tire
Crane Max Lifting Weight: 4 tons crane
Crane type: telescopic straight arm, 3 section
Max lifting height: 10.6 met
Description
Description

【Chassis Parameters】

Sinotruk HOWO 4x2 chassis, condition new, 4200mm wheelbase, Yuchai 140HP Euro3 dieseI engine, 6-speed transmission, 8.25R16 radial tires, with one spare tire, 2.7 ton front axle, 7.2 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

  • Cargo box: 4800x2300x500mm
  • Crane brand: SQ4SA2 4 tons crane
  • Crane type: straight telescopic arm, 3-section extension boom
  • Max lifting height: 10.6 meters
  • Max working radiu: 8 meters



【Vehicle Basic Parameters】

Model CLW5120JSQZZ3
Chassis brand Sinotruk HOWO
New or Used New
Overall dimension 7820x2350x3350mm
Cargo box 4800x2200x500mm
Gross weight 12000kg
Curb weight 5800kg
Load 6~8 tons
Wheelbase 4200mm
Engine power Yuchai 140HP or Cummins 141HP
Fuel type DieseI
Transmission 6-speed
Brake air brake
Axle load 2.7/7.2 (tons)
Tire 6+1 pcs, 8.25R16 radial tires
Max speed 90km/h

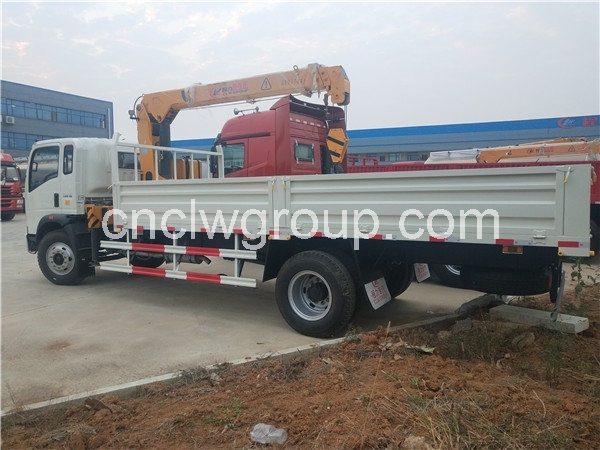

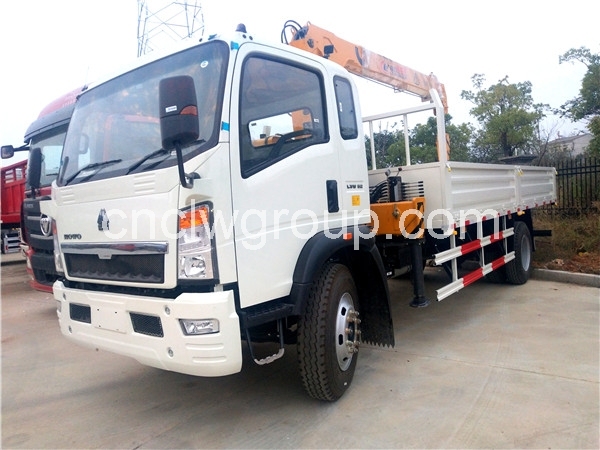

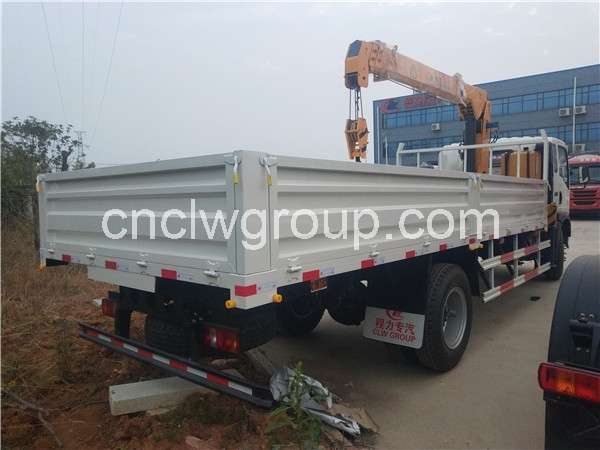

【Multi-directional Pictures】

【Crane Parameters】

Model SQ4SA2
Brand CLW
New or Used New
Max lifting weight 4 tons
Max torque 100 kN.m
Max lifting height 10.6m
Max working radius 8m
Recommand oil pressure 20MPa
Oil flow 25L/min
Slewing angle 360 degree continuous slewing
Outrigger span 2000mm ~ 3300mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc



【SQ4SA2 4 Tons Crane Lifting Capacity Graph】



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
