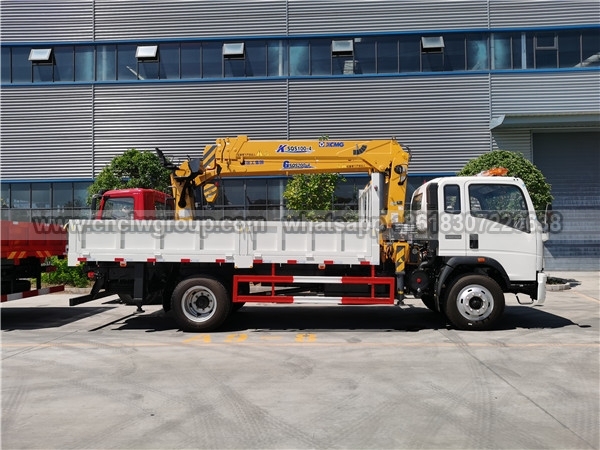

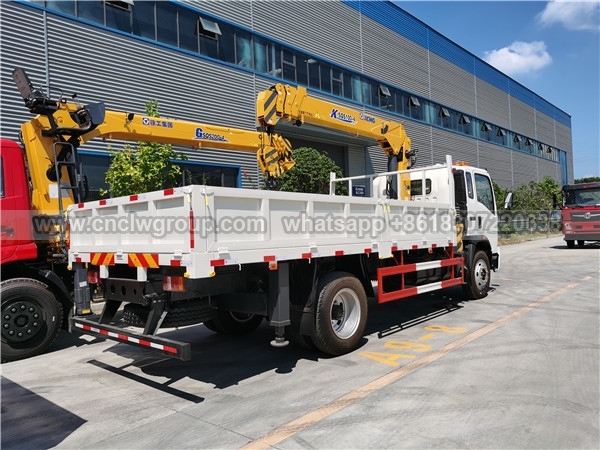

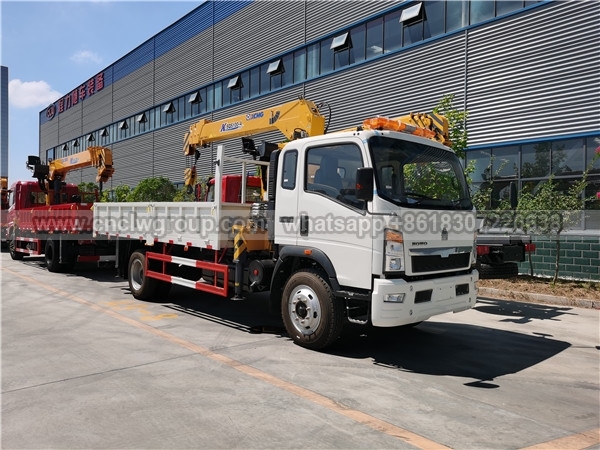

HOWO 5 Tons Boom Truck with Crane

HOWO 4x2 Yuchai 140HP Euro3 truck
Crane Max Lifting Weight: 5 tons crane
Flatbed size: 5200x2200x450mm
Crane type: telescopic straight arm, 4 section
Max lifting height: 12.5 meters
Max work radius: 11 meters

【Contact Us】

E-mail: [email protected]

Whatsapp/Mobile: 008618307220638

Chengli Special Automobile Co.,Ltd

Website Http://


Add: South Suburb Chengli Automobile Industry Park, Suizhou City, Hubei Province, China.


【Chassis Parameters】

Sinotruk HOWO 4x2 chassis, condition new, 4500mm wheelbase, Yuchai 140HP Euro3 dieseI engine, WLY 6-speed transmission, 8.25R16 radial tires, with one spare tire, 2.5 ton front axle, 3.5 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

CLW SQ3.2SA2 3.2 tons crane, 3-section straight extension arm, maximum lifting height 10.6 meters, maximum working radius 8 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.

Cargo box type: excavator carrier flatbed type, 3600x2300mm, with 350mm height detachable side wall, with 2 pcs spring ladders at rear.


【Vehicle Basic Parameters】

Model CLW5140JSQZZ2
Chassis brand Sinotruk HOWO
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 8350x2420x3650mm
Cargo box 5200x2200x450mm
Gross weight 13500kg
Curb weight 6850kg
Load 6500kg
Wheelbase 4500mm
Engine power YUCHAI 140HP Euro3
Fuel type DieseI
Transmission manual, WLY 6-speed
Brake air brake
Axle load 3.2 tons / 8 tons
Tire 6+1 pcs,  8.25R16 radial tires
Max speed 90km/h


【Crane Parameters】

Model SQS100-4
Brand XCMG
New or Used New
Max lifting weight 4 tons
Max torque 100 kN.m
Max lifting height 12.5m
Max working radius 11m
Recommand oil pressure 20MPa
Slewing angle 360 degree continuous slewing
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


*Subscribe or visit our Chengli Website for more details about HOWO boom truck 5 tons and othre boom truck mounted crane. If you have any question, send us a message. You will be replied with 24 hours.
