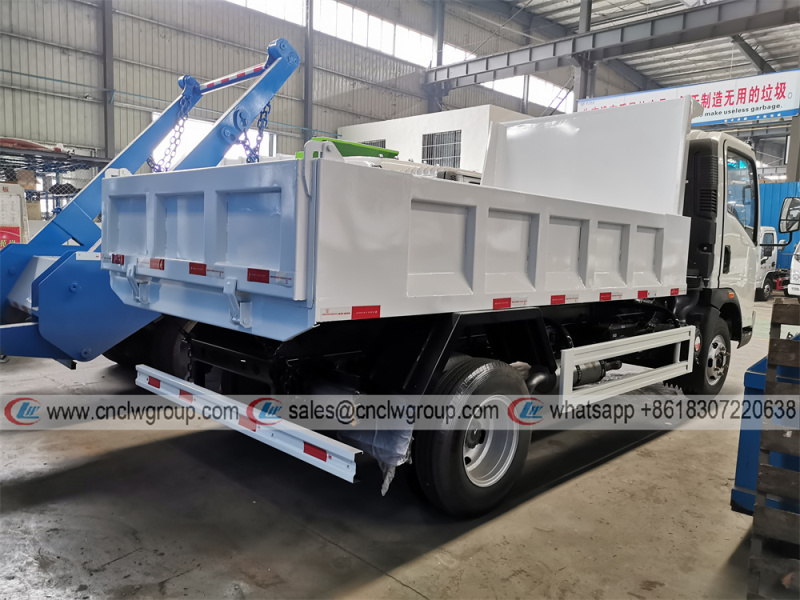

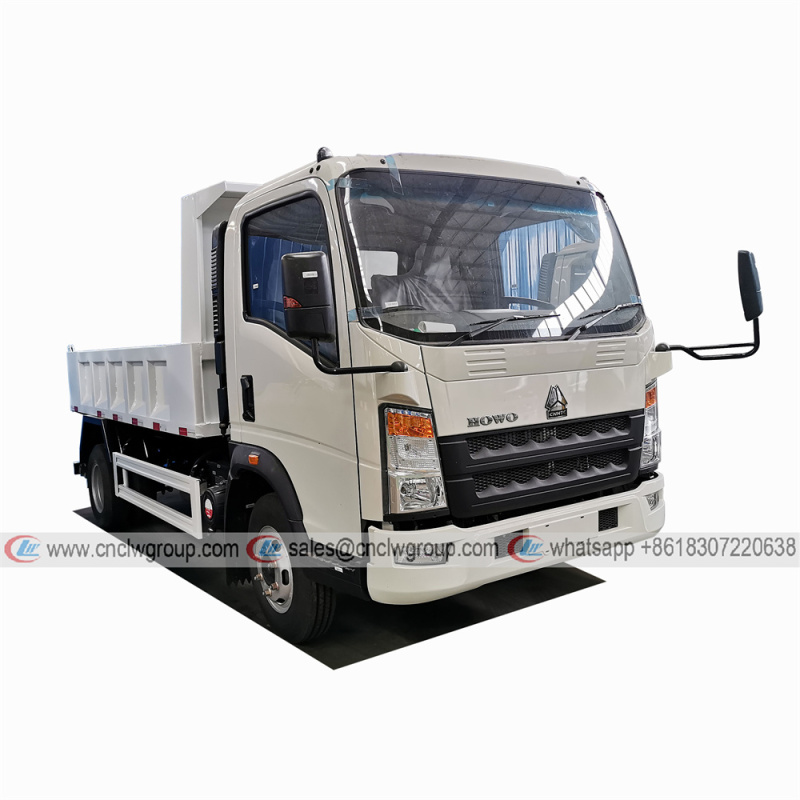

HOWO 5 tons Dump Truck

Sinotruk HOWO RHD 5t Dump Truck
Engine: Yunnei 116HP Euro2
Tir: 6+1 pcs 7.00R17 radial tire
Load Capacity: 5 tons
Dump Box: 3600x1880x450mm
Rear dumping: middle double hydraulic cylinders

【Chassis Parameters】

Sinotruk HOWO 4x2 chassis, RHD single cabin, condition new, 3360mm wheelbase, Yunnei 116HP Euro2 diesel engine, manual 6-speed transmission, 7.00R16 radial tires, with one spare tire, 2.4 ton front axle, 4.2 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.


【Upper Structure Parameters】

Dumper box size 3600x1880x450mm;  dump box material 3mm side wall, 4mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.


Vehicle Basic Specifications
Model CLW5060ZZXZ2
Chassis brand Sinotruk HOWO
Wheeldrive 4x2 RHD
New or Used New
Overall dimension(mm) 5850x2050x2230
Dump box dimension(mm) 3600x1880x450
Gross weight(kg) 6850
Curb weight(kg) 3580
Designed Load 5 tons
Wheelbase(mm) 3360
Engine power Yunnei 116HP Euro2
Fuel type DieseI
Transmission Manual 6- speed
Brake Air brake
Axle load(front/rear) 2.4 tons / 4.2 tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h
Vehicle Superstructure Parameters
Dump Box Dimension 3600x1880x450mm
Material High strengthen carbon steel, 3mm side, 4mm bottom
Unloading Method of Dump Box Double cylinders middle lifting
Maximum Dumping Angle ≤ 45°
Back Door Hinge structure , auto open when dumping
Side Opening Door One(1)



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
