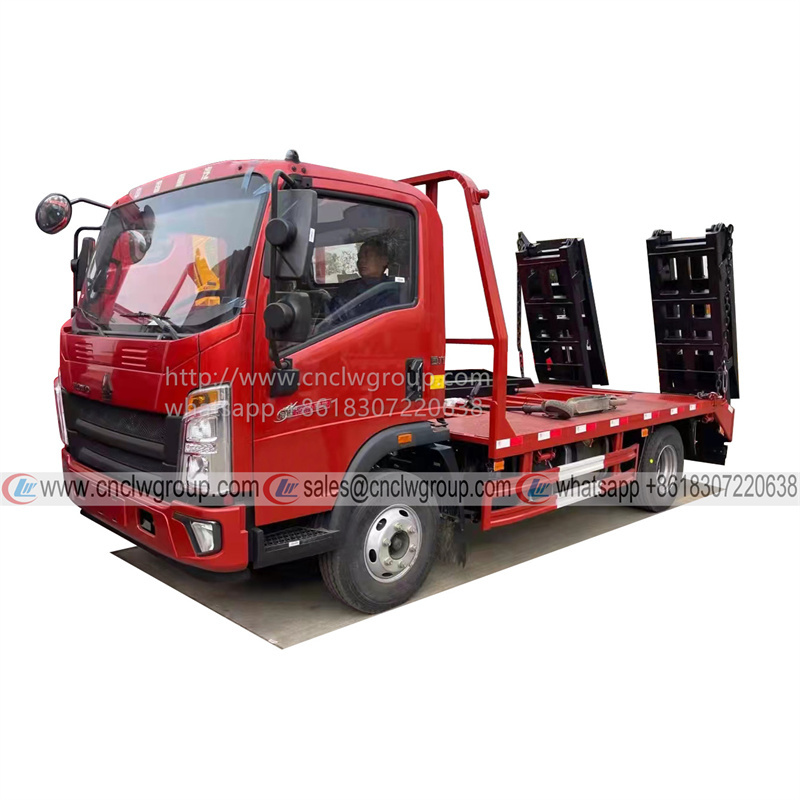

HOWO 5 tons Excavator Flatbed Truck

- Sinotruk HOWO 4x2 excavator flatbed truck
- Yunnei 116HP Euro2 Diesel engine
- Flat bed dimension: 4300x2300mm
- Winch: install a 4 ton hydraulic winch
- Spring ladder: Mechanical ladder bridge

【Chassis Parameters】

Sinotruk HOWO 5 tons excavator flatbed truck adapts Sinotruk HOWO special chassis, condition new, 3 seats, 3360mm wheelbase, Yunnei 116HP Euro2 dieseI engine, manual 6-speed transmission, 7.00R16 radial tires, with one spare tire, 2.5 ton front axle, 3.5 ton rear axle, air brake, power assist steering, etc.

【Upper Structure Parameters】

Sinotruk HOWO 5 tons flatbed truck with 4 tons hydraulic winch, with a special excavator loading deck board, 4mm deck plate, under with 80x80mm square tube, with two pcs mechanical spring ladder bridges or hydraulic spring ladders;

can choose with hydraulic lift outriggers leg installed behind cabin, 2 x 6 tons, 12 tons lift capacity, which can be used to lift the flatbed truck to make a ramp of the flat deck bed, for a easy climb or loading onboard for excavators or cars or machines. It is mainly used for carrying excavator, bulldozer, loaders, road rollers, large agricultural machinery, etc. Traditional flatbed truck with two pcs ladders for climbing up, but is very dangerous and for some crawler-type or large machinery is prone to rollover due to the corners of the platform and ladder when getting on the vehicle. Chengli CLW produced self loading flatbed truck, installed a heavy lifting front outrigger at front of flatbed, behind cabin,  it can lifting the truck to give the flat deck plate a tilt angle, so that any truck or machinery can easily climb onto the flat bed,  and on the front of the deck bed, can install hydraulic winch, 5 tons, 8 tons, 10 tons, 20 tons to pull up fault vehicles or machines.


Model CLW5070TPBZZ2
Chassis brand Sinotruk HOWO
New or Used New
Overall dimension(mm) 5995x2300x2350
Flatbed dimension(mm) 4300x2300
Winch 4 tons hydraulic winch, installed at front flat bed deck
Gross weight 6850kg
Curb weight 3850kg
Load 5 tons
Wheelbase(mm) 3360
Engine power Yunnei 116HP Euro2 engine
Fuel type DieseI
Transmission Manual 6 - speed
Brake Full air brake
Axle load 2500/3500(kg)
Tire 6+1 pcs, 7.00R16 tires
Max speed 90km/h

- Dimension:4300x2300mm

- Material: 4mm deck plate, under supported with 80x80mm square tube made frame

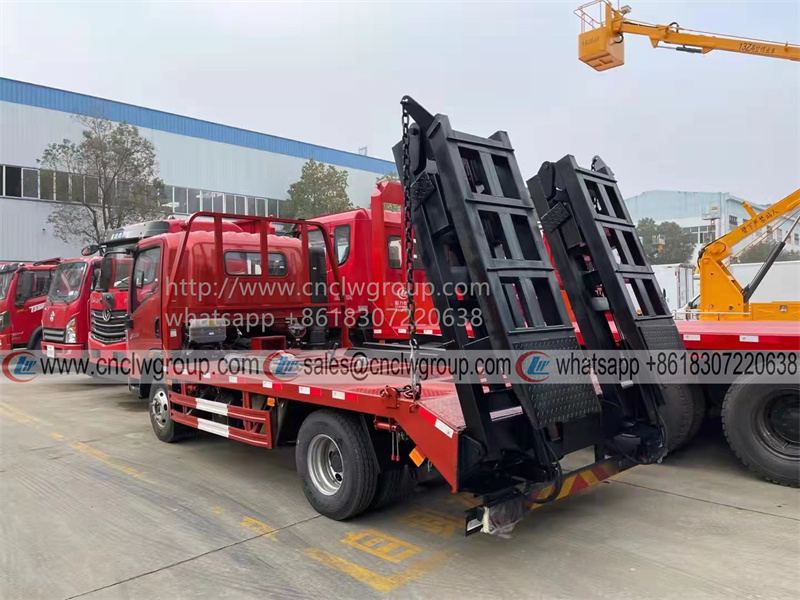

- Rear ladder: 2 pcs mechanical spring ladders(can choose hydraulic ladders)

- Winch: 4 tons hydraulic winch, installed at front flat bed


[Multi-directional Images]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
