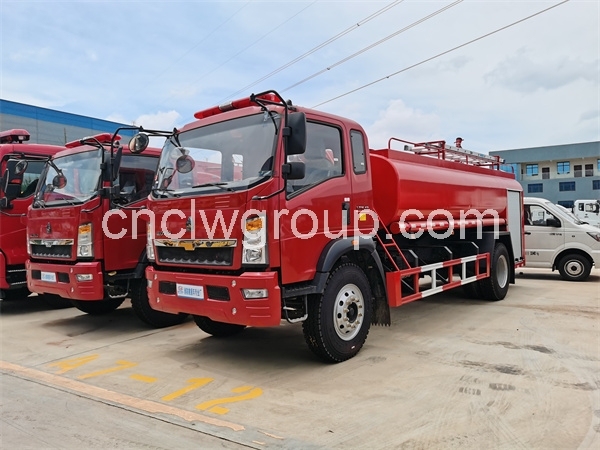

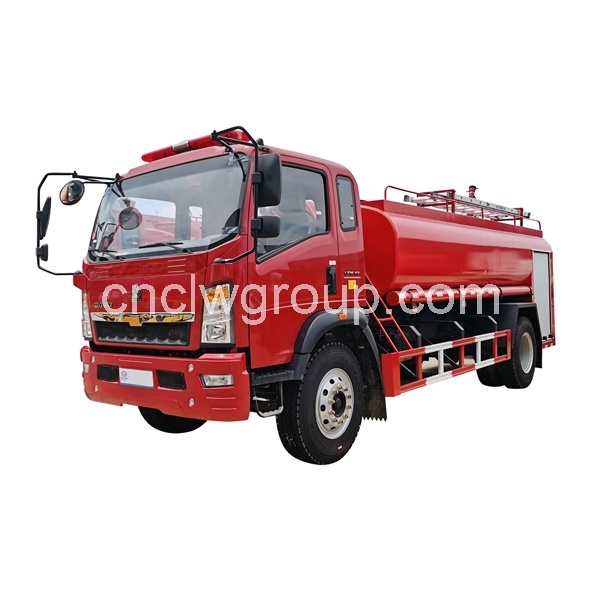

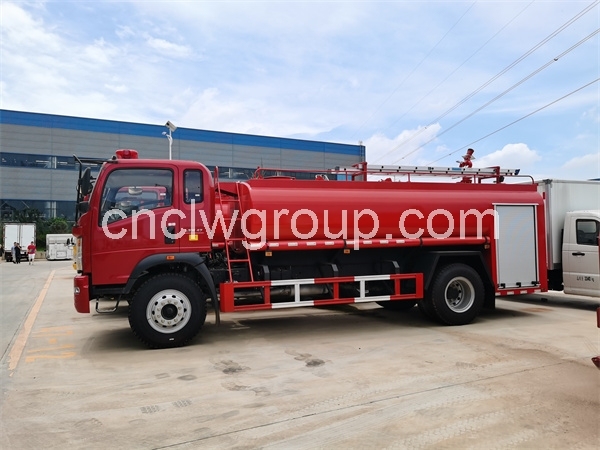

HOWO 6,000 liter Fire Sprinkler Truck

- HOWO 4x2 Fire Water Sprinkler Truck
- Water tank: 6,000 liter
- Yuchai 140HP Euro3 engine
- 8.25R20 radial tires
- Fire pump: 1800 liter/min
- Fire monitor: 1800 liter/min
- Water jetting rang: 50m
- Water sprinkler: front/rear water spraying no

【Chassis Parameters】

HOWO 4x2 new cab  chassis, condition new, single cab, 3 seats with a small sleeper, 4200mm wheelbase, Yuchai 140HP Euro 3 dieseI engine, manual 6-speed transmission, 8.25R20 radial tires, with one spare tire, 3.2 ton front axle, 8 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

- Chengli produced HOWO fire fighting water sprinkler,  mainly used for fire fighitng, water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

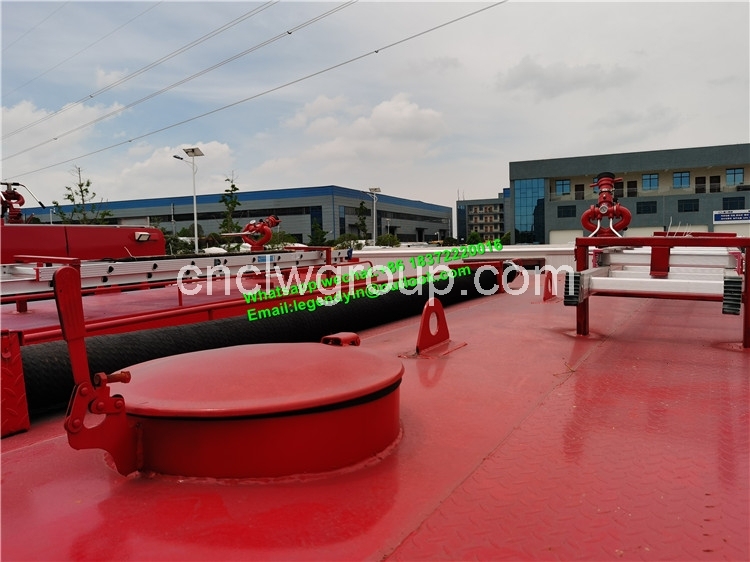

- 6,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole;

- with 1800 liter/min fire pump, 1.0MPa, suction depth 6 meters;

- with 1800 liter/in fire monitor, 1.0MPa, water jetting range 50 meters;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters;


Model CLW5120GSSZZ2
Chassis brand Sinotruk HOWO
New or Used New
Overall dimension 7650x2420x3150mm
Gross weight 12500kg
Curb weight 6800kg
Load 6 tons
Wheelbase 4200mm
Engine power Yuchai 140HP Euro3
Fuel type DieseI
Transmission Manual, WLY 6-speed gearbox
Brake air brake
Axle load 3.2/8 Tons
Tire 6+1 pcs, 8.25R20 radial tires
Max speed 90km/h


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
