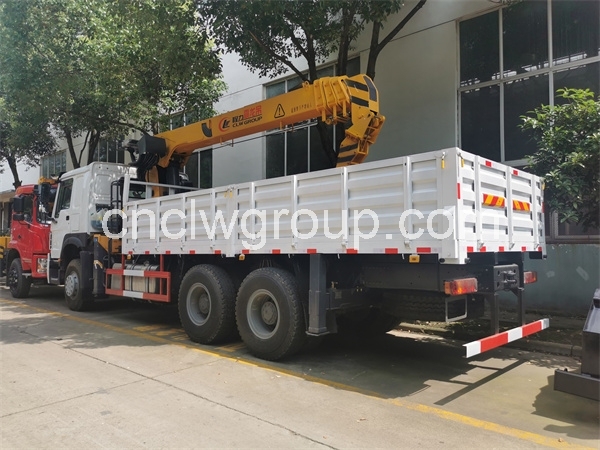

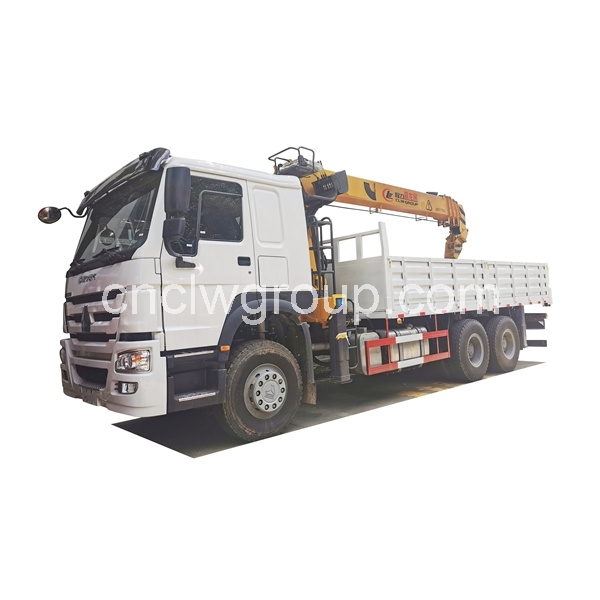

HOWO 6x4 10 Ton Truck Mounted Crane

HOWO 6x4 336HP Euro2 truck
Crane capacity: 10 tons crane
Axle Load: FA 7 tons, RA 2x 16 Tons
Tir: 10+1 pcs 295/80R22.5 radial tire
Max lifting height: 15.6 meter
Max working radius: 13.5 meter

【Cab Chassis Parameters】

HOWO 6x4 heavy chassis, JW76 new cabin, condition new, 5225+1350mm wheelbase, Sinotruk 336HP Euro2 dieseI engine, 10-speed transmission, 295/80R22.5 radial tires, with one spare tire, 7 Ton front axle, 2x 16 Ton double-mounted wheel reduction rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

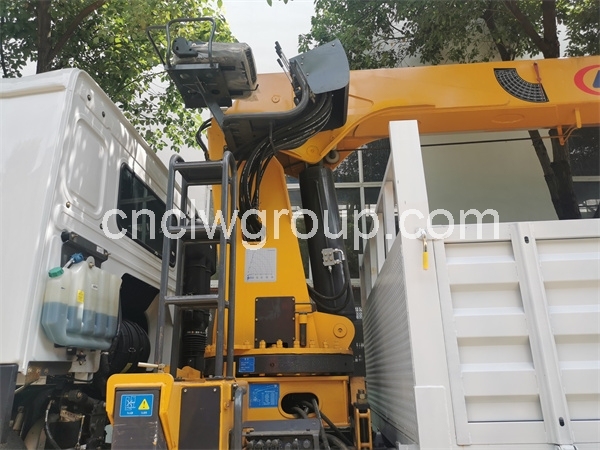

CLW SQ10SA3 10 tons crane, 4-section arm, max lifting height 15.6m, max working radius 13.5m, 360° slewing, double side operation, with remote throttle, radiator, lighting, leveling bubble, etc.


【Vehicle Basic Parameters】

Model CLW5340JSQZZ2
Chassis brand Sinotruk HOWO
New or Used New
Overall dimension 10850x2500x3850mm
Cargo box 7200x2300x550mm
Gross weight 34000kg
Curb weight 12500kg
Load 22-25 tons
Wheelbase 5225+1350mm
Engine power Sinotruk 336HP
Fuel type DieseI
Transmission HW19710, Manual 10-speed
Brake air brake
Axle load HF7 / HC16 2x 16 tons
Tire 10+1 pcs, 295/80R22.5 tires
Max speed 90km/h


【Crane Parameters】

Model SA10SA3
Brand CLW
New or Used New
Max lifting weight 10 tons
Max torque 250 kN.m
Max lifting height 15.6 meters
Max working radius 13.5 meters
Slewing angle 360 degree
Front Outrigger Front hydraulic extension outrigger
Rear Outrigger Hydraulic outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
