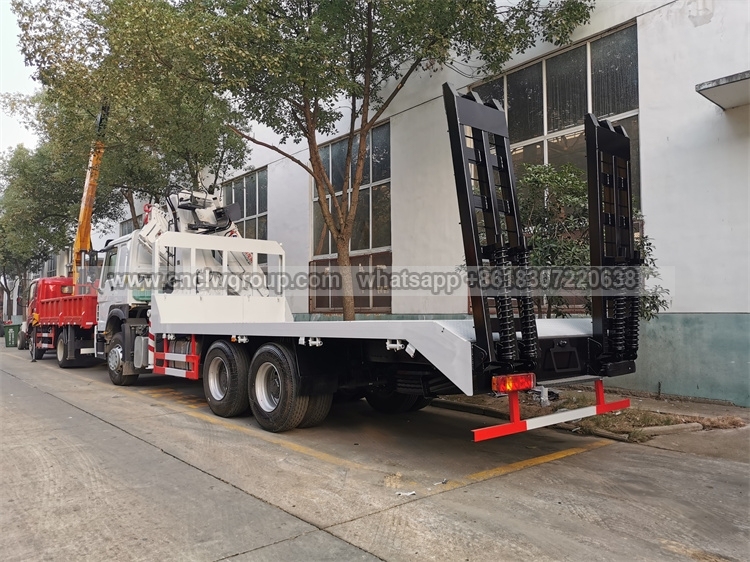

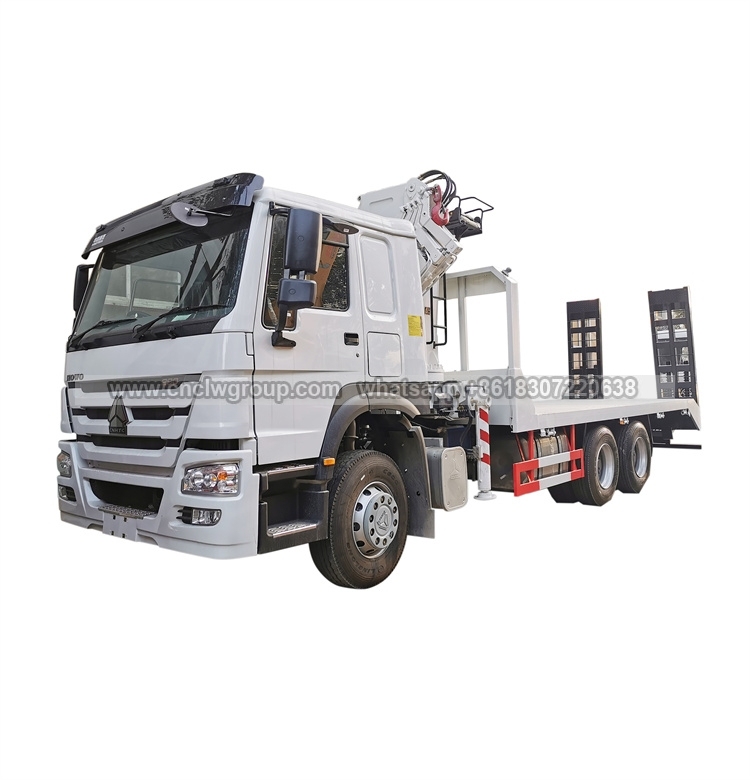

HOWO 6x4 14 Ton Truck Mounted Knuckle Crane

HOWO 6x4 336HP Euro2 truck
Crane capacity: 14 tons crane
Flatbed: 6500x2500mm
Axle Load:  7 tons / 2x 16 Tons
Tir: 10+1 pcs 295/80R22.5 radial tire
Max lifting height: 14.8 meter
Max working radius: 12.3 meter

【Contact Us

Chengli Special Automobile Co.,Ltd


E-mail: [email protected]


Add: South Suburb Chengli Automobile Industry Park,Suizhou City,Hubei Province,China


【Cab Chassis Parameters】

HOWO 6x4 heavy chassis, JW76 new cabin, condition new, 5225+1350mm wheelbase, Sinotruk 336HP Euro2 dieseI engine, 10-speed transmission, 295/80R22.5 radial tires, with one spare tire, 7 Ton front axle, 2x 16 Ton double-mounted wheel reduction rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

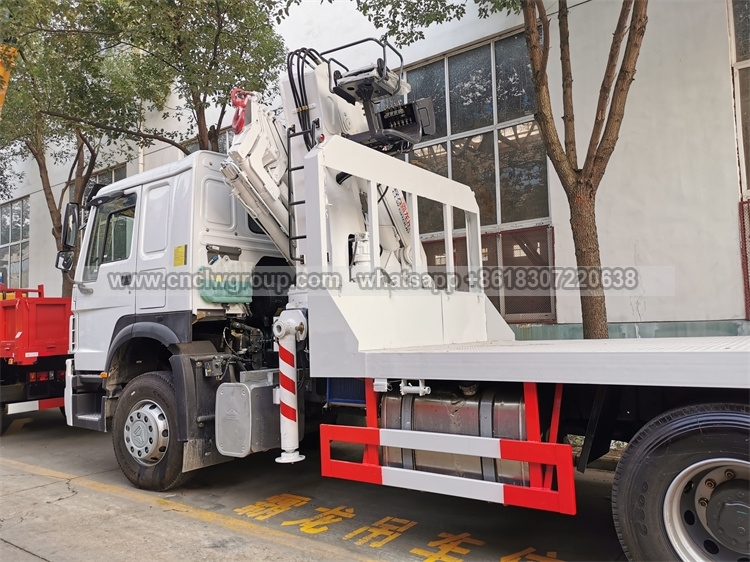

CLW SQZ350A-4 14 tons knuckle arm crane, 5-section arm, max lifting height 14.8m, max working radius 12.3m, 360° slewing, double side operation, with remote throttle, radiator, lighting, leveling bubble, etc.


【Vehicle Basic Parameters】

Model CLW5340JSQZZ2
Chassis brand Sinotruk HOWO
New or Used New
Overall dimension 10450x2500x3850mm
Cargo box 6500x2300x550mm
Gross weight 34000kg
Curb weight 14500kg
Load 20-25 tons
Wheelbase 5225+1350mm
Engine power Sinotruk 336HP
Fuel type DieseI
Transmission HW19710, Manual 10-speed
Brake air brake
Axle load HF7 / ST16 2x 16 tons
Tire 10+1 pcs, 295/80R22.5 tires
Max speed 90km/h


【Crane Parameters】

Model SAZ350A-4
Brand CLW
New or Used New
Max lifting weight 14 tons
Max torque 350 kN.m
Max lifting height 14.8 meters
Max working radius 12.3 meters
Slewing angle 360 degree
Front Outrigger Front hydraulic extension outrigger
Rear Outrigger Hydraulic outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
