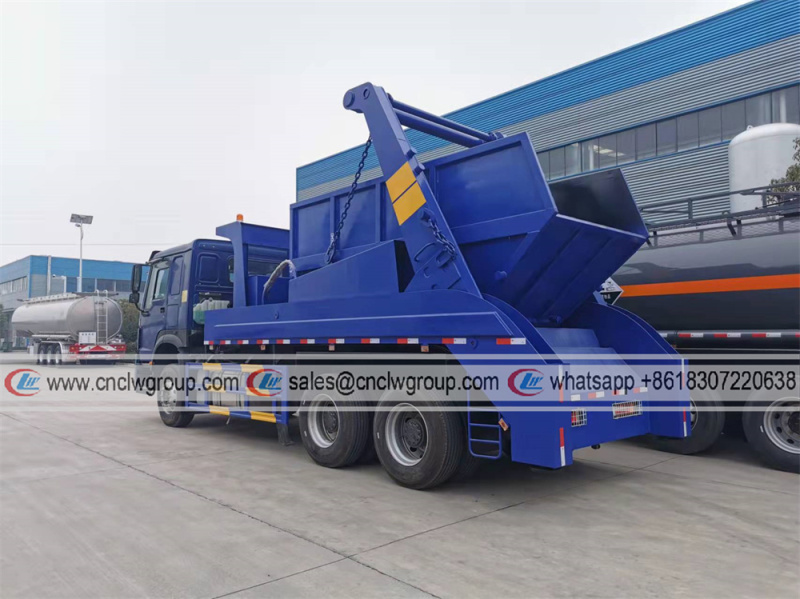

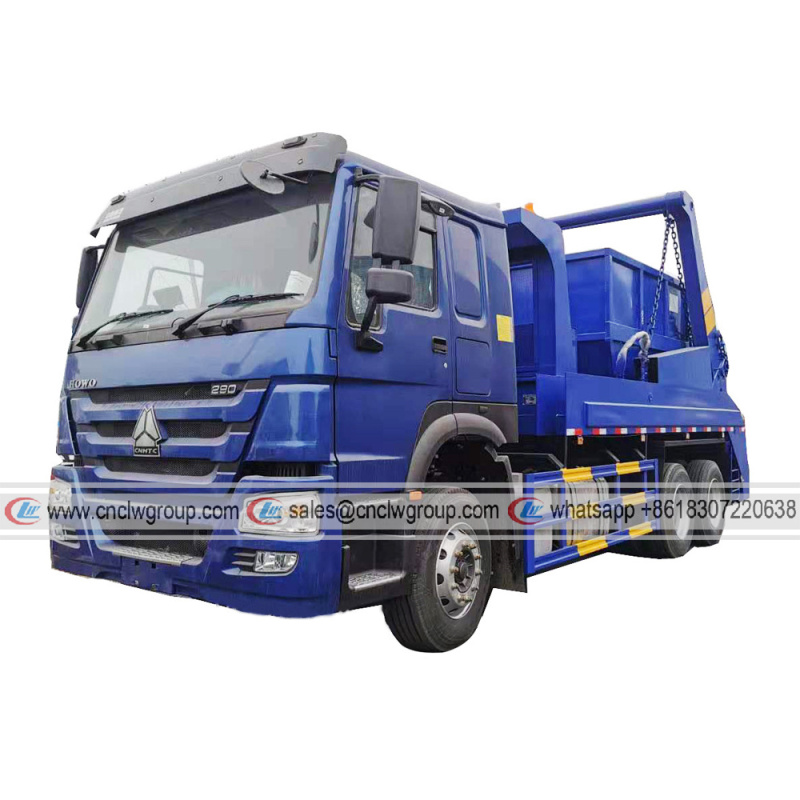

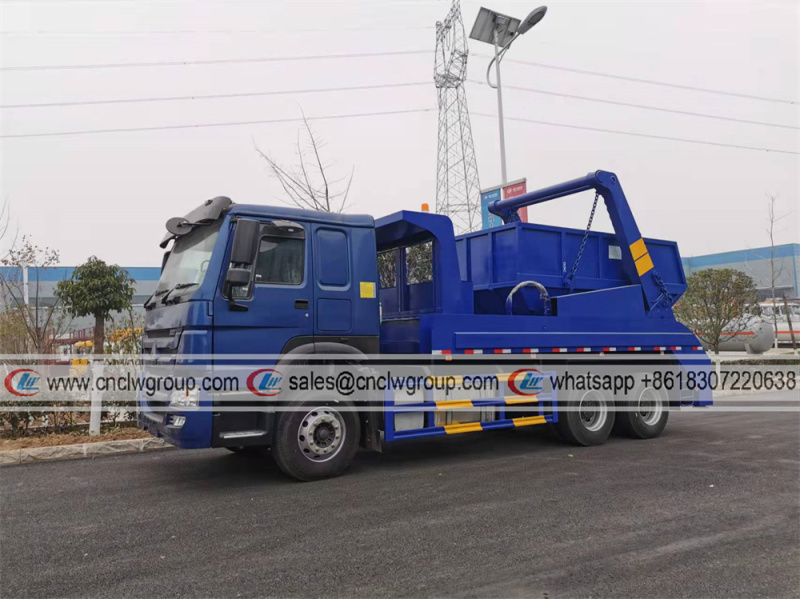

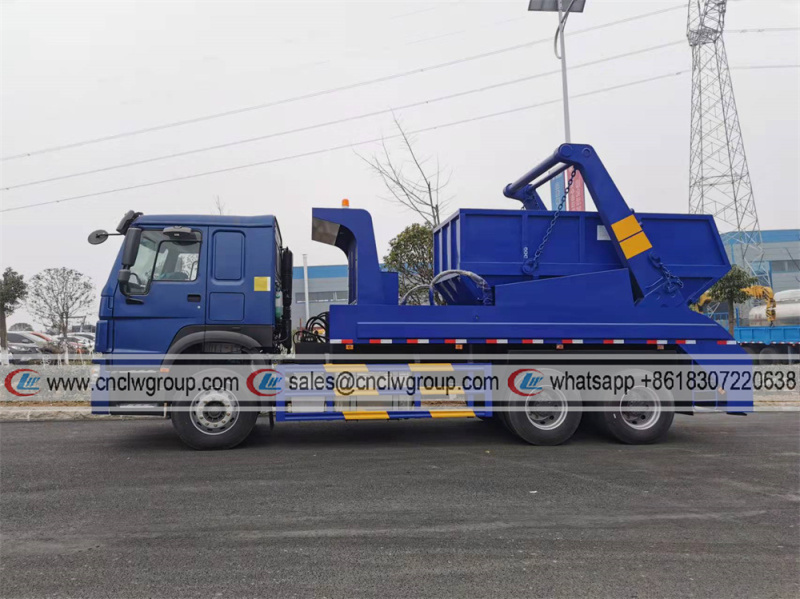

HOWO 6x4 Heavy Skip Loader Garbage Truck

Sinotruk HOWO 6x4 290HP truck
HW 10-speed transmission
10+1 pcs 295/80R22.5 tire
Waste bin: 15m3 volume, 4mm side wall, 5mm bottom plate
Swing arm system: 20 tons heavy duty lifting hydraulic arm system
Description
Description

【Chassis Parameters】

Sinotruk HOWO brand new 6x4 heavy duty cab chassis, 4350+1350mm wheelbase, Sinotruk WD615 290HP Euro2 diesel engine, HW19710 10 speed transmission, air brake, 295/80R22.5 tires, power assist steering, exhaust brake, with origin Air conditioning, with spare tire, power window, etc.



【Upper Structure Parameters】

Heavy duty 25 Tons Skip Loader System, Hydraulic Swing Arm lifting system,  made of reinforced alloy steel main boom, which is resistant to tension and deformation; alloy steel lifting lugs are highly wear-resistant, through-type welding, and high strength;

Hydraulic oil pumps, cylinders, and multi-way valves are all domestic well-known brands, alloy steel swing arm system, safe and stable, reliable performance, and durable.

The dual-cylinder outriggers designed at the rear of the vehicle are located on the left and right sides, respectively, and are controlled by hydraulic multi-way valves, which increase the stability of the vehicle during hoisting operation, and it is safe and reliable.

Waset bin: 12 cbm volume bin, boat shape, 4mm side, 5mm bottom plate, waste bin is full welded, no leakge of water or liquid.



Vehicle Basic Parameters
Model CLW531ZYSZZ2
Chassis brand SINOTRUK HOWO
New or Used brand New
Overall dimension 9850x2500x3650mm
Gross weight 31000kg
Curb weight 16500kg
Load 20 tons
Wheelbase 4350+1350mm
Engine power Sinotruk WD615 290HP Euro2
Fuel type DieseI
Transmission HW19710, 10-speed
Brake air brake, exhaust brake, wheel compression brake
Axle load HF7 / ST16
Tire 10+1 pcs, 295/80R22.5
Max speed 90km/h
Vehicle Superstructure Parameters
Maximum Lifting Weight 20 Tons
Waste Box Volume 12 CBM
Material of Waste Box High strength carbon steel, 4mm side, 5mm bottom
Functions Lifting up waste box, put down waste box, waste dumping unloading
Operation Manual operation levers
Hydraulic System Famous brand



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
