【Chassis Parameters】

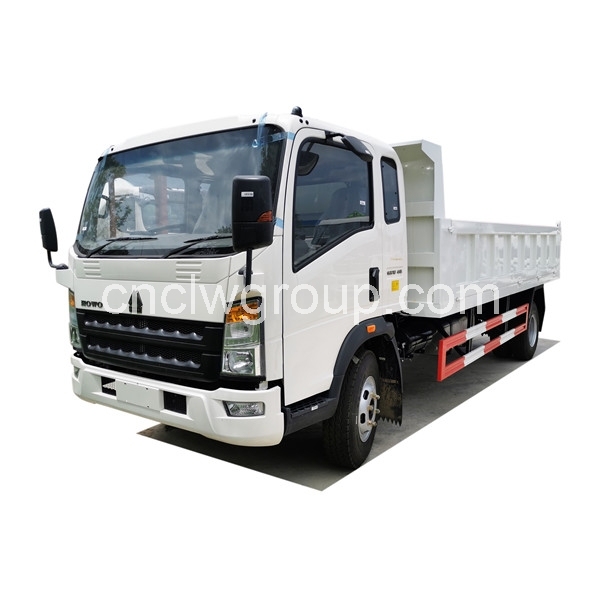

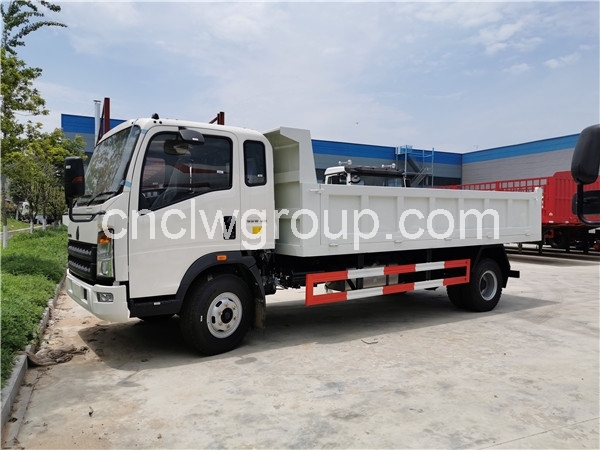

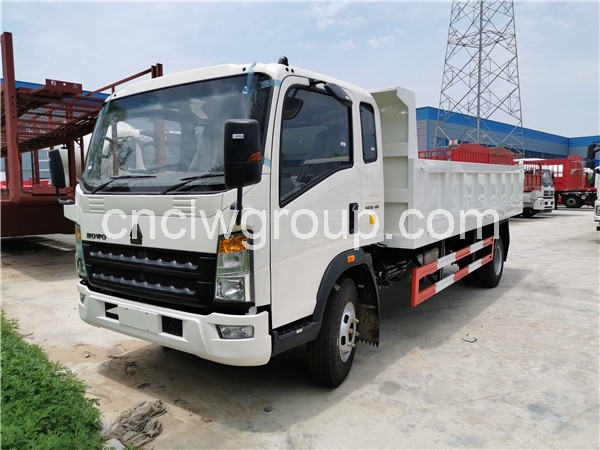

Sinotruk HOWO cab chassis, condition new, L3W wide cabin, 3 seats with half sleeper, 4700mm wheelbase, YUCHAI 140HP Euro 3 dieseI engine, WLY 6-speed transmission, 8.2520 radial tires, with one spare tire, 3.6 Ton front axle, 8 Ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】

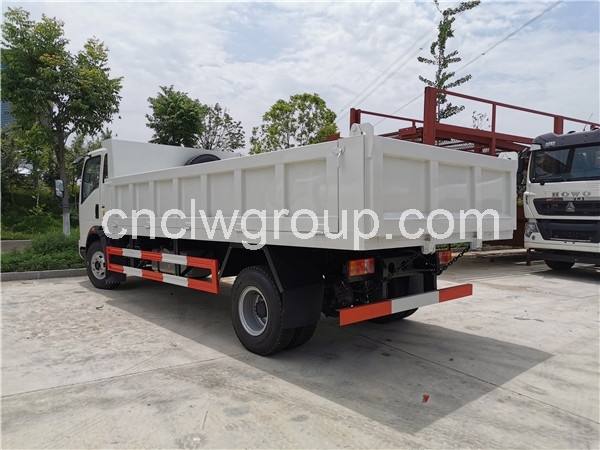

Dump box size 5200x2200x800mm, total 9.15cubic meter box volume; dump box material 3mm side wall, 5mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.
Model | CLW5140ZZXZ3 |
Chassis brand | Sinnotruk HOWO |
Wheeldrive | 4x2, RHD |
New or Used | New |
Overall dimension(mm) | 7600x2350x2850 |
Dump box dimension(mm) | 5200x2200x800 |
Material of dump box | carbon steel, 3mm side, 5mm floor |
Unloading method of dump box |
middle double cylinder lifting jack |
Gross weight(kg) | 12500 |
Curb weight(kg) | 6800 |
Load Weight(kg) | 8 tons |
Wheelbase(mm) | 4700 |
Engine power | YUCHAI 140HP Euro3 |
Fuel type | DieseI |
Transmission | WLY 6- speed |
Brake | Air brake |
Axle load(front/rear) | 3.6/8 tons |
Tire | 6+1 pcs, 8.25R20 radial tires |
Max speed | 90km/h |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
