【Chassis Parameters】

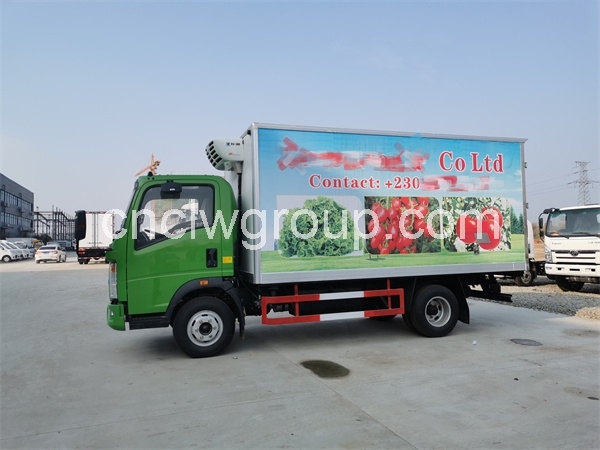

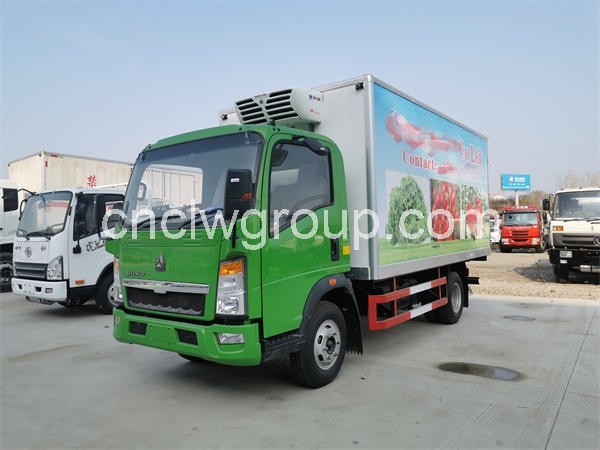

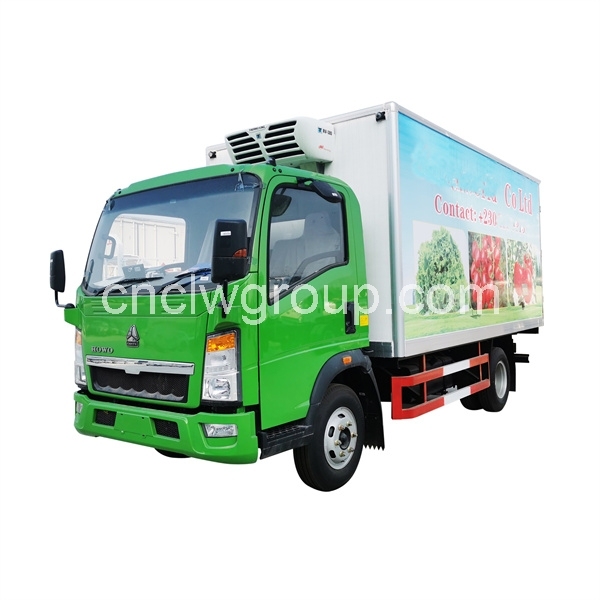

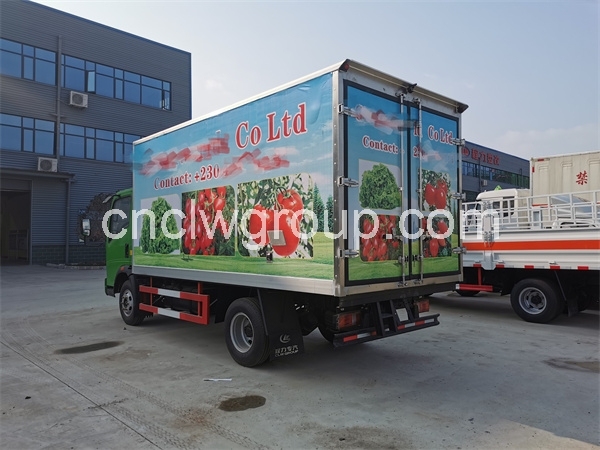

Sinotruk HOWO cab chassis, condition new, single cabin, 3 seats, 3360mm wheelbase, Yunnei 116HP Euro 3 dieseI engine, WLY 6-speed transmission, 7.00R16 radial tires, with one spare tire, 2.5 Ton front axle, 3.5 Ton rear axle, air brake, power assist steering, etc.
Chassis brand options: Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.
【Upper Structure Parameters】
Insulation box size 4150x1900x1900mm, total 15 cubic meter box volume; insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit is American import Thermo King -15℃ capacity.
Refrigeration unit brand options: American import brand Thermo King, Carrier brand; China brand Hanxue, Kauxue, Huatai, Bingli, etc.
| Model | CLW5060XLCZZ2 |
| Chassis brand | Sinnotruk HOWO |
| Wheeldrive | 4x2, RHD |
| New or Used | New |
| Overall dimension(mm) | 5995x2200x2985 |
| Insulation box dimension(mm) | 4150x1900x1900 |
| Material of Insulation box | Sanwitch structure: FRP panel + 80mm insulation + FRP panel |
| Refrigeration unit |
American Thermo King -15℃ |
| Gross weight(kg) | 6850 |
| Curb weight(kg) | 2850 |
| Load Weight(kg) | 4-5 tons |
| Wheelbase(mm) | 3360 |
| Engine power | Yunnei 116HP Euro3 |
| Fuel type | DieseI |
| Transmission | WLY 6- speed |
| Brake | Air brake |
| Axle load(front/rear) | 2.5/3.5 tons |
| Tire | 6+1 pcs, 7.00R16 radial tires |
| Max speed | 90km/h |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
