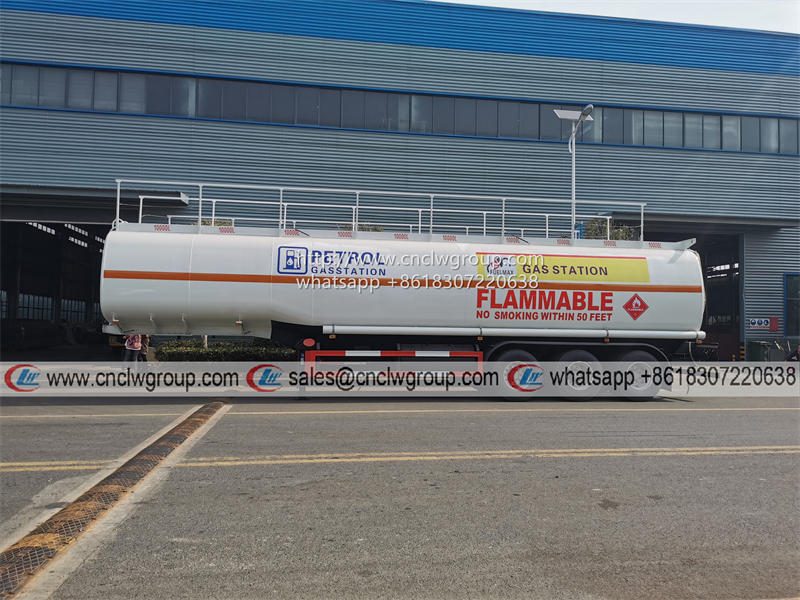

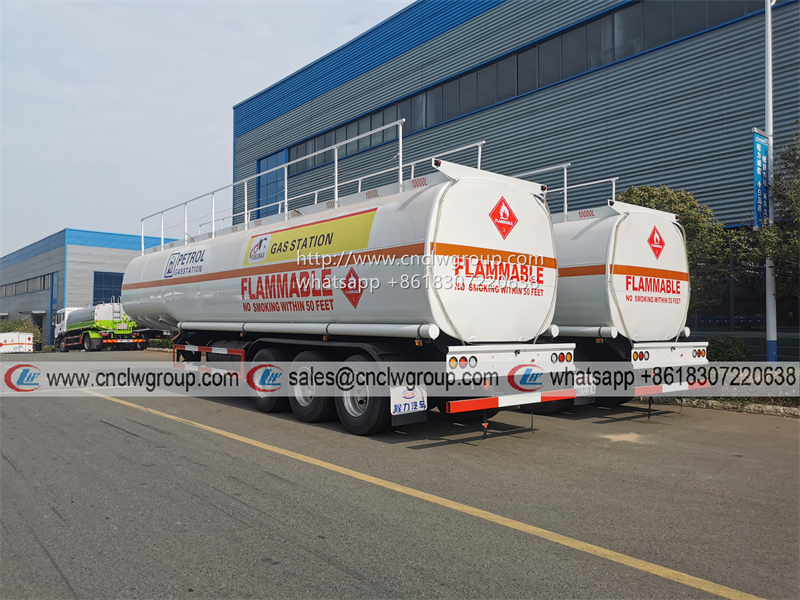

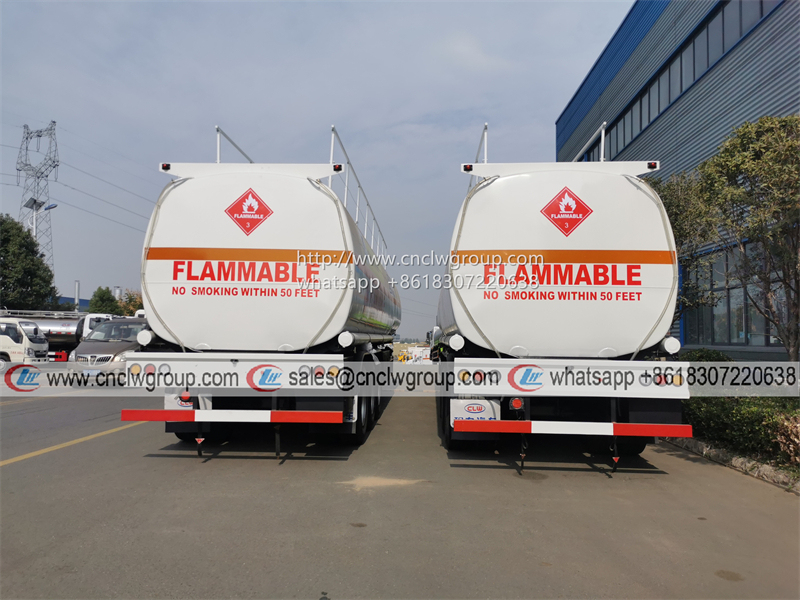

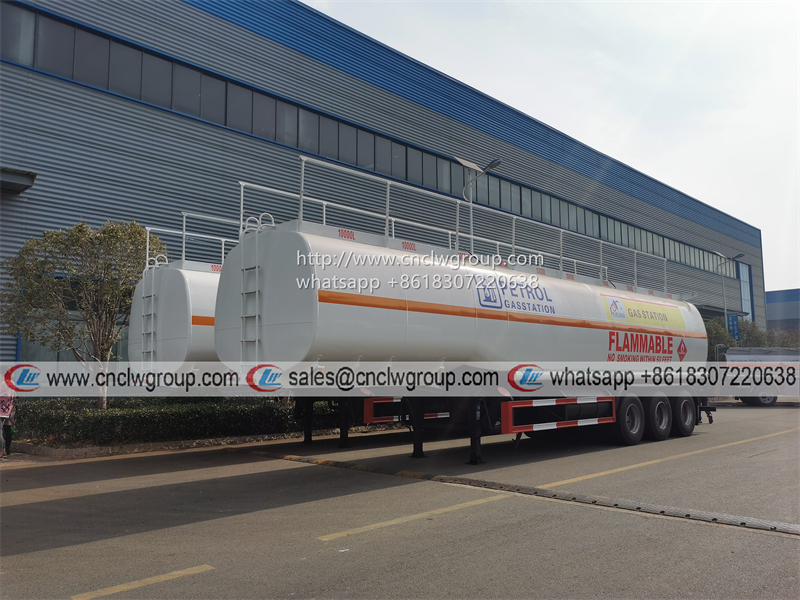

ISO Standard 50000 liter Petrol Fuel Tanker Semi Trailer

- Volume:50000 liter
- Sub-compartments: 5 division compartments
- Medium: petrol,diesel,etc
- Axle: 3 axles, FUWA 13 Tons
- Tire: 12 pcs 12R22.5 tubeless tire
- Whatsapp/Mob:+8618307220638
- Email:[email protected]

【Chassis Parameters】

ISO Standard 50000 liter Petrol Fuel Tanker Semi Trailer, strong I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation, 3 axle semi trailer, FUWA 13 Tons axle, 12 pcs 12R22.5 tubeless tires, JOST or FUWA 90# kingpin, JOST or FUWA 28 Tons support outriggers, rear bumper, tool box, valve box, etc.



ISO Standard 50000 liter Petrol Fuel Tanker Semi Trailer: 45,000 liter tank body, 6mm carbon steel plate made tank body, 7mm carbon steel made tank end plate;  tank has 5 pcs division compartments, per one 10,000 liter volume; with 5 pcs Euro standard manhole covers, 5 pcs aluminum discharge valves, 5 pcs subsea emergency safety valves; other accessories of chengli fuel tanker trailer including top protective handral, rear ladder, fuel hose, hose box, rear bumper, mudguard, side fences, etc.


【Vehicle Basic Parameters】

Main Dimensions

Overall Size


CLW9403GYY 50,000 liter Fuel Tank Trailer

Tare Weight

10000 KGS

Tank Body


Ellipse tank

Total Volume

50,000 liters with 5 independent compartments, each compartment 10,000 liters

Tanker Body Material

6 mm Q235 high tensile strength steel plate

End plate

7 mm Q235 high tensile strength steel plate

Manhole cover

Aluminum alloy manhole cover, DN500mm , 5 pcs, 5 breather valves

Bottom Valve

5 sets of Aluminum Pneumatic Bottom Valve

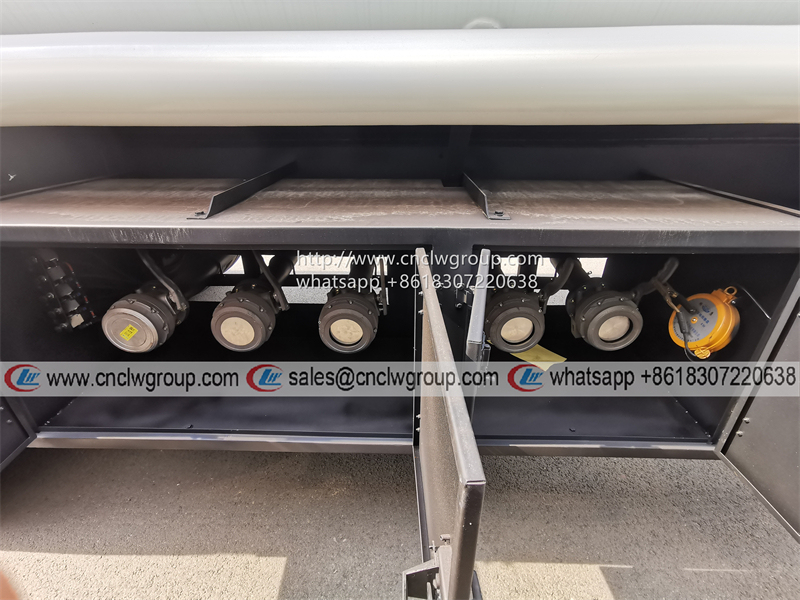

Discharging valve

5 sets 65mm discharging valves

Discharging Pipe

2 pcs


Main Beams

Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;


3*13 Ton FUWA axle

Landing Gear

FUWA brand Two-speed, manual operating, heavy duty landing gear

King Pin

FUWA brand 2” bolt-in king pin


Air suspension

Pneumatic Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 4L air tanks.

Wheel rim

9.0-22.5 wheel rim12 pieces


12R22.5 tubeless tire, 12 pieces


Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint


One standard tool box


【Structures of Chengli Fuel Tank】

Chengli produced carbon steel fuel tank trailer has over 17 years experiences on the advanced manufacture process. The main components of Chengli CLW fuel tanker trailer including carbon steel Q235 made tank body, steel under auxiliary beam, aluminum API discharge valves, subsea emergeny safety valves, aluminum Euro standard manhole covers, oil vapor recovery system, anti-overflow rod, pneumatic control switch, anti-skid walk way on top of tank, protective handrails, aluminum made ladder,handrail, protective fence, rear bumper, mudguard, etc.  Now Chengli oil tanker semi trailer is one of the best in the industry on its quality, designs, performances and price.  Contact us for more details now!


【Special Features of Chengli Fuel Tank】

Standard configuration of Chengli CLW Fuel Tank Trailer :

Tank volume of 40 cubic to 52 cubic meters, Medium: Diesel, Gasoline

1. The tank body is made of 5182 aluminum-magnesium alloy;

2. The tank head is 6mm, the cylinder is 6mm, the anti-wave board is 5mm, and the silo board is 6mm;

3. 13-Ton FUWA axle is used for axles, with 26 tons brakes with ABS;

4. The tire adopts: 12.00 tubeless tire with 12 ordinary steel rims;

5. Adopt Multi Leafs Spring steel plate type mechanical suspension;

6. The sub-beam of aluminum alloy fuel tank trailer adopts high-strength steel;

7. Aluminum alloy complete set of European standard (including two European standard tank ports, one subsea valve, one set of oil and gas recovery, and download oil);

8. Accessories: rear bumper, movable guardrail, a tool box, a European standard export box, and the side guardrail are all made of aluminum alloy;

9. 1 600L galvanized water tank, 2 spare tire racks, 28 ton outriggers, 2 8kg fire extinguishers, 3 notice boards.

10. Imported cyan lacquer on natural surface, 3M reflective tape


Optional configuration:

1. Sub-warehouse: without European standard sub-warehouse, with European standard sub-warehouse

2. Axle: BPW bridge or Huajin bridge can be selected

3. Air suspension: optional aluminum alloy sub-beam

      a, Fuhua Air Suspension

      b, BPW air suspension

      c, Huajin Air Suspension

4. Tires: optional double money, Bridgestone, triangle

5. Steel ring: ordinary aluminum alloy steel ring, Zhengxing aluminum alloy steel ring can be selected

6. Outrigger: optional Yost, Fuhua

7. Water tank: aluminum alloy water tank with water tank installed on the top of the tank

8. Discharge port: increase single outlet and double outlet (subsea valve, pipeline, discharge assembly, outlet box)

9, optional pneumatic guardrail


【Manufacture Process of Fuel Tank Body】

A quality Chengli made aluminum alloy fuel tank trailer is after design, cutting, welding, rolling, splicing, X-ray test, painting and then finish.  Every step is the best quality control by our fuel tank manufacturing workers.


【Manufacture Process of Chengli Fuel Tank】

We can provide different brand tractor head for our company made aluminum alloy fuel tank semi trailer, Dongfeng tractor head, Howo tractor head, SHACMAN tractor head, SAIC IVECO tractor head, FOTON tractor head, ISUZU tractor head, Beiben tractor head, FAW tractor head, etc.  Please directly contact us for its specifications and price!

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so
