ISUZU 10-15 Tons Excavator Flatbed Truck

- ISUZU FVR 10-15 tons Excavator Flatbed Truck
- ISUZU Qingling 240HP Diesel engine
- 6+1 pcs 295/80R22.5 vacuum radial tires
- Flat bed dimension: 6000x2500(mm)
- Front lifting outrigger: 20 tons hydraulic
- Spring ladder: Mechanical or Hydraulic

【Chassis Parameters】

ISUZU FVR 10-15 tons excavator self loading flatbed truck adapts ISUZU FVR heavy duty dedicated chassis, condition new, 3 seats with a sleeper, 4500mm wheelbase, ISUZU 240HP dieseI engine, ISUZU 6-speed transmission, 295/80R22.5 radial tires, with one spare tire, 6.3 ton front axle, 13 ton rear axle, air brake, power assist steering, with air conditioning, power window, central lock,etc.

【Upper Structure Parameters】

ISUZU FVR 10-15 tons excavator self loading flatbed truck, with hydraulic lift outriggers leg installed behind cabin, 2 x 10 tons, 15 tons lift capacity, which can be used to lift the flatbed truck to make a ramp of the flat deck bed, for a easy climb or loading onboard for excavators or cars or machines. It is mainly used for carrying excavator, bulldozer, loaders, road rollers, large agricultural machinery, etc. Traditional flatbed truck with two pcs ladders for climbing up, but is very dangerous and for some crawler-type or large machinery is prone to rollover due to the corners of the platform and ladder when getting on the vehicle. Chengli CLW produced self loading flatbed truck, installed a heavy lifting front outrigger at front of flatbed, behind cabin,  it can lifting the truck to give the flat deck plate a tilt angle, so that any truck or machinery can easily climb onto the flat bed,  and on the front of the deck bed, can install hydraulic winch, 5 tons, 8 tons, 10 tons, 20 tons to pull up fault vehicles or machines.


Model CLW5180TPBQ5
Chassis brand ISUZU
New or Used New
Overall dimension(mm) 8450x2500x2980
Flatbed dimension(mm) 6000x2500
Hydraulic lift outriggers 15 ton, 20 tons, 30 tons, 40 tons lifting capacity for optional
Gross weight 18000kg
Curb weight 8600kg
Load 10-15 tons
Wheelbase(mm) 4500
Engine power ISUZU 240HP engine
Fuel type DieseI
Transmission ISUZU 6 - speed
Brake Full air brake, ABS
Axle load 6300/13000(kg)
Tire 6+1 pcs, 295/80R22.5 tires
Max speed 90km/h

- Hydraulic lift outriggers: 15 ton, 20 tons, 30 tons, 40 tons lifting capacity for optional

- Material: 6mm deck plate, under supported with 100x100mm square tube made frame

- Rear ladder: 2 pcs mechanical spring ladders(can choose hydraulic ladders)

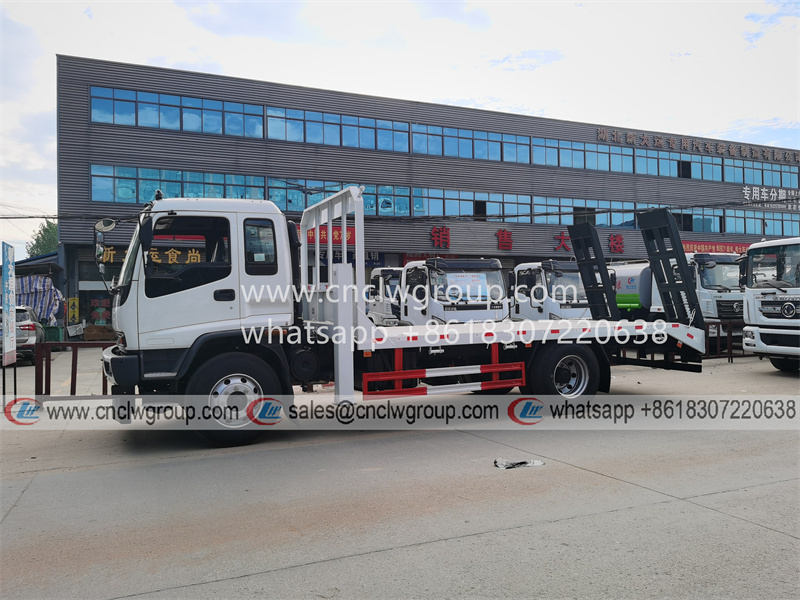

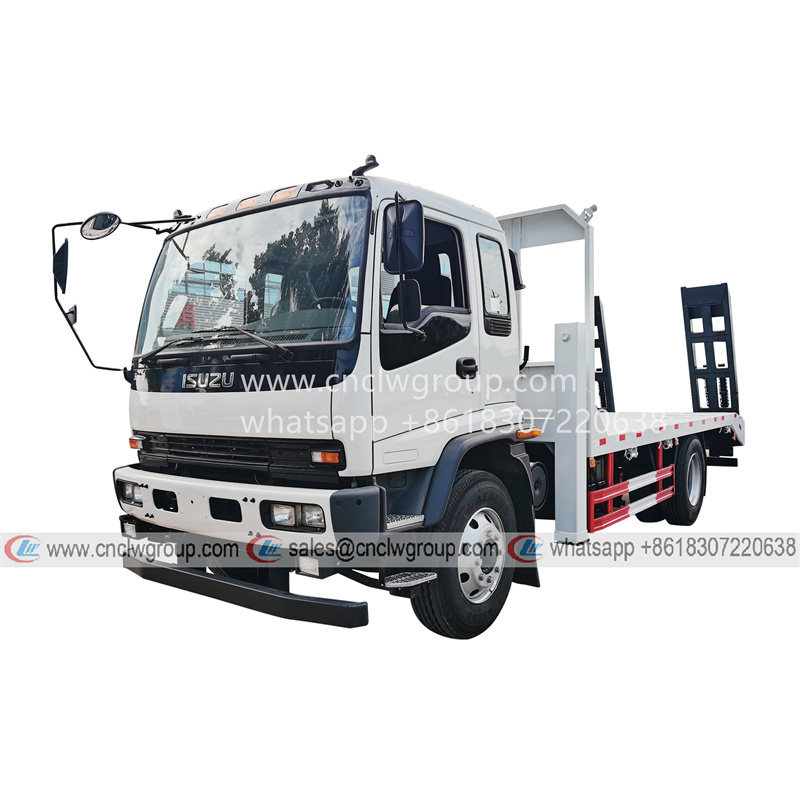

[Multi-directional Images]

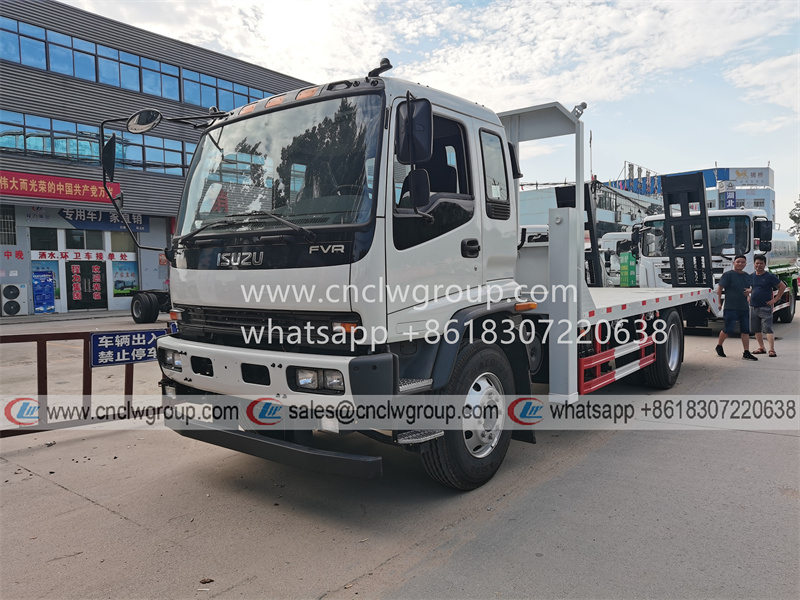

[Pictures of Test】 ISUZU Self Loading Truck]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
