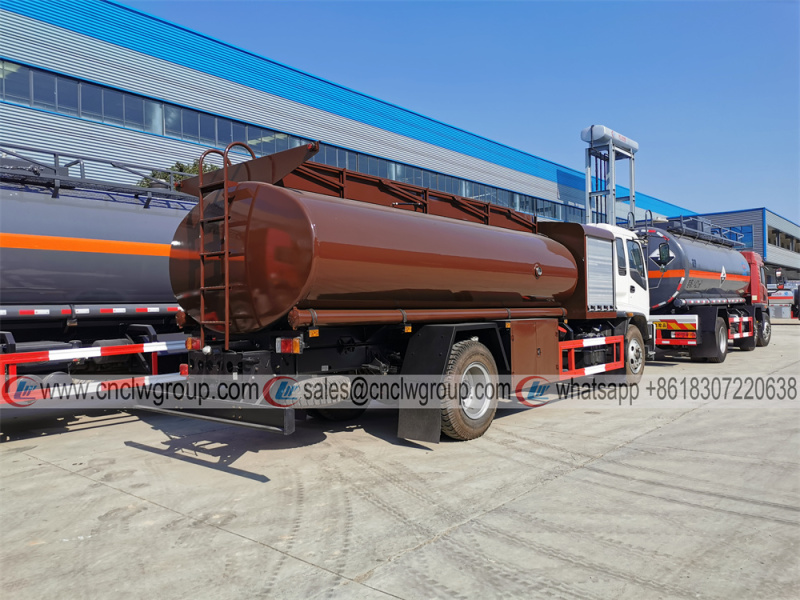

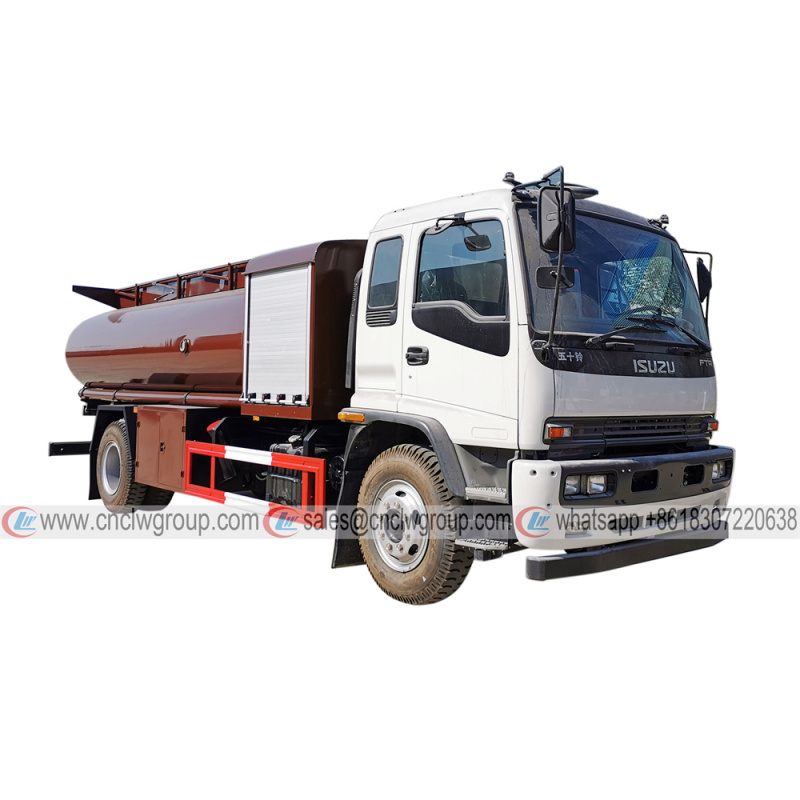

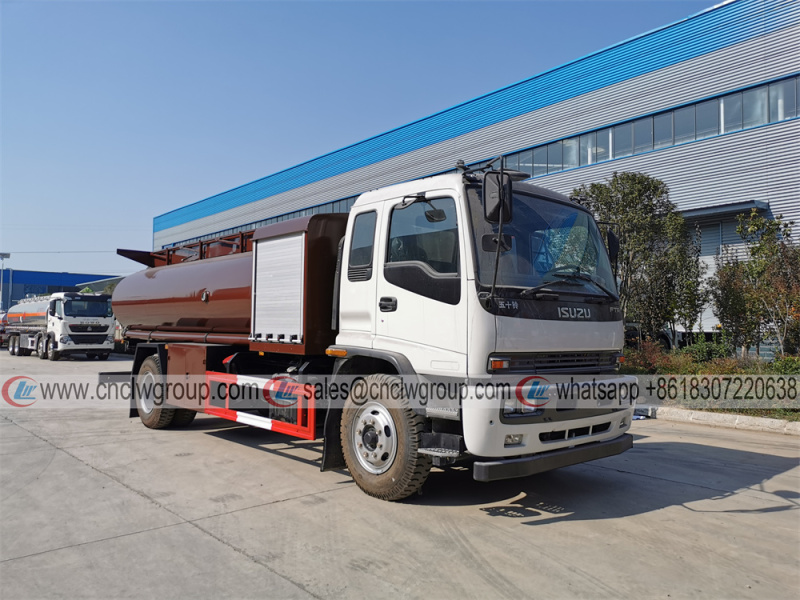

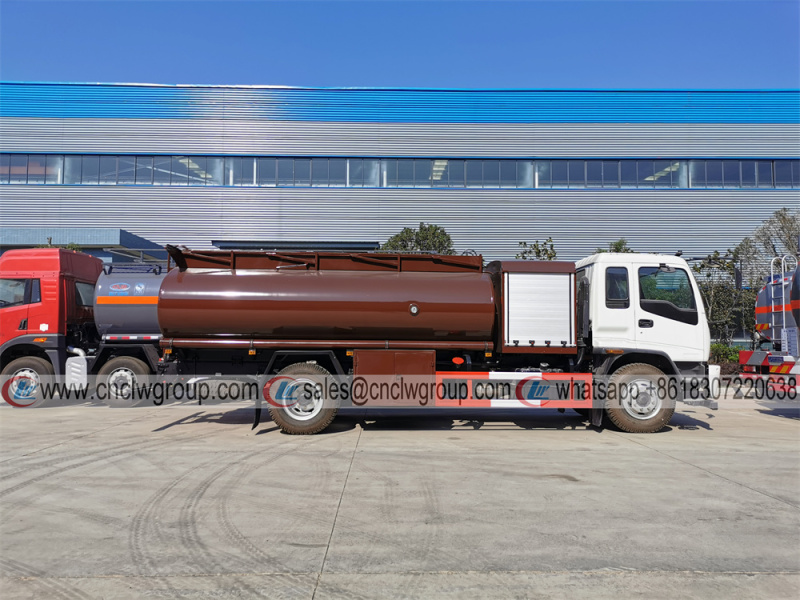

ISUZU 10000 liter Aircraft Refueler Truck

ISUZU 10,000 liter Aircraft Refueler Truck
Engine: ISUZU 205HP Diesel
Tir: 6+1 pcs 10.00R20 radial tire
Fuel dispenser unit: 60~80L/min refilling flow, with 15m thick refueling hose
Valve: Special aircraft refilling system with jet fuel filter devices
Description
Description

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp/Wechat: +8618307220638

E-mail: [email protected]

Http://www.cnclwgroup.com

Add: South Suburb Chengli Automobile Industry Park, Suizhou City, Hubei Province, China



【Chassis Parameters】

Chassis of ISUZU Aircraft Refueling Truck: ISUZU 4x2 chassis, condition new, 4500mm wheelbase, ISUZU 4HK1 205HP Euro5 diesel engine, MLD 6-speed transmission, 10.00R20 radial tires, with one spare tire, 6.3 ton front axle, 13 ton rear axle, air brake, power assist steering, air brake, exhaust pipe front mounted, with air conditioning, etc.



【Upper Structure Parameters】

● Features of aircraft refueling truck

The aircraft refueling truck is basically the same as the ordinary refueling truck in general, but there are some special requirements in performance and structure.

1. High requirements for refueling pressure stability. For this purpose, add a pressure regulator, a pressure regulator and a pressure filling gauge to the filling line.

2. The cleanliness of the oil is high. High-performance filter separators should be used on the oil circuit. Tanks and pipes must be made of aluminum alloys.

3. Absolutely guarantee the safety of refueling. Antistatic devices, interlocking control systems, electrical explosion-proof devices, fire extinguishers, etc. should be installed.

4. Equipped with high-precision, large-flow meter.

5. The total capacity of the oil tank is large, and the refueling of the aircraft should be completed at one time. For example, the capacity of WG series tank tanker is 10,000, 15,000, 18,000, 20,000, 22,000, 45,000L, and the capacity is dozens or even hundreds of times that of ordinary truck fuel tanks.



【Vehicle Basic Parameters】

Vehicle Basic Specifications
Vehicle Model CLW5160GJYQ5 Volume of Tanker 10000 liter
Chassis brand ISUZU 4x2 New or Used  Condition new
Overall dimension 8350x2500x2980mm Cargo Box Dimension  -
Gross weight 16000 kg Rated Weight  7400
Curb weight 8600 kg Wheelbase 4500 mm
Axle No. 2 Cab Seat No. 3 people
Axle Load 6300/13000 kg Fuel Type Diesel
Engine ISUZU 4HK1 205HP Euro5 Steering System LHD, power aissist steering
Transmission Manual 6-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 10.00R20 radial tires
Fuel Tank 200 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Type Aircraft refueling specially Volume of Tanker 10,000 liter
Medium Aviation kerosene Material of Tanker Aluminum alloy
 Manhole 1 pcs, aluminum alloy manhole cover Fuel Discharge Valve

1 pcs

 Safety Valve Bottom emergency cut off valve, breathing valve, anti-overflow probe  Filter Separator

1 unit aviation jet fuel fitler separator

Rated Flow: 50m³/h

Joint Valve

HYJ63 joint valve Filter separator outlet sampling valve

1 pcs

Flow Meter

1 pcs Level Guage

1 pcs

Pump

Pump inlet and pump outlet, aviation kerosene dedicated aluminum alloy fuel pump

Refueling Device

Refueling nozzle with 15 meter thick hose reel

Refueling Device Compartment

Safety System

1. Foot emergency cut-off valve;

2. Breathing valve;

3. Anti-overflow probe;

4. Static conductive wire reel;

5. Fire extinguisher.
