【Chassis Parameters】
ISUZU 600P cab chassis, condition new, 3 seats, 3360mm wheelbase, ISUZU 130HP Euro 5 dieseI engine, ISUZU 5-speed transmission, 7.00R16 radial tires, with one spare tire, ISUZU 2.5 ton front axle, ISUZU 4.8 ton rear axle, hydraulic brake, ABS, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】
Chengli Tow Truck: 3 tons tow capacity, 4 tons hydraulic winch, 21m steel rope; flatbed length 4.2 meters with 1 meters hydraulic tailplate, width 2.3 meters; double side linkage operation; full hydraulic folding tailplate; one set(2 pcs) auxiliary wheeler, 4 pcs tight strips, engineering long light with siren, louder speaker,etc.
| Model | CLW5060TQZQ5 |
| Chassis brand | ISUZU |
| New or Used | New |
| Overall dimension(mm) | 5995x2300x2500 |
| Gross weight(kg) | 6500 |
| Curb weight(kg) | 3250 |
| Load Weight(kg) | 3250 |
| Wheelbase(mm) | 3360 |
| Engine power | ISUZU 130HP Euro5 |
| Fuel type | DieseI |
| Transmission | ISUZU 5 - speed |
| Brake | Hydraulic brake, ABS |
| Axle load(front/rear) | ISUZU 2.5 Tons/ 4.8 Tons |
| Tire | 6+1 pcs, 7.00R16 radial tires |
| Max speed | 90km/h |
| Superstructure | 3 tons tow capacity, 4 tons hydraulic winch, 21m steel rope; flatbed length 4.2 meters with 1 meters hydraulic tailplate, width 2.3 meters; double side linkage operation; full hydraulic folding tailplate; one set(2 pcs) auxiliary wheeler, 4 pcs tight strips, engineering long light with siren, louder speaker,etc. |
| Performance |
Rescue car number at once: 2 cars Flatbed working size: 5200x2300mm Rear tow boom vertical lifting weight: 3 tons Rear tow boom horizontal draging force: 4-5 tons Tilting angle with ground: 8 ~ 10° |

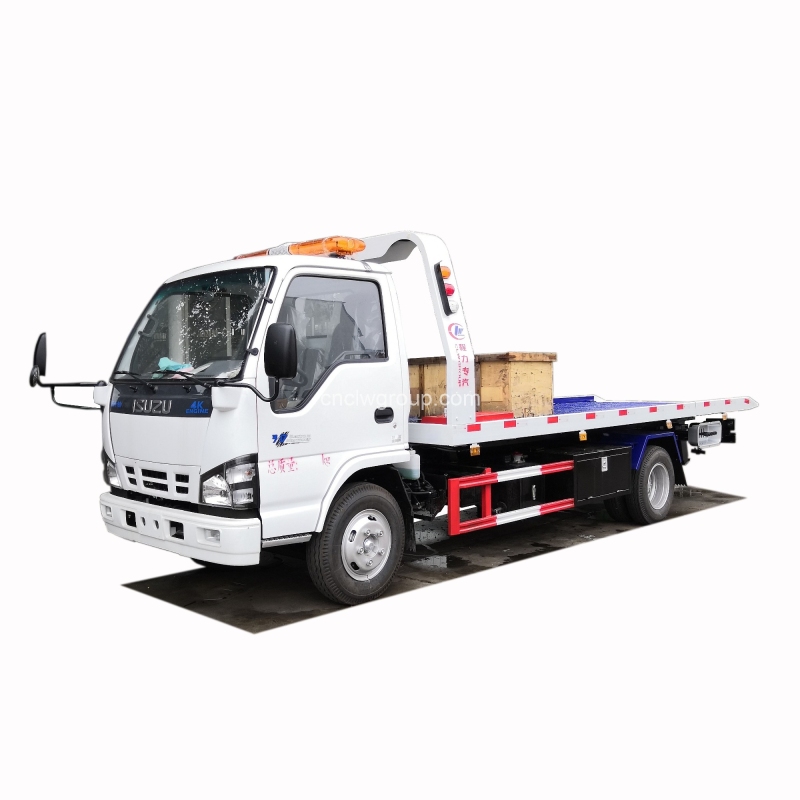

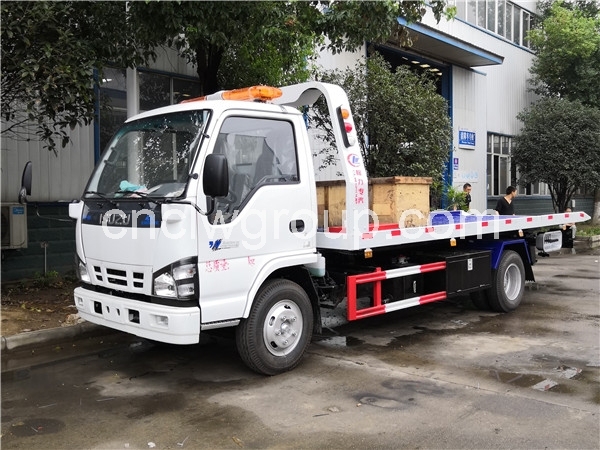

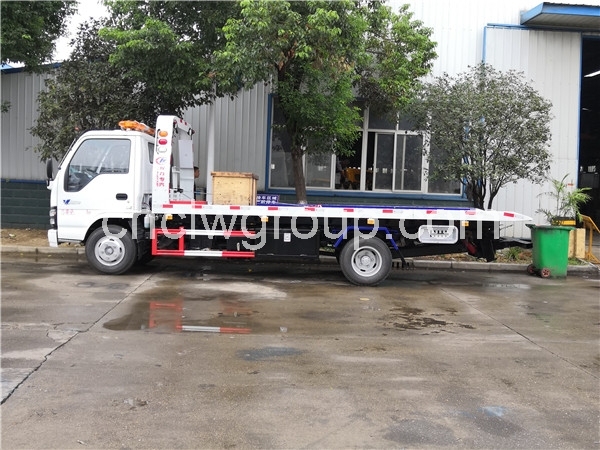

[Multi-directional Images]
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
