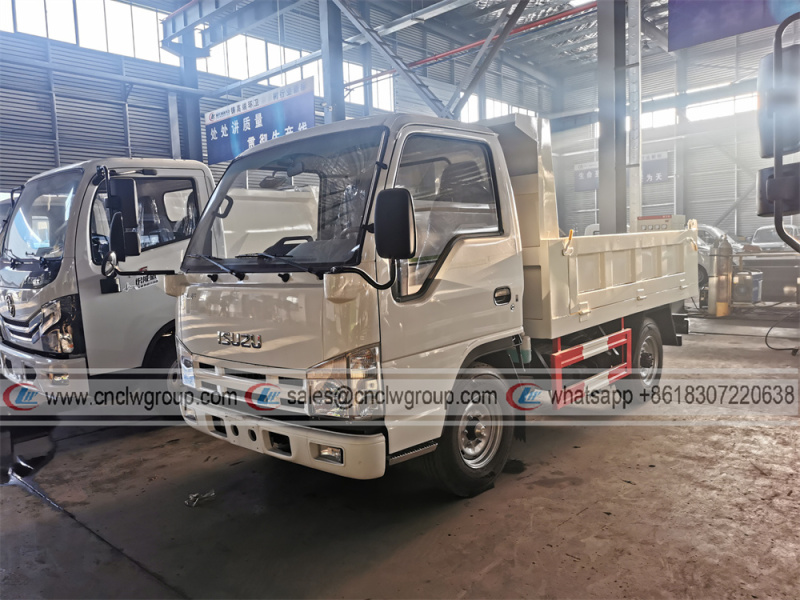

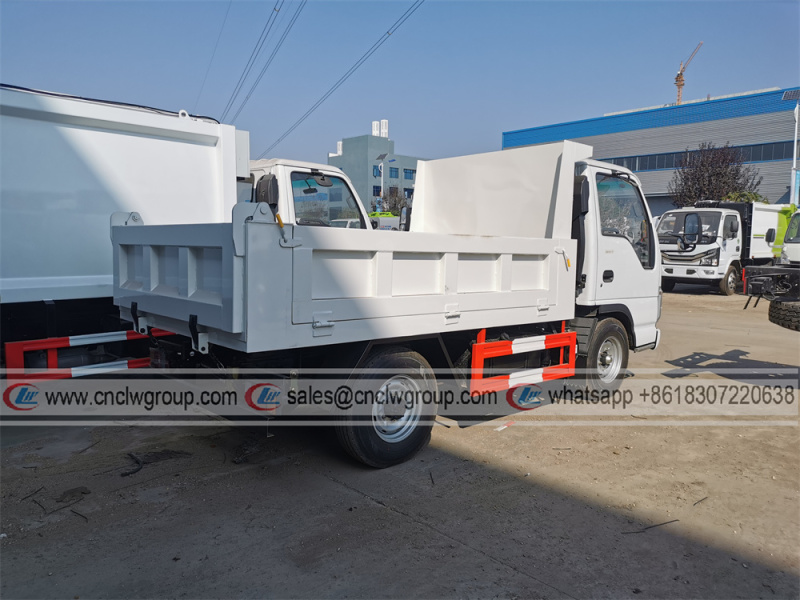

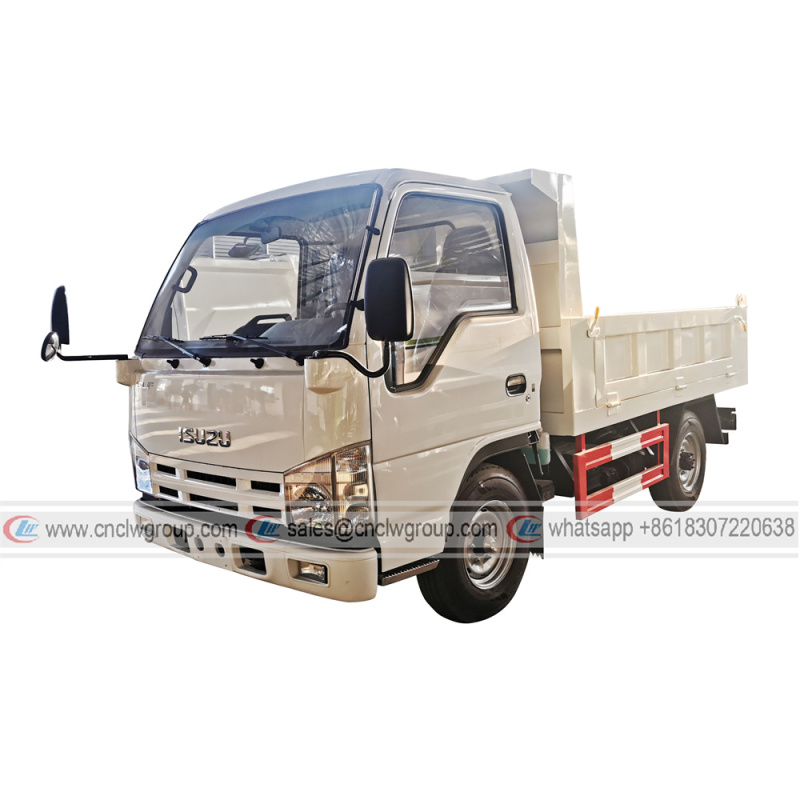

ISUZU 4W 1 Ton Micro Dumper Truck

ISUZU 4-wheel Micro Dump Truck
Engine: ISUZU 98HP diesel engine
Tir: 6+1 pcs 7.00-15 radial tire
Load Capacity: 3 tons
Dump Box: 2600x1800x400mm
Rear dumping: middle double hydraulic cylinders

【Chassis Parameters】

ISUZU Elf 4 Wheeler(Front 2 Wheel, Rear 2 Wheel) chassis, single cabin, condition new, 2490mm wheelbase, ISUZU 98HP diesel engine, MSB-5 manual 5-speed transmission, Single-Rear Tire, 7.00-15 tires, with one spare tire, 2.0 ton front axle, 4.0 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.


【Upper Structure Parameters】

Dump box size 2650x1900x400mm;  dump box material 3mm side wall, 4mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.

Vehicle Basic Specifications
Model CLW5040ZZXQ4
Chassis brand ISUZU
Wheeldrive 4x2 (single rear tire)
New or Used New
Overall dimension(mm) 4680x2020x2200
Dump box dimension(mm) 2650x1900x400mm
Gross weight(kg) 3990
Curb weight(kg) 2860
Load Weight(kg) 1030
Wheelbase(mm) 2490
Engine power ISUZU 4KH1 98HP
Fuel type DieseI
Transmission Manual 5- speed
Brake Air brake
Axle load(front/rear) 2.0 tons / 4.0 tons
Tire (single rear tire) 4+1 pcs, 7.00-15 tires
Max speed 90km/h
Vehicle Superstructure Parameters
Dump Box Dimension 2650x1900x400mm
Material High strengthen carbon steel, 3mm side, 4mm bottom
Unloading Method of Dump Box Double cylinders middle lifting
Maximum Dumping Angle ≤ 45°
Back Door Hinge structure , auto open when dumping
Side Opening Door One(1)


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
